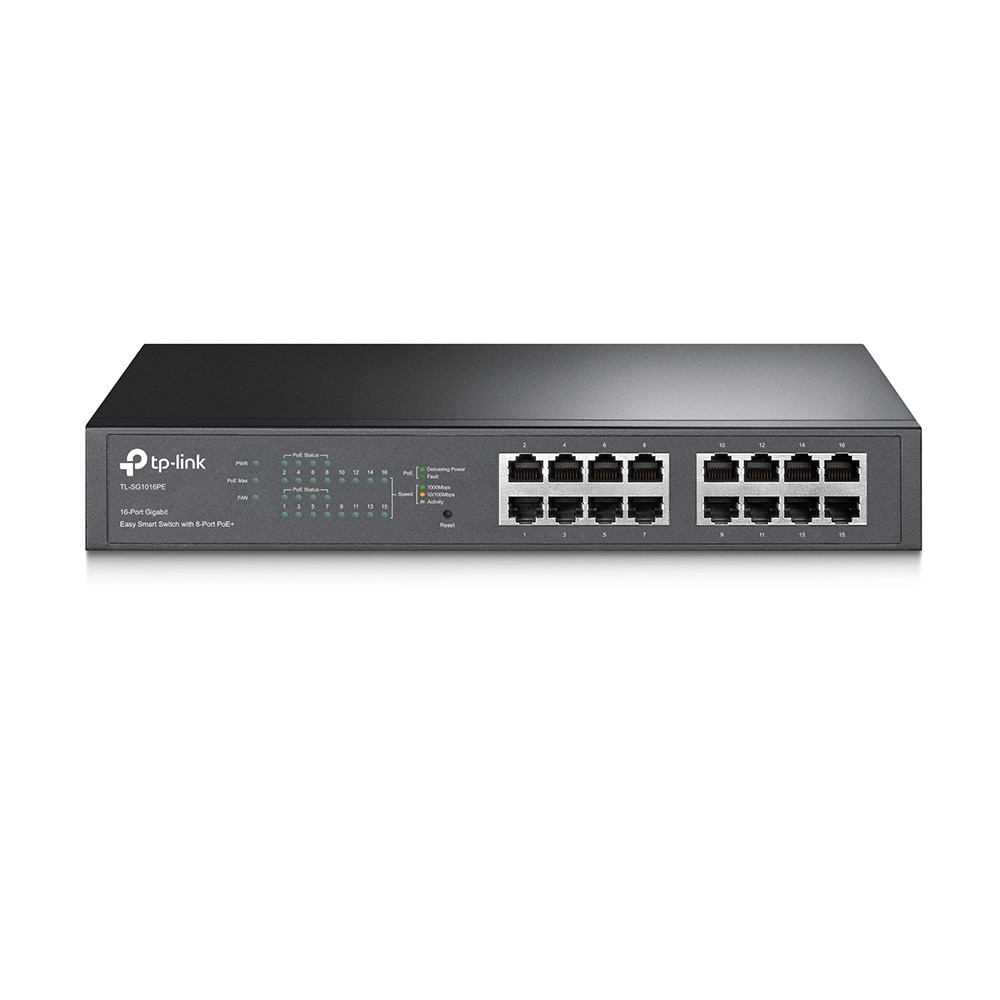

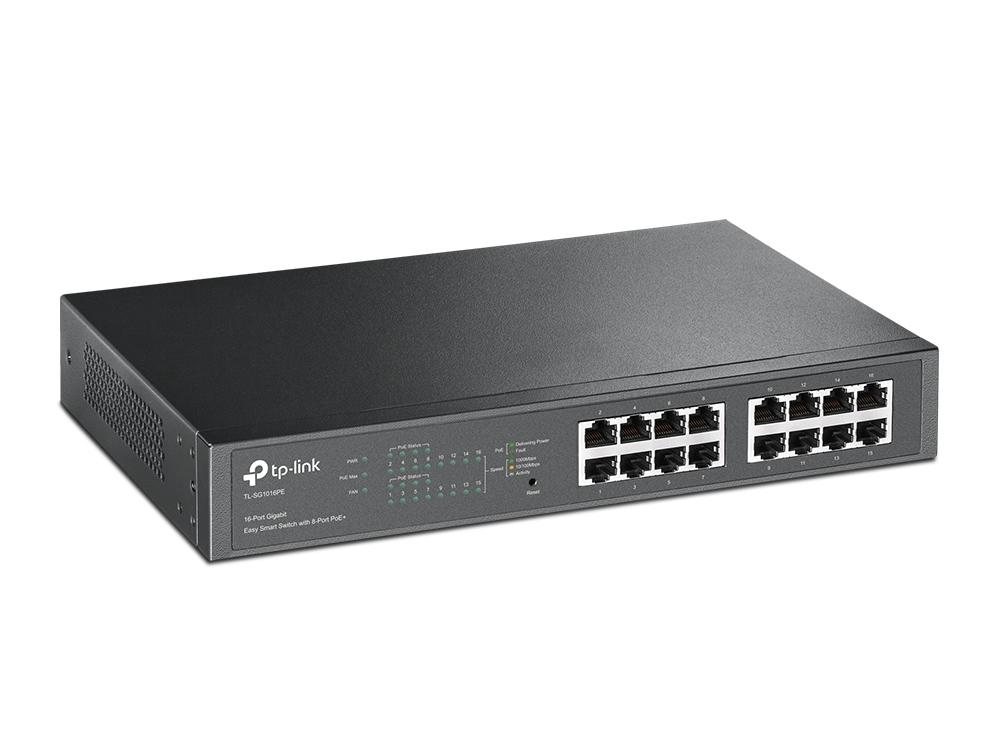

TP-Link 16-Port Gigabit Easy Smart PoE Switch with 8-Port PoE+
|Standards and Protocols||IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p|
|Interface|| 16 10/100/1000Mbps RJ45 Ports |
AUTO Negotiation/AUTO MDI/MDIX
|Network Media|| 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
EIA/TIA-568 100O STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)

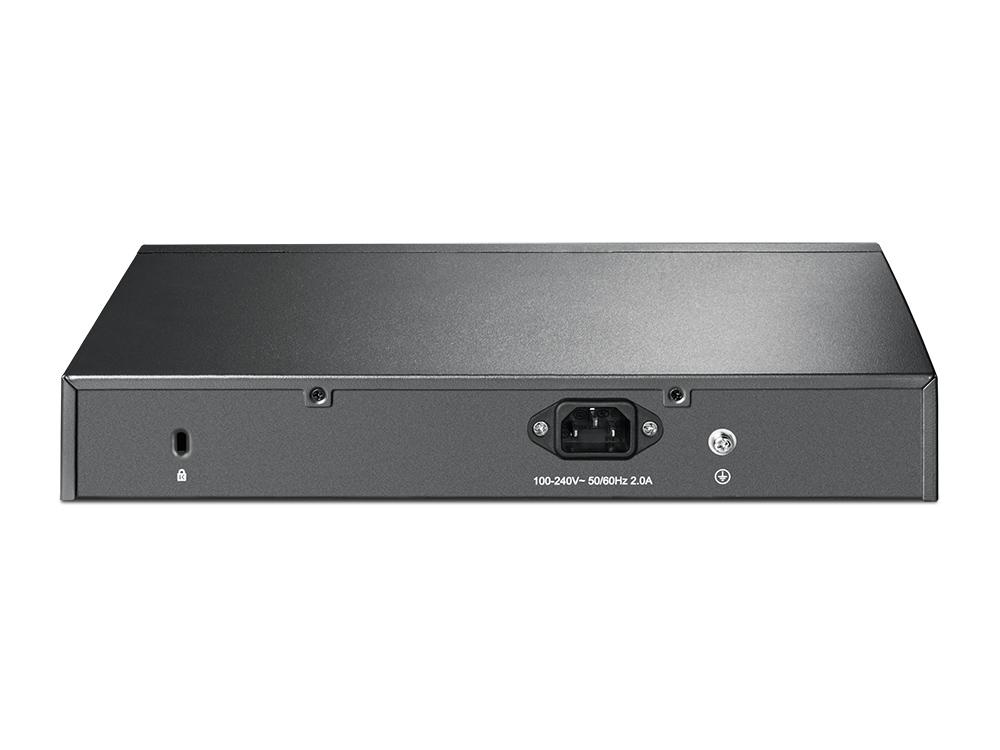

|Power Supply||100-240VAC, 50/60Hz|
|Power Consumption||Maximum: 124.4W (220V/50Hz)|
|PoE Ports (RJ45)||Standard: 802.3 at compliant |
PoE Ports: Port 1- Port 8
PoE Power Budget: 110W
|Dimensions ( W x D x H )||11.6*7.1*1.7 in. (294*180*44 mm)|
|Packet Forwarding Rate||23.8Mbps|
|MAC Address Table||8K|
|Packet Buffer Memory||4.1Mbit|
|Quality of Service||Support Port-Based/802.1p/DSCP priority Support 4 priority queues |
|L2 Features|| IGMP Snooping V1/V2/V3 |
|VLAN||Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN|
|Management||Web-based GUI Easy Smart Configuration Utility|
|Certification||FCC, CE, RoHS|
|System Requirements||Microsoft® Windows® for running Utility|
|Environment||Operating Temperature: 0C~40C (32F~104F); Storage Temperature: -40C~70C (-40F~158F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing|
16-Port Gigabit Easy Smart PoE Switch with 8-Port PoE+
What This Product Does
The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 110W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.
How This Product Works
8 ports of TL-SG1016PE support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones.
TL-SG1016PE has a priority function which helps protect the system when its power is overloaded. If all PoE+ devices’ power consumption is greater than or equal to 110W, a priority will be arranged among the 16 PoE+ ports, at which point the system will cut off the power of the lowest-priority port.
Port Priority Function
PoE power priority is arranged along with the port number. The port 1 has the highest priority and the port 8 has the lowest priority. This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2, 3, 4, and 5 are using 30w (maximum power per port is 30W), the system power is 110w in total (PoE max LED will be on if all PoE PDs power consumption is more than 110W). If there is an additional PD inserted to Port 4 with 20w then the system will cut off Port 5 power supply to protect the system, this means Port 1, 2, 3, will use 90w, and Port 4 will use 20w, and no power will be supplied to Port 5.
Easy To Use
TL-SG1016PE is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-LINK TL-SG1016PE 16-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.
- 16 10/100/1000Mbps RJ45 ports
- Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
- Works with IEEE 802.3af/at compliant devices, expanding home and office networks
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and management utility simplify configuration
