Product Information

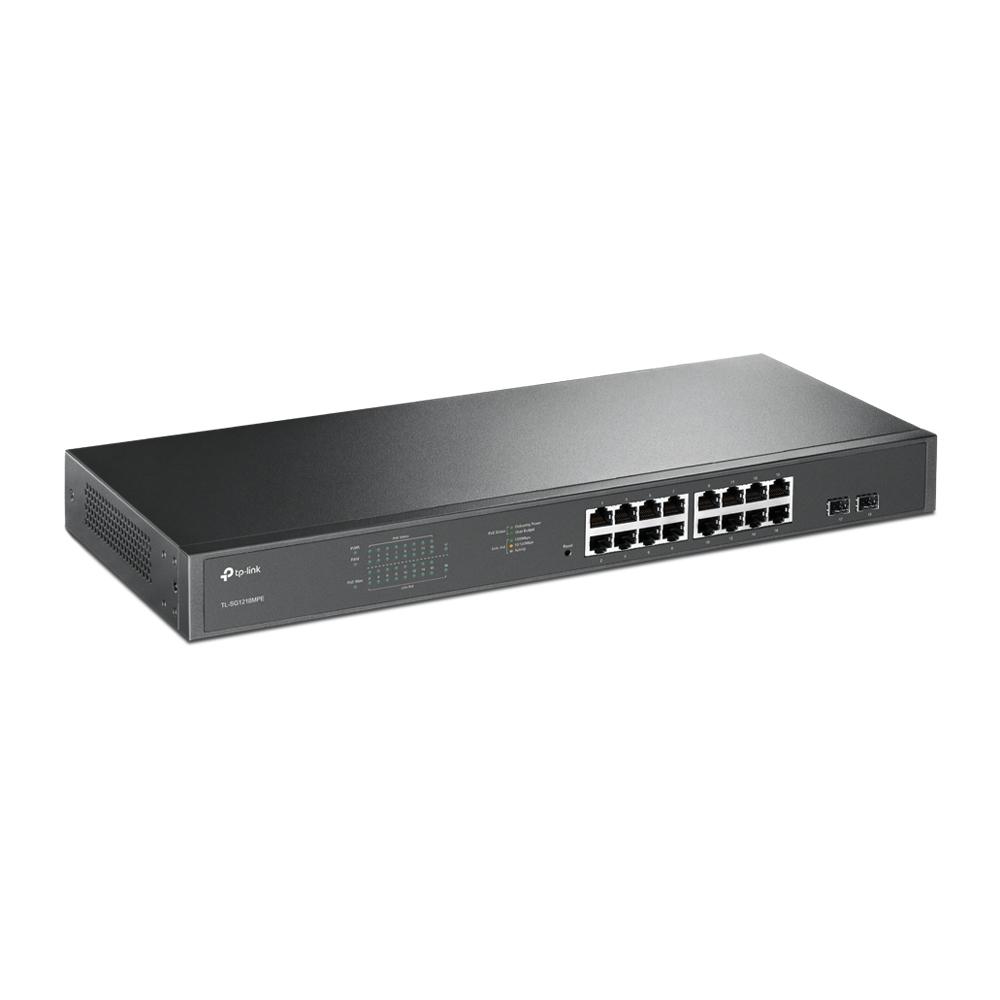

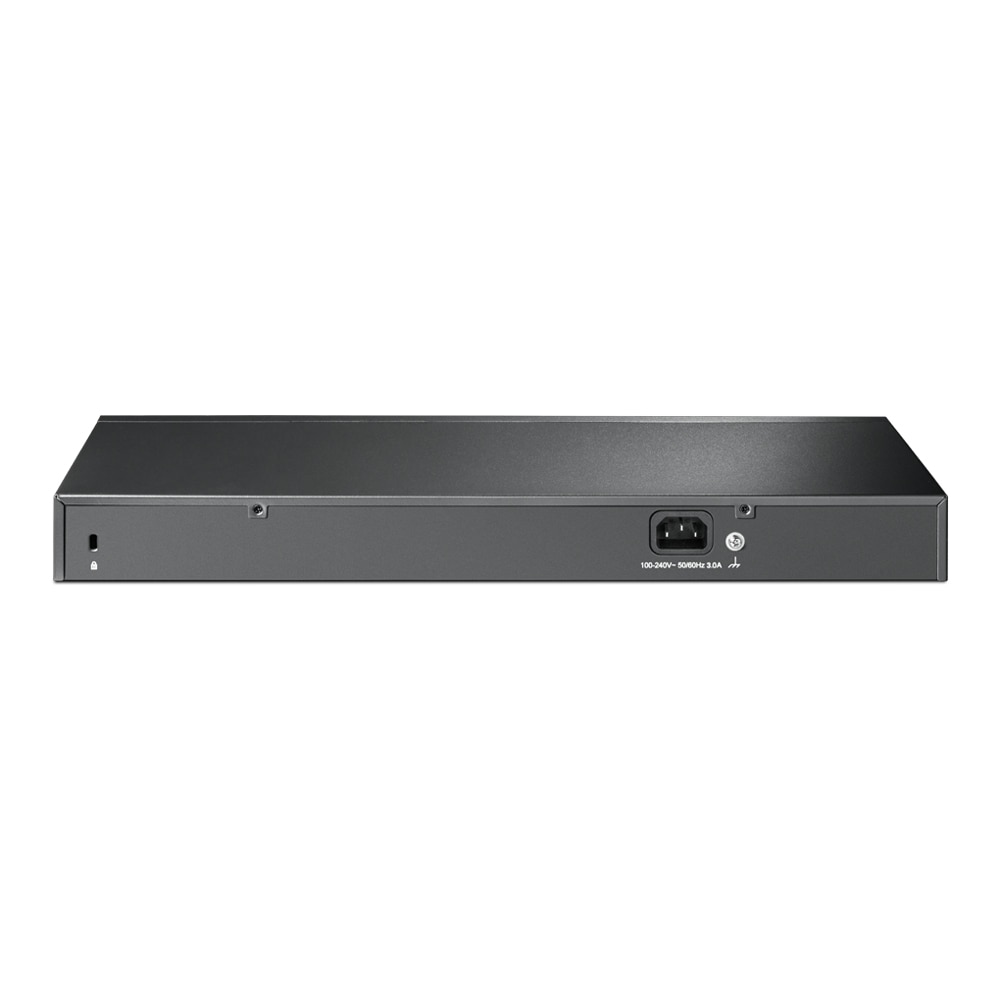

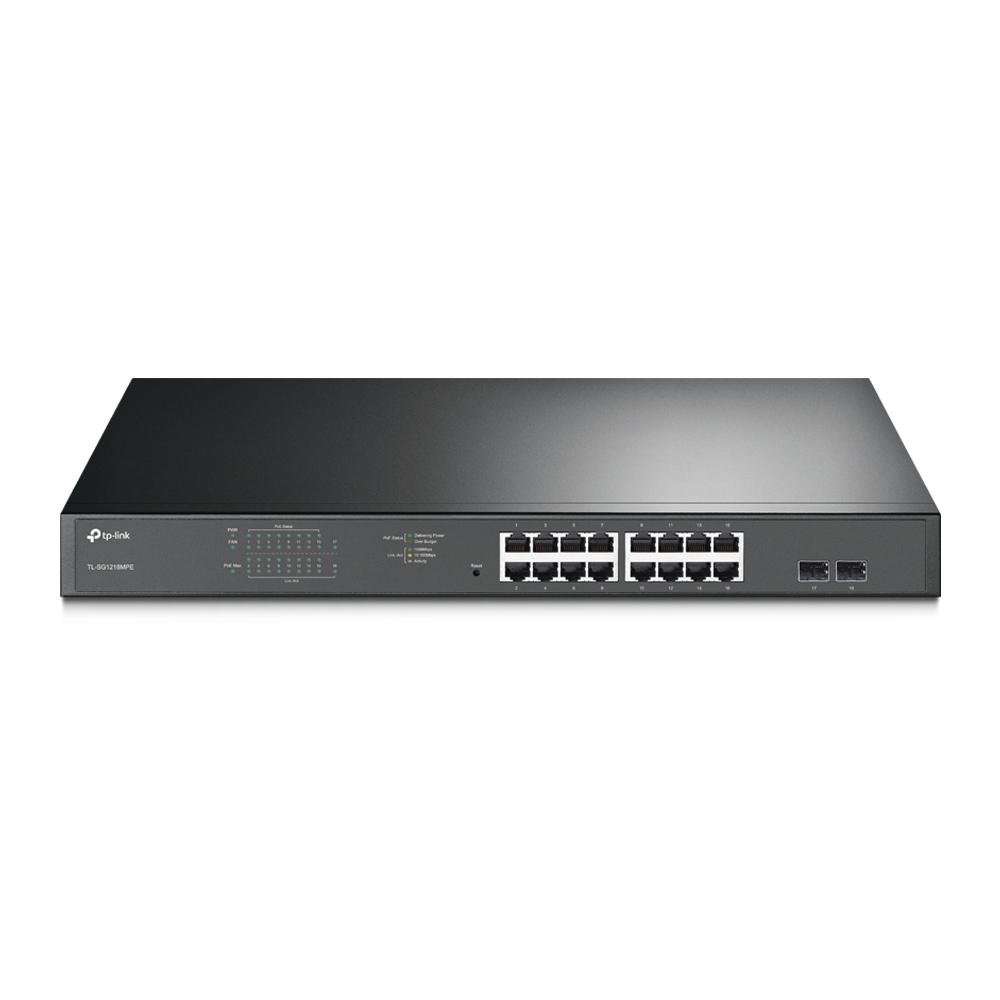

TP-Link TL-SG1218MPE
JetStream 16-Port Gigabit Easy Smart PoE+ Switch with 2 SFP Slots
Ideal for Surveillance
TL-SG1218MPE complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total PoE power budget is up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.
This is new PoE switch with all 16 ports supporting the PoE+ standard provides a simple way to expand the wired network while transferring power over the same ethernet cable at the same time. With a total power budget of 192W, up to 30W per port, and the powerful PoE Module, TL-SG1218MPE can power more high-powered devices such as Access Points, IP Cameras, IP Phones. Moreover, TL-SG1218MPE can provide 802.1q VLAN, IGMP Snooping, LAG and other software functions to meet various network configuration needs.
Power over Ethernet for simplicified Network Deployment
- Features 16 802.3af/at compliant PoE+ ports, with a total PoE power budget of 192W
- Flexible deployment for PoE supported devices such as wireless access points, IP Phones and IP Cameras
- Designed to use a single Ethernet cable for both data and power transmission, lowering infrastructure costs.
Highlight Performance
- Advanced feature - QoS optimizes the performance of quality-sensitive application like Surveillance Video. And IGMP Snooping ensures the multicast stream be forwarded intelligently to the appropriate subscribers by the switch.
- After configure the PoE management module, TL-SG1218MPE can control the Power Limit, Port Priority, and PoE Scheduling of each PoE port.
Easy to Use
- Plug & play, no configuration required
- Auto MDI/MDIX eliminates the need for crossover cables
- Auto-negotiation intelligently adjusts for compatibility and optimal performance
Intelligent Power Management
When total power consumption excels 192W, intelligent power management will turn off the lower priority ports to ensure high priority ports' power supply and protect the device from power overload.
Making Management Easy
TL-SG1218MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1218MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
Features:
- 16 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots
- PoE power budget is up to 192W, making it ideal for small to medium business surveillance systems
- Port Priority is able to guarantee the quality of sensitive application like video monitor
- Intelligent power management can protect the switch from overload
- QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV.
Specifications
Specifications TL-SG1218MPE
| Interfaces | 16 10/100/1000Mbps RJ45 Ports 2 Gigabit SFP Slots |
| PoE | |
| PoE Standard | 802.3 af/at |
| PoE Ports | 16, up to 30W |
| PoE Power | Budget 192W |
| Performance | |
| Switching Capacity | 36Gbps |
| Packet Forwarding Rate | 23.8Mpps |
| Max Address Table | 8K |
| Packet Buffer | 4.1Mbit |
| Jumbo Frame | 9KB |
| Physical & Environment | |
| Power Supply | 100-240V AC, 50/60Hz |
| Maximum Power Consumption (220V/50Hz) | 18.73W (220V/50Hz. no PD connected) 217.22W (220V/50Hz. with 192W PD connected) Maximum Heat |
| Dissipation | 63.89 BTU/h (no PD connected) 741.15 BTU/h (with 192W PD connected) |
| Dimensions (W×D×H) | 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm) |
| FAN Quantity | 2 |
| Operating Temperature | 0°C~50°C (32°F~122°F) |
| Storage Temperature | -40°C~70°C (-40°F~158°F) |
| Operating Humidity | 10% ~ 90%RH, non-condensing |
| Storage Humidity | 5%~90%RH, non-condensing |
| Certification | CE, FCC |
| Software Features | |
| L2 Features | • Link Aggregation - Static link aggregation - Up to 8 aggregation groups and up to 4 ports per group • Loopback Detection • Port Statistics • Cable Test • Flow Control • Mirroring - Port Mirroring - Ingress/Egress/Both |
| IGMP Snooping | • IGMP v1/v2/v3 Snooping • 128 Max Multicast Entries |
| VLAN | • 802.1Q VLAN • Port Based VLAN • MTU VLAN |
| QoS | • Port Based, 802.1p Based, 802.1p CoS/ DSCP priority • Bandwidth Control - Ingress Rate/Egress Rate/Both • Storm Control - Broadcast/Multicast/Unknown-Unicast Control |
