TP-Link 28-Port Gigabit Easy Smart Switch with 24-Port PoE+

(0)No Reviews yet
  • SKU: TL-SG1428PE
US$‎249.99
5 in stock
College Station
5 In stock

Product Information

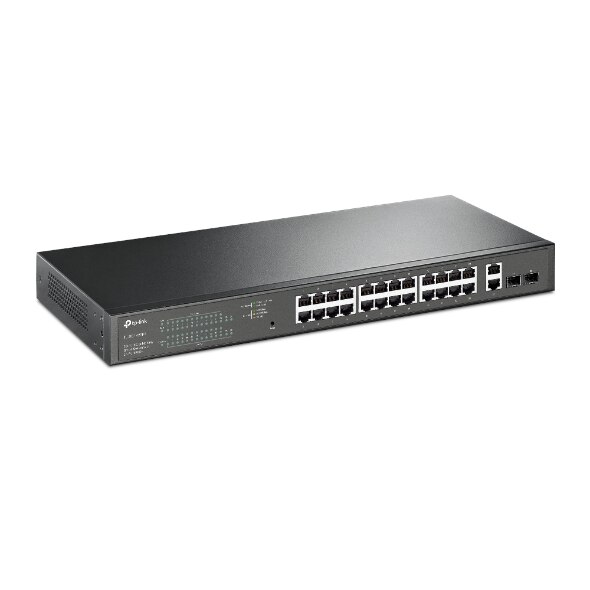

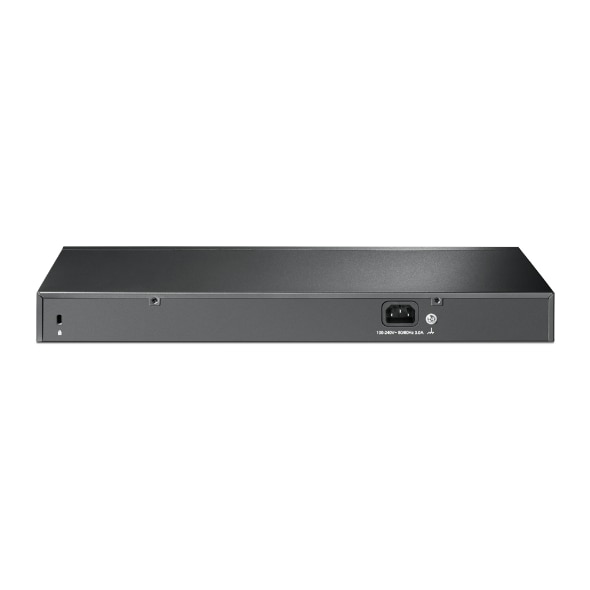

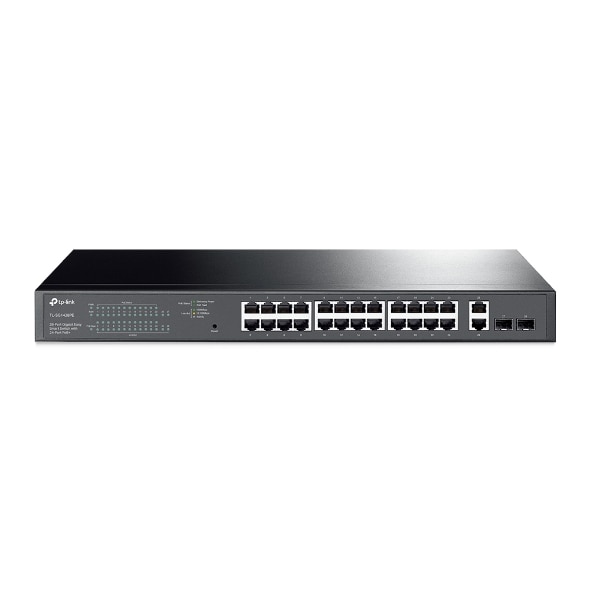

TP-Link TL-SG1428PE

28-Port Gigabit Easy Smart Switch with 24-Port PoE+

Multiple Application Scenarios

The TL-SG1428PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

Dedicated 24 PoE+ Ports (250 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 24× gigabit PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.

Value-Added Features Bring Unexpected Experiences

QoS for a Lag-Free Experience

Ensures smooth traffic for latency-sensitive applications, such as voice and video

IGMP Snooping for Multicast Optimization

Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.

VLAN for Security

Helps to create a network with higher security and better overall performance by dividing the network into smaller groups

Making Management Easy

TL-SG1428PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1428PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

Multiple Factors Guarantee Stable Operation

System Self-Healing with PoE Auto Recovery

The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.

Intelligent Power Management to Prevent Power Overload

Automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply when the total PoE power consumption exceeds 250 W. This protects the device from power overload operation.

Intelligent Power Management to Prevent Power Overload

Automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply when the total PoE power consumption exceeds 250 W. This protects the device from power overload operation.

Wide Operating Temperature with Good Heat Dissipation

Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.


Features:

  • 24 10/100/1000Mbps RJ45 PoE+ ports switch with 2 Ethernet copper and 2 SFP fiber uplink ports
  • PoE power budget is up to 250 W*, making it ideal for small to medium business surveillance systems
  • Priority Mode helps to guarantee the quality of sensitive application like video monitoring
  • PoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devices
  • QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV
  • Intelligent power management can protect the switch from overload

Specifications

Specifications TL-SG1428PE

HARDWARE FEATURES
Standards and ProtocolsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface26 10/100/1000 Mbps RJ45 Ports 2 Gigabit SFP Ports
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF
Fan Quantity2 Fans
Physical Security LockYes
Power Supply100-240V AC, 50/60 Hz
PoE+ Ports(RJ45)Standard: 802.3at/802.3af compliant PoE+ Ports: 24 Ports Power Supply: 250 W
Dimensions ( W x D x H )
Weight
17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)

8.59 lb
Mounting19" 1U rack mountable
Max Power Consumption27 W (no power device connected) 304.7 W (with 250W power device connected)
Max Heat Dissipation92.1 BTU/h (no PD connected) 1,039.0 BTU/h (with 250 W PD connected)
PERFORMANCE
Switching Capacity56 Gbps
Packet Forwarding Rate41.7 Mbps
MAC Address Table8K
Packet Buffer Memory4.1 Mbit
Jumbo Frame9 KB
SOFTWARE FEATURES
Quality of ServiceSupport Port-based 802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control
L2 FeaturesIGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention PoE Auto Recovery
VLANSupport up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN
ManagementWeb-Based GUI Easy Smart Configuration Utility
Transmission MethodStore-And-Forward
OTHERS
CertificationCE, FCC, RoHS
EnvironmentOperating Temperature: 0°C~50°C (32°F~122°F)
Storage Temperature-40°C~70°C (-40°F~158°F)
Operating Humidity10% ~ 90% non-condensing
Storage Humidity5%~90% non-condensing
