TP-Link 10GBase-LR SFP+ LC Transceiver
- SKU: TL-SM5110-LR
$24.99
- Manufacturer: TP-Link
- Data Sheet: Download
Product Information

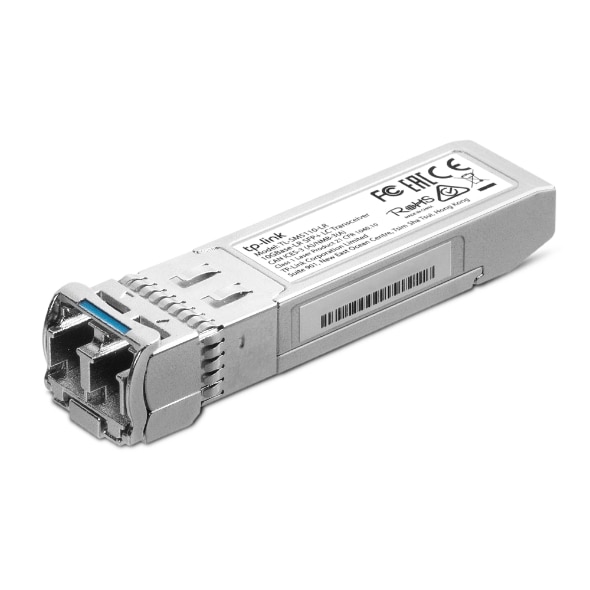

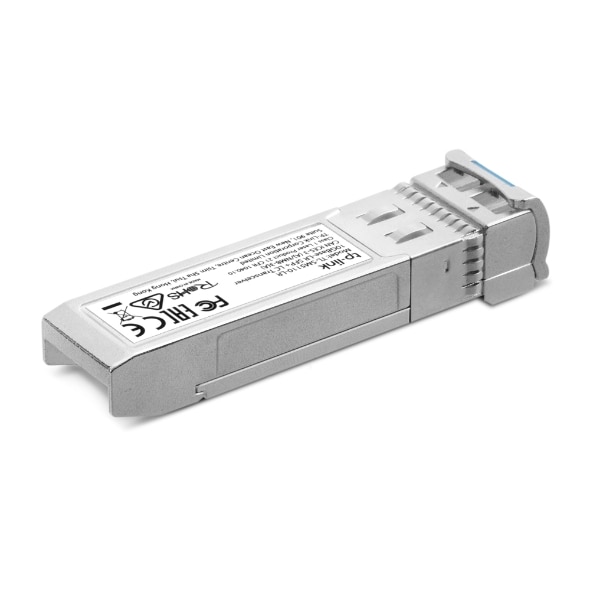

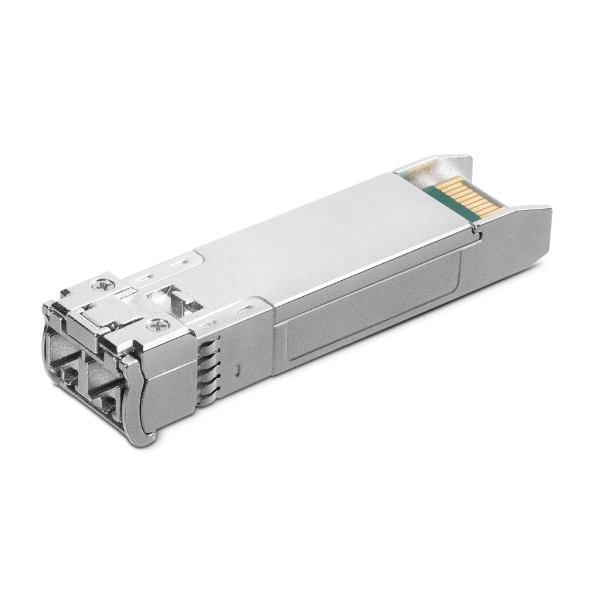

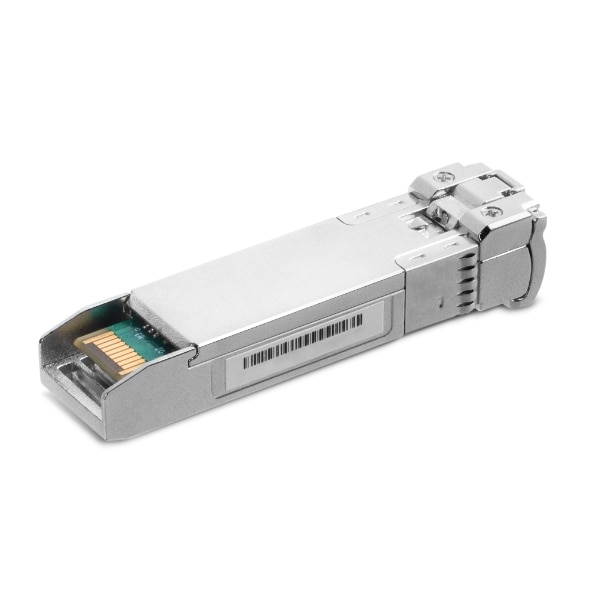

TP-Link TL-SM5110-LR
10GBase-LR SFP+ LC Transceiver
The TL-SM5110-LR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.
Features:
- Single-mode SFP+ LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
- Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
Specifications
Specifications TL-SM5110-LR
| Weight | 0.04 lbs |
| Dimensions (L x W x H) | 2.23 x 3.21 x 1.52 inches |
| HARDWARE FEATURES | |
| DDM | Yes |
| SFP-MSA | Yes |
| Hot Swappable | Yes |
| TRANSCEIVER | |
| Standards and Protocols | IEEE 802.3ae, TCP/IP |
| Wave Length | 1310 nm |
| Power Supply | 3.3V |
| Fiber Type | 9/125um Single-Mode |
| Max. Cable Length | 10 km |
| Data Rate | 10 Gbps |
| Port Type | LC Duplex |
| Safety & Emission | FCC, CE |
| Environment | |
| Operating Temperature | 0–70 °C (32–158 °F) |
| Storage Temperature | -40–85 °C ( -40–185 °F) |
| Operating Humidity | 10–90% RH, Non-Condensing |
| Storage Humidity | 5–90% RH, Non-Condensing |
