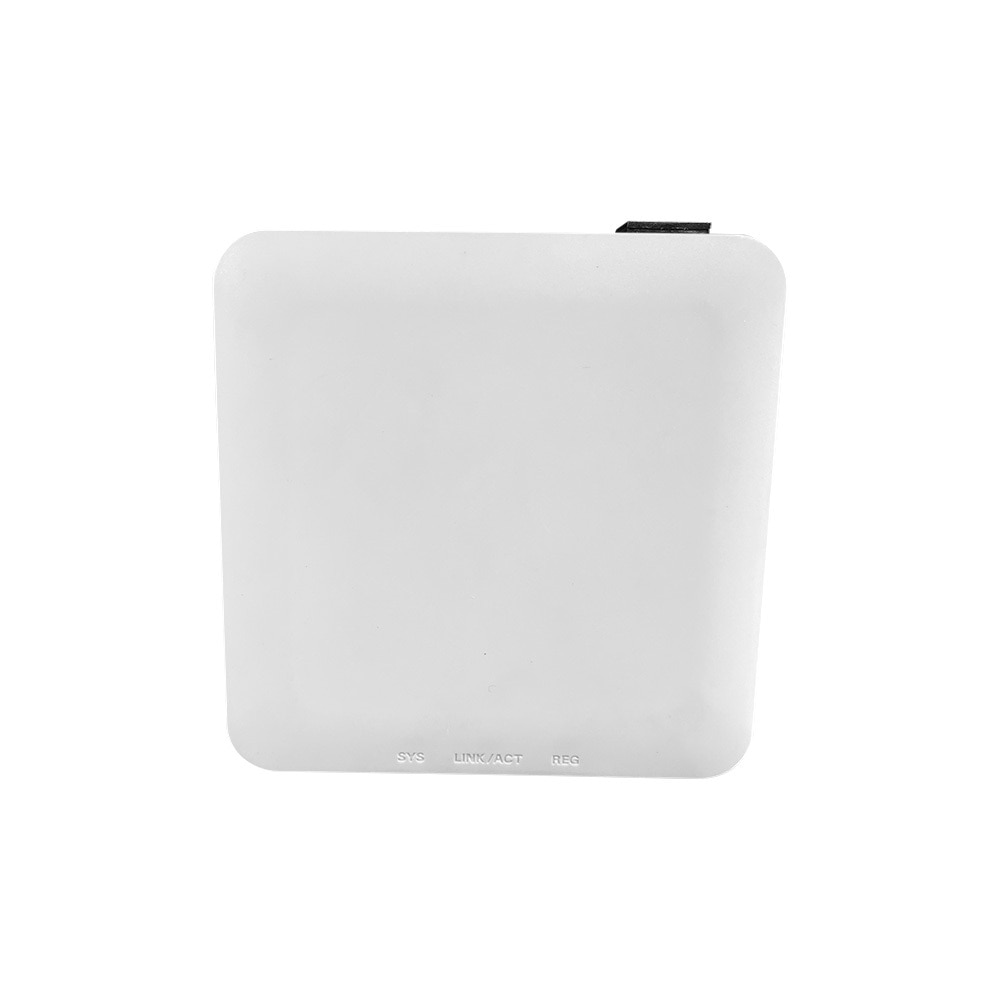

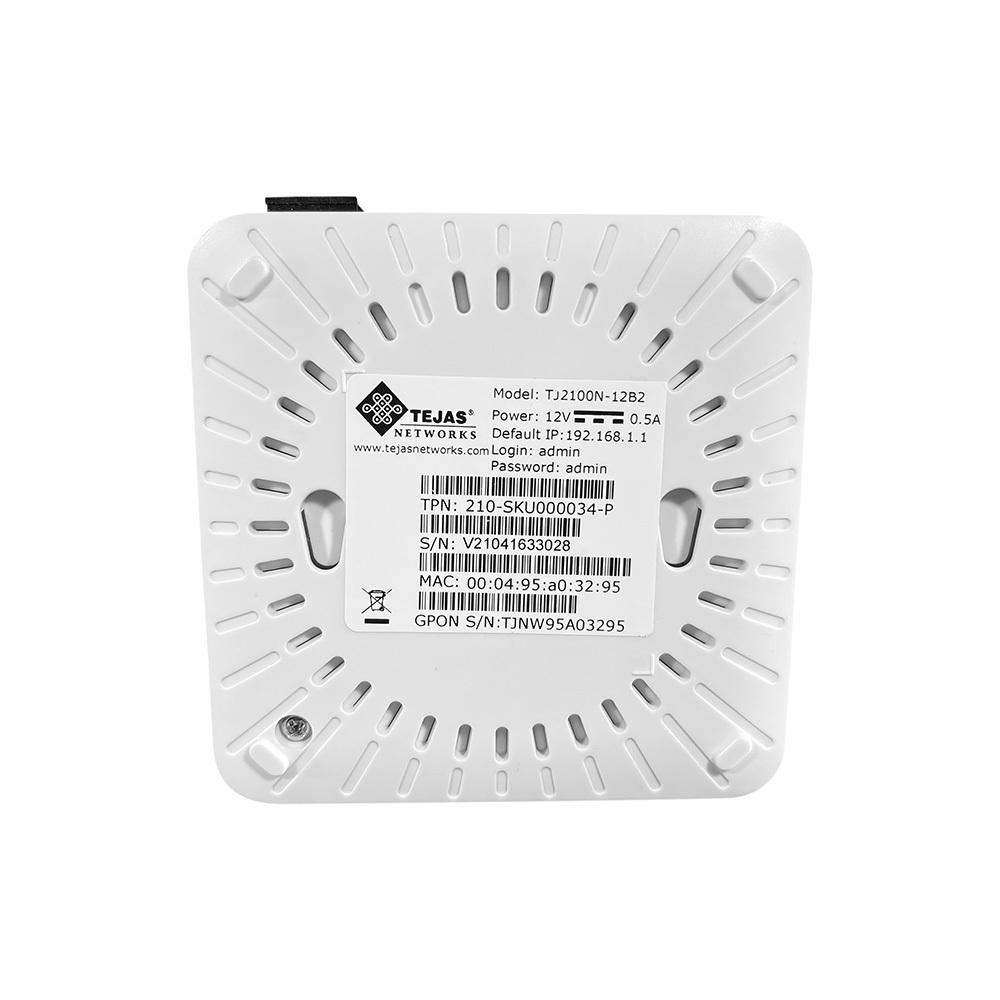

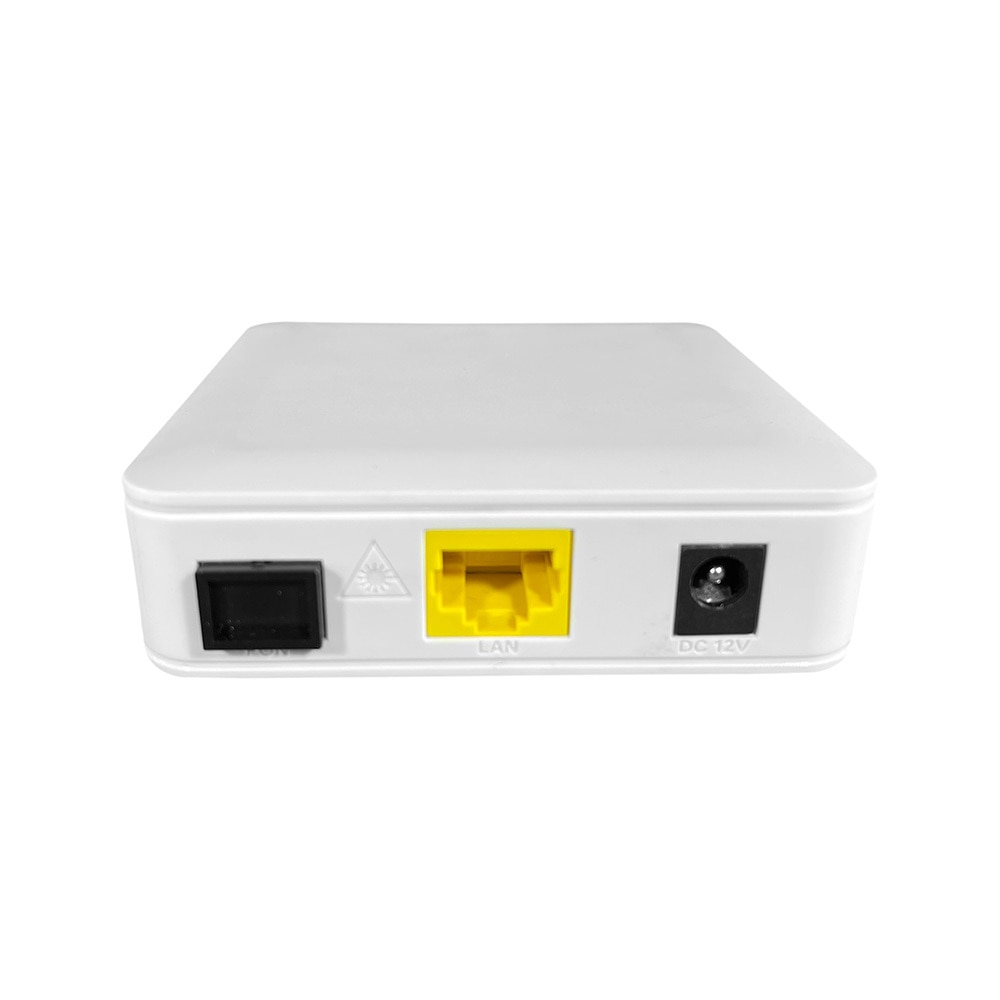

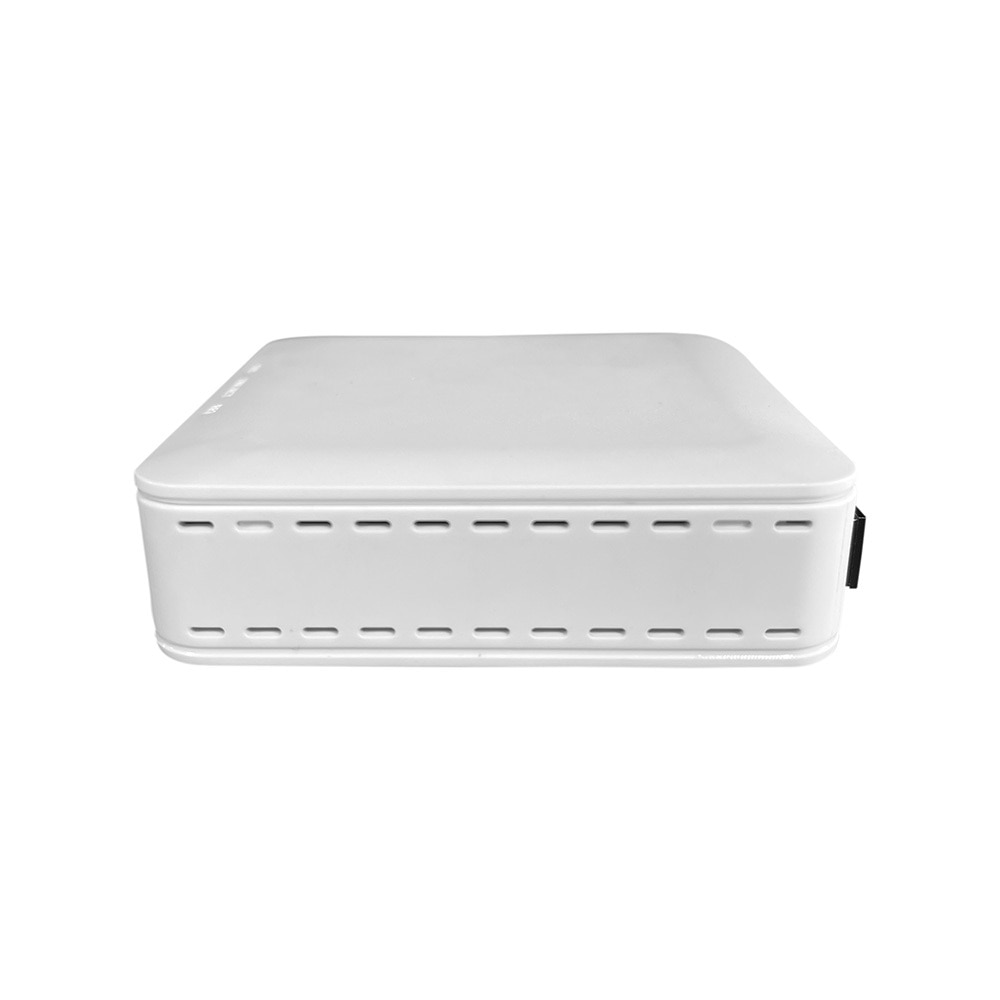

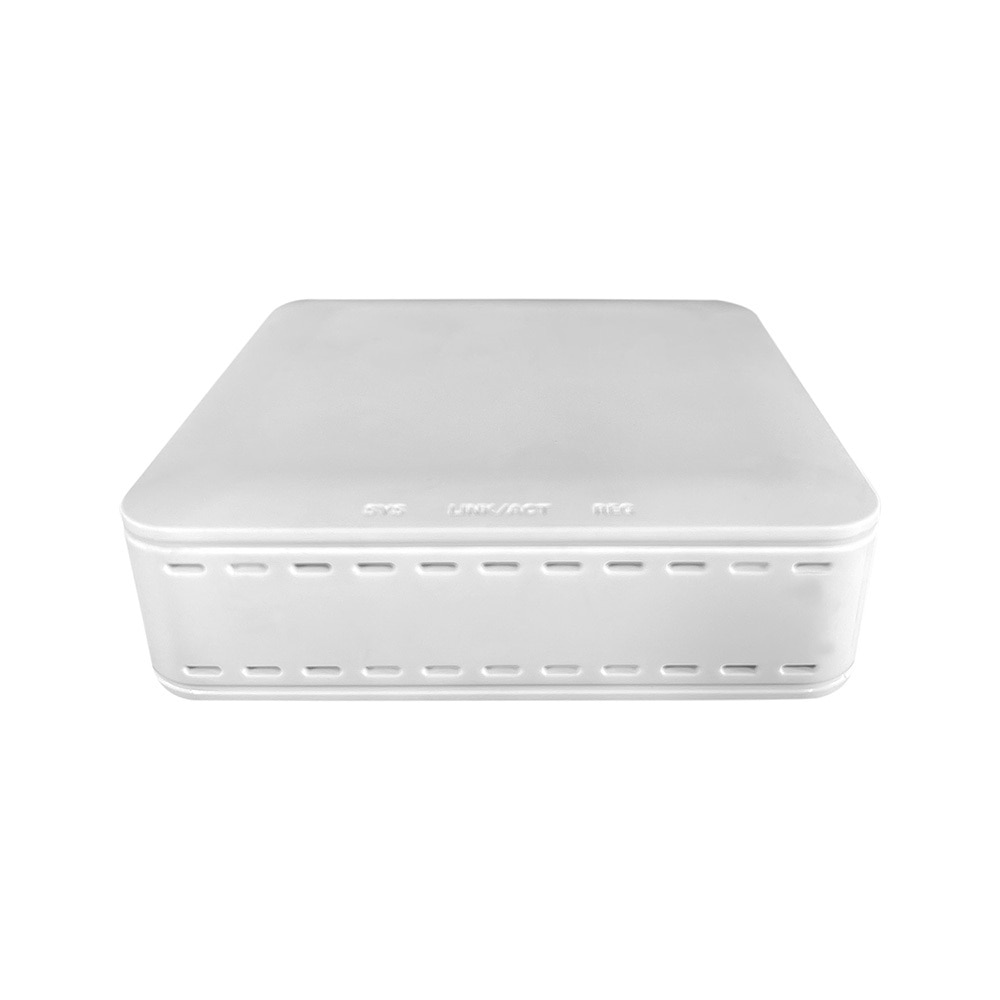

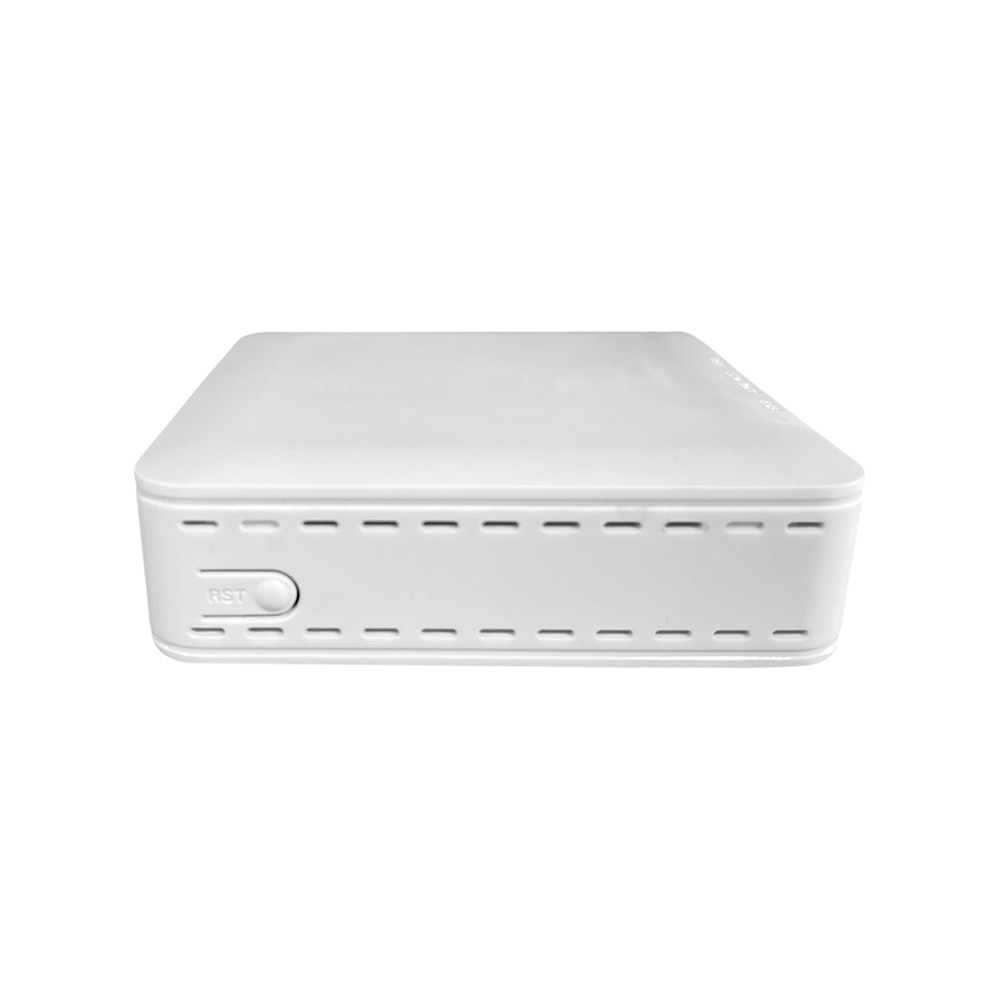

Tejas Networks TJ2100N-12B

1GE port ONT : TJ2100N-ONT12B : 1x10/100/1000 with Power Adapter for US

High performance enterprise and residential GPON ONT

Tejas offers a series of advanced GPON ONT elements designed for next-generation Optical Access networks deployed in FTTH (Fiber-to-theHome) and FTTB (Fiber-to-the-Building) formats. It addresses the rapidly growing service provider needs for flexible, high-capacity fixed-line broadband solutions to support emerging high bandwidth video applications (e.g., IPTV, Mobile backhaul, MTU, VOD) in enterprise, residential deployments, aggregation of backhaul traffic from LTE cell sites, enterprise VPN Services and SDWAN networks based on NFV paradigm.

Tejas has as a full GPON solution that includes both TJ1400 OLT (Optical Line Terminal) and TJ2100N ONT (Optical Network Terminal) platforms. TJ2100N-12B is a versatile ONT product supporting 1x10/100/1000Mbps Ethernet interface.

TJ2100N-12 is compliant to ITU-T G.984, G.988 and TR69 set of standards.

GPON Features: Data rates of 2488Mbps downstream and 1244Mbps upstream. | 32 TCONT and 128 GEM port IDs | Ranging and activation process support | HW Dying gasp Wavelength: 1490 nm/1310 nm Distance: 20km depending on split ratio

Downstream AES-128 encryption and key exchange process | Downstream FEC, RS(255,239) | Dedicated independent TX queues for PLOAM and CPU packets

Upstream FEC, RS(255,239) | Normal queues for PLOAM and CPU packets Performance monitoring, faults and alarm, including BER rate monitor.

Power saving: As per ITU-T 984.3 (01/2014) of ONU power management aspects| Supports Ethernet packets of up to 2KB and Jumbo packets. Power & Thermal 12V DC ,1A +/- 5% , Round barrel-type connector for power input


Features:

  • Plug-and-play (PNP): Configuration using standard OMCI and TR69 protocols for provisioning IPTV, VOD, Internet services.
  • Ethernet interfaces: Has on Ethernet interfaces to cater to use cases such of IPTV, Internet etc.
  • POTS: The ONT has one POTS interfaces for voice telephony services to public switched telephone network (PSTN).
  • Mechanical and Environmental : Table top and wall mount enclosure suitable for indoor environments (up to 45 ºC).

Specifications

Specifications TJ2100N-12B

Supported bandsR9, TDD Mode
GPON Interface SC/APC connector Transmission: ITU-T G.984 | Optical module: Class B+ Optical transmit power +0.5 to +5dBm and Receive sensitivity of –28dBm. Upstream and Downstream FEC
Ethernet Meets 802.3 specifications 1x10/100/1000Mbps RJ-45 connector Half-duplex & full-duplex operation 10/100/1000Mbps auto-negotiation MDI/MDIX auto detection
Layer 3/4 hardware NAT/nAPT Support 4K/8K/16K/32K flow based connections | Port/VLAN bridging | IPV4/IPV6 flow routing for policy rate |IPoE/DHCP/PPPoE/DS-Lite/PPTP/L2TP WAN hardware forward
Layer 2 capabilities Non-Blocking wire speed reception and transmission | Supports source and destination MAC address filtering
Environmental Operating Temperature: 0 ºC to 45 ºC
Altitude: 4,000m operations : Humidity: 5 to 93% RH non-condensing
ManagementG.988(OMCI), TR69, SNMP
