Tripp Lite PDU Switched 120V 1.4kW 15A 8 5-15R 5-15P LX Interface 1URM TAA

(0)No Reviews yet
  • SKU: PDUMH15NET2LX
  • Manufacturer: Tripp Lite
  • Data Sheet: Download

Out of Stock

 Open chat or call us for stock status

Product Information

Tripp Lite PDUMH15NET2LX

PDU Switched 120V 1.4kW 15A 8 5-15R 5-15P LX Interface 1URM TAA

The PDUMH15NET2LX 1.4kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.

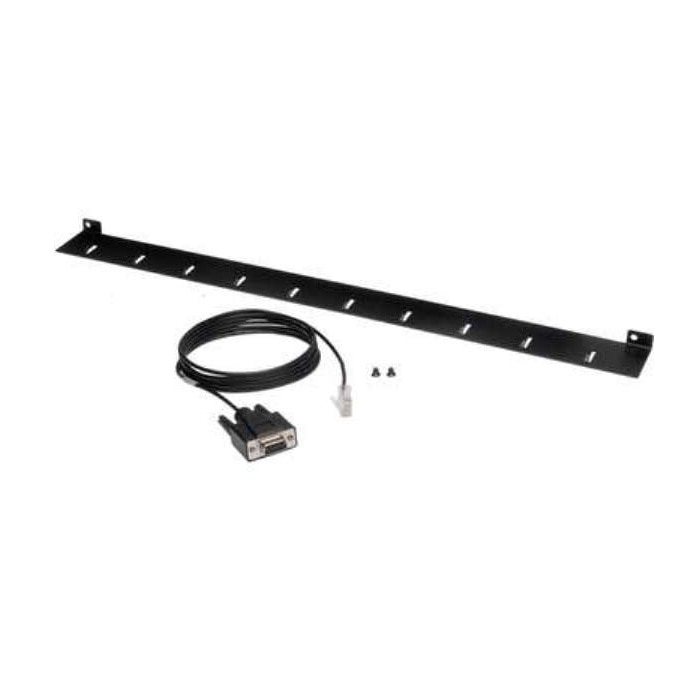

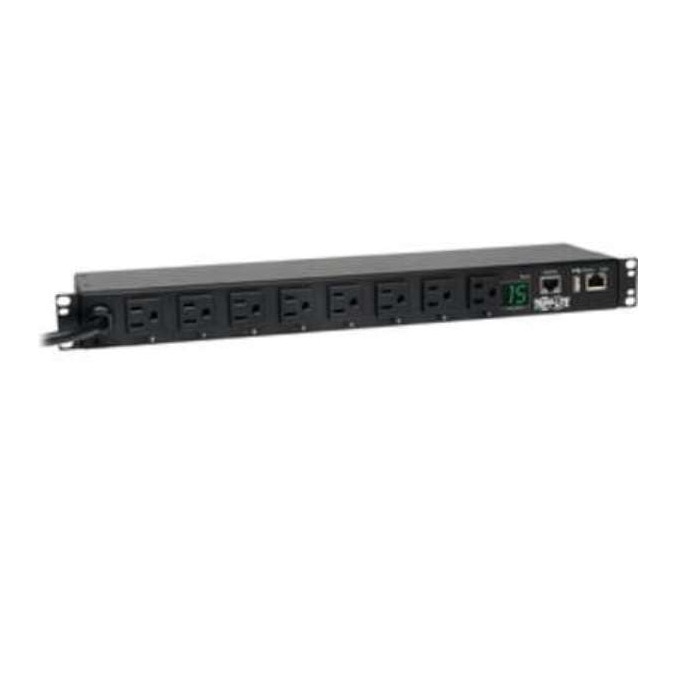

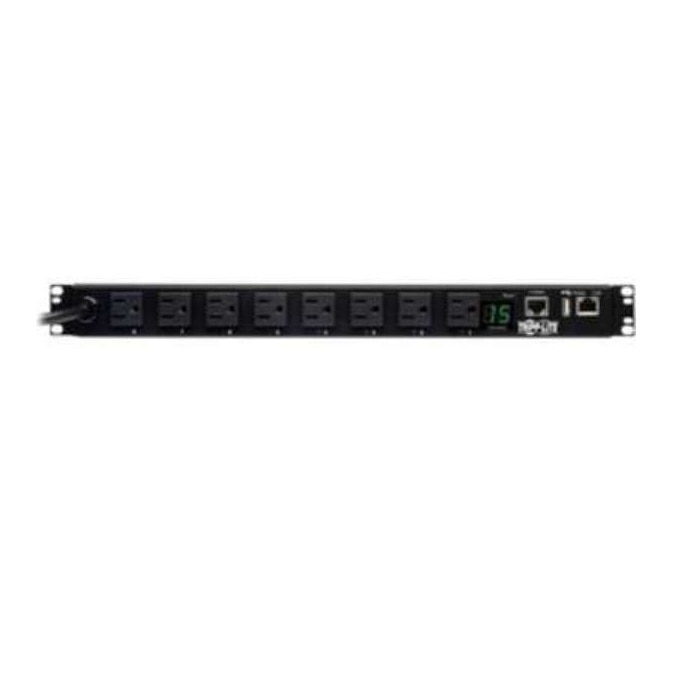

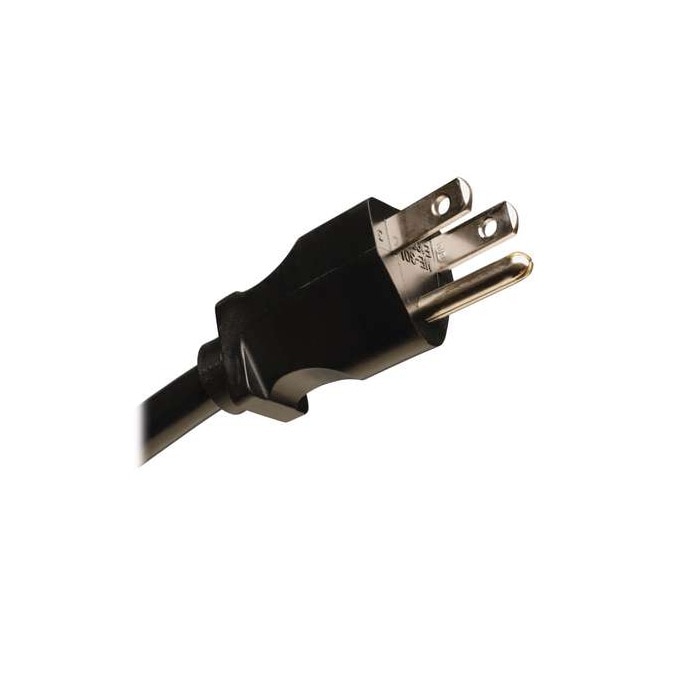

The 1U PDU features eight switched NEMA 5-15R outlets with an included cord retention bracket to prevent cables from becoming accidentally disconnected. A 12-foot cord with NEMA 5-15P plug connects the PDU to a compatible AC power source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

A digital ammeter allows you to monitor the total load in real time to ensure it remains well below maximum capacity with no danger of overload. The rack-mount PDU installs in 1U of space in EIA-standard 19-inch racks. You can also mount it vertically in 0U of rack space or on a wall or under a counter with the included brackets and user-supplied screws.


Features:

  • 1.4kW 120V single-phase switched 1U PDU
  • 8 individually controllable NEMA 5-15R outlets
  • Built-in Java-free LX Platform interface for remote access 24/7
  • Digital ammeter for on-site load monitoring in real time
  • NEMA 5-15P input with 12 ft. AC power cord

Specifications

Specifications PDUMH15NET2LX

Product TypePDU
Input ReceptaclesNEMA 5-15P
Output Receptacles8 x NEMA 5-15R
Input Voltage120 V AC
Output Voltage100 V AC 120 V AC 127 V AC
Power Rating (Watt)1520 W
Input Current15 A
Physical
Mounting OrientationHorizontal
Mount TypeRack-mountable
Rack Height1U
Height1.8"
Width17.5"
Depth4.3"
Warranty
Limited Warranty2 Year
Environmentally FriendlyYes
Environmental CertificationRoHS
Country of OriginTaiwan
TAA CompliantYes
Other Information
PhaseSingle Phase
PDU TypeSwitched
