Tripp Lite 1250W PowerVerter Plus Industrial-Strength Inverter with 2 Outlets
US$334.39
- SKU: TRPI01K
- Manufacturer: Tripp Lite
- Data Sheet: Download
Product Information

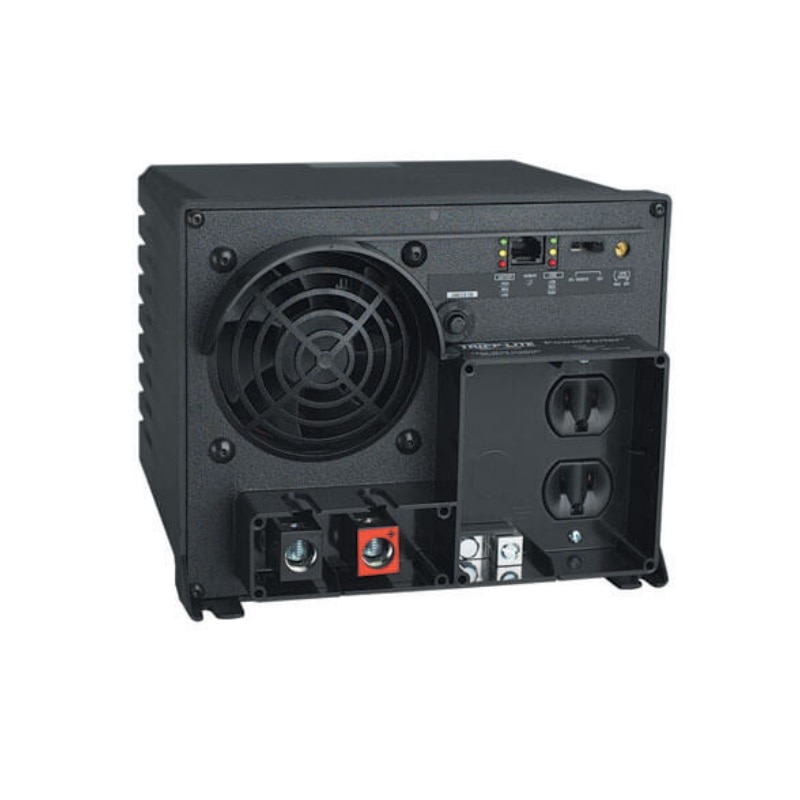

Tripp Lite TRPI01K
1250W PowerVerter Plus Industrial-Strength Inverter with 2 Outlets
Utilize you vehicle's battery to efficiently power work site power tools, pumps, as well as your laptop computer. Continuously supplies 1250 watts of 120VAC power to (2) AC outlets from any 12VDC battery source. Frequency control locks AC output at 60Hz for operating stability of motor loads and other inductive loads with high current startup requirements.
NOTE: To protect against high current draw that may occur during inverter failure, a fuse link rated at 200a should be positioned no more than 18" from the PV1250FC's battery in the positive line.
Features:
- Allows users to run large, motorized AC appliances from any 12V battery or automotive DC system
- Converts 12V DC battery power to 120V AC power
- 1,250 watts continuous output power
- Peak output power: OverPower (up to 1 hour) - 1875 watts, Double-Boost (up to 10 seconds) - 2500 watts
- 2 outlets; DC input terminals for 12V battery connection
- Frequency control for operating stability
- High-efficiency operation conserves batteries to prolong run time
- Diagnostic LEDs indicate load level (high, medium, and low) and battery charge (high, medium, and low)
- DC fusing protects inverter against overload
- RJ45 port allows connection of APS/PowerVerter Remote Switch (APSRM4)
- Automatic overload shutdown
- Ignition interlock jack
Specifications
Specifications TRPI01K
INPUT | |
Recommended Electrical Service | Requires 12V DC input source capable of delivering 127A for the required duration (when used at full capacity) |
Maximum Input Amps / Watts | Full continuous load - 127A at 12V DC, No load - 2.2A at 12V DC |
Input Connection Type | Set of 2 DC input terminals |
Input Cord Length Details | User supplies cabling. 4 gauge or larger recommended. |
Voltage Compatibility (VDC) | 12 |
OUTPUT | |
Frequency Compatibility | 60 Hz |
Pure Sine Wave Output | No |
Output (Watts) | 1250 |
Nominal Output Voltage(s) Supported | 120V |
Output Receptacles (2) | 5-15R |
Continuous Output Capacity (Watts) | 1250 |
Peak Output Capacity (Watts) | 2500 |
Output Voltage Regulation | Maintains PWM sine wave output voltage of 120 V AC (+/-5%) |
Output Frequency Regulation | 60 Hz (+/- 0.3 Hz) |
Overload Protection | Circuit breaker |
BATTERY | |
DC System Voltage (VDC) | 12 |
PHYSICAL | |
Cooling Method | Fan |
Form Factors Supported | Mounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information) |
Material of Construction | Polycarbonate |
Shipping Dimensions (hwd / cm) | 31.75 x 26.42 x 26.42 |
Shipping Dimensions (hwd / in.) | 12.50 x 10.40 x 10.40 |
Shipping Weight (kg) | 10.21 |
Shipping Weight (lbs.) | 22.50 |
Unit Dimensions (hwd / cm) | 17.78 x 22.23 x 22.86 |
Unit Dimensions (hwd / in.) | 7 x 8.75 x 9 |
Unit Weight (kg) | 10.52 |
Unit Weight (lbs.) | 23.2 |
ENVIRONMENTAL | |
Relative Humidity | 0-95% non-condensing |
WARRANTY | |
Product Warranty Period (Worldwide) | 1-year limited warranty |
