Tycon Power 3.75A 90W Desktop Power Supply with 5.5x2.1 DC Plug and removeable NA AC plug
- SKU: PS24V-3.75
$49.35 $51.95
- Manufacturer: Tycon Power
- Data Sheet: Download
Product Information

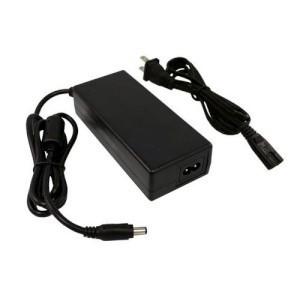

Tycon Power PS24V-3.75
The PS24V are a series of low cost auto ranging switching wall plug 90W power supplies that output 24VDC at 3.75A.
They are available with a North American plug or European Plug.
The small size and unique AC plug orientation of the power supply takes up less room on a multi socket or wall socket because it only takes up a single position.
Supplies are certified by UL, CE & comply with RoHS requirements.
Features:
- Industrial Temperature Rating
- High Power in Compact Size
- Desktop Model with removable AC power cord
- Short Circuit and Overcurrent Protection
Applications:
- Wireless Access Points and Client Devices
- IP Phone and Security Camera Systems
Specifications
Specifications PS24V-3.75
| Input Operating Range | 90-264VAC 47/63Hz |
| Maximum Power | 90W |
| Input In-rush Current | 50A Max |
| Input Current | 1.5A Max |
| Static Power Consumption | 0.5W Max |
| Line / Load Regulation | 1% / 5% |
| Output Voltage | 24 VDC +/- 1V |
| Continuous Load Current | 3.75 A |
| Ripple and Noise | 240mVp-p Max |
| Efficiency | 80% Minimum |
| Dielectric Strength | 3000V rms / 50Hz, 3 sec, 5mA Max |
| Insulation Resistance | 50MΩ min at 500VDC |
| Protection | Short Circuit, Over-Current |
| Operating Temp | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | 90% non-condensing |
| Storage Temp | -40°C to 80°C (-40°F to 176°F) |
| DC Plug / Cable Length | 5.5 x 2.1mm x 11mm DC Barrel / 1.2m (48”) |
| Case Size | 140 x 60 x 34mm (5.5 x 2.4 x 1.3”) |
| Weight | 435 g (15 oz ) |
| Certifications | UL, CE, FCC, RoHS |
| MTBF | 50,000 Hours Min |
| Warranty | 3 Years |
