Tycon Power 900W Battery Charger, 88.2V 10A, with US Power Cord

(0)No Reviews yet
  • SKU: TP-BC72-900

Out of Stock

Product Information

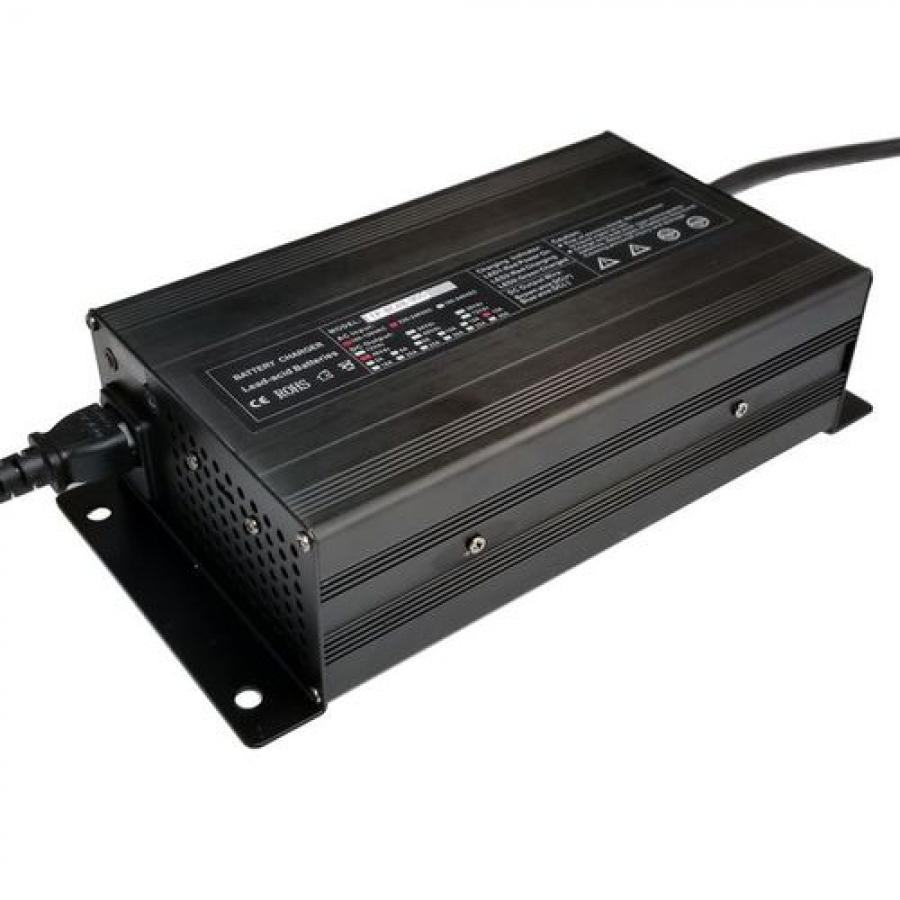

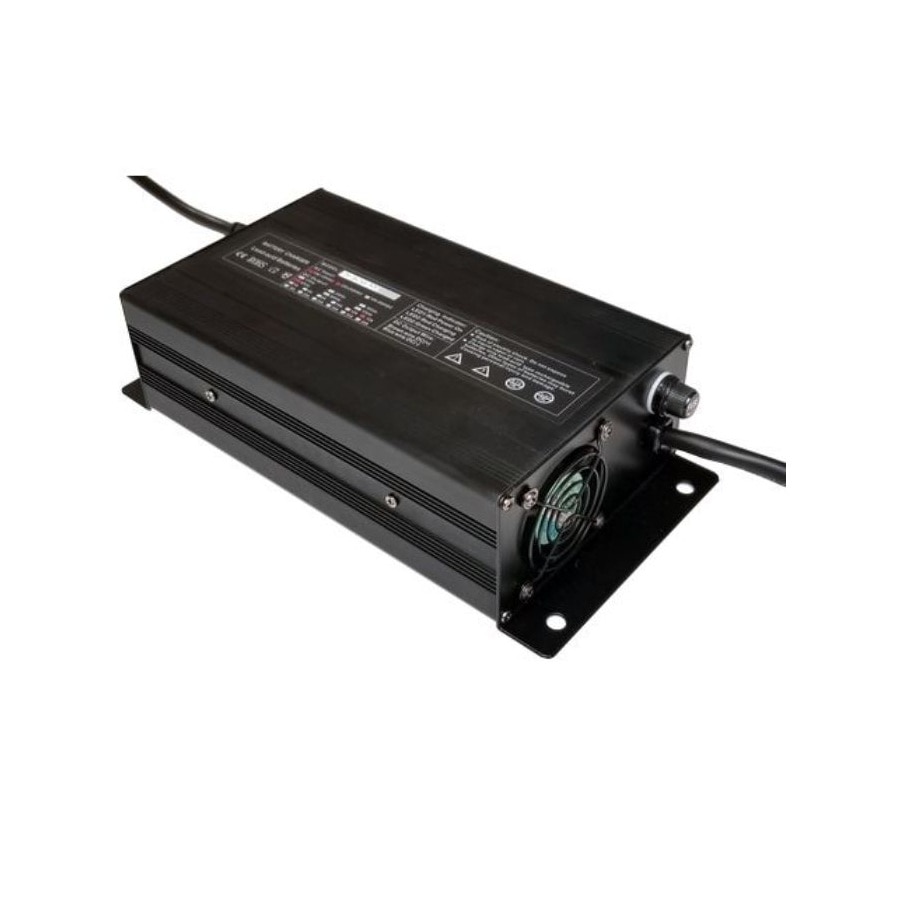

Tycon Power TP-BC72-900

900W Battery Charger, 88.2V 10A, with US Power Cord

The TP-BC72-900 battery chargers provide up to 900W of total charging power. The battery charger is compatible with GEL/AGM type sealed lead acid batteries.

The charger has various protections for reverse current, short-circuit, over-load, over-voltage, and over-current.

There is an LED which indicates charging (Red) or battery full (Green). The unit comes with a removeable AC cord with a North American Plug. The units are can work from 90VAC to 240VAC (selectable via switch).


Features:

  • 72V 900W Total Power
  • Over-Voltage, Over-Current, ReverseCurrent, Over-Load, Short-Circuit Protections
  • Led indicator: Red=Charging, Green=Battery Full/Float Charge
  • CE Certification

Features:

  • Wireless Base Stations, Cellular Base Stations
  • Surveillance Systems
  • Battery Backup Systems

Specifications

Specifications TP-BC72-900

Total Power Available (for Load and Battery charging) 900W
Nominal Battery Voltage 72VDC
Battery Charge Max Current 10A
Battery Charger Voltage 88.2V
Battery Float Voltage 82.8V
Efficiency >88%
DC Output Cable 2 Wire 14AWG ; 1.2m (48”) long cable Brown = V+, Blue = V
AC Input Connector IEC C14
AC Power Cord IEC C13 to Nema 5-15P, 1.2m (48")
AC Power Input 120VAC / 240VAC , 50/60Hz
Hi-Pot Test 1500VAC / 10mA / 1min
Insulation Resistance >10MOhm, 500VDC
Operating Temperature -10 to +40C (14 to +104°F)
Operating Humidity (RH) 5% to 90% (non condensing)
Storage Temperature -40 to +70°C (-40 to +158°F)
Storage Humidity 5% to 95% (non-condensing)
Standards Compliance CE, EN60335-1:2002 and EN60335-2-29:2002
MTBF (Mean Time Between Failure) >50,000 hrs
Dimensions (LxWxH) incl mtg flange 272 x 135 x 70mm (10.7 x 5.3 x 2.75”)
Weight 1.95kg (4.3lb)
