Tycon Power Gigabit 9-36VDC In, 24VDC 4-Pair PoE Out 24W DC to DC Converter and POE Inserter
- SKU: TP-DCDC-1224G-4P
- Manufacturer: Tycon Systems
Product Information

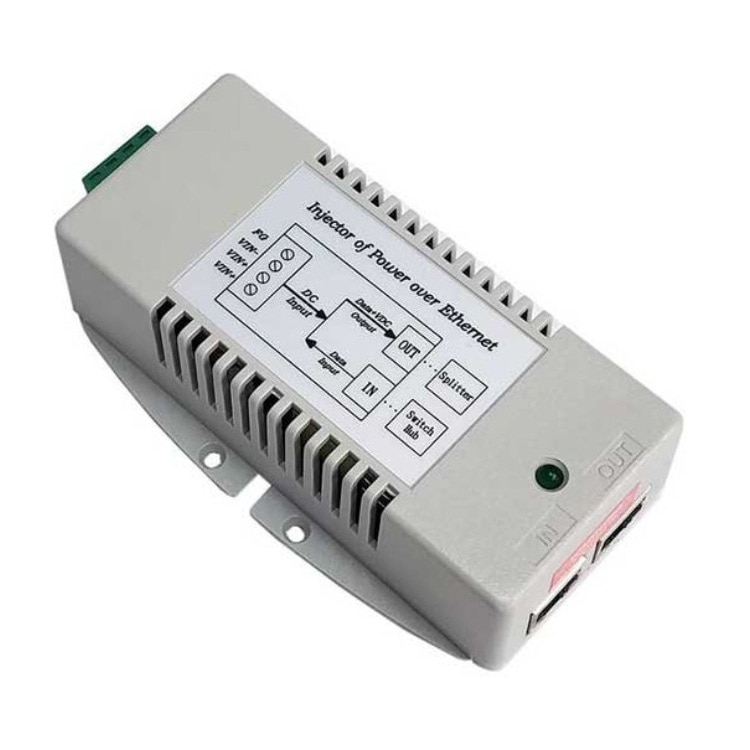

Tycon Power TP-DCDC-1224G-4P
Gigabit 9-36VDC In, 24VDC 4-Pair PoE Out 24W DC to DC Converter and POE Inserter
The TP-DCDC-1224G-4P Gigabit DC to DC converters offered by Tycon Power Systems are a low cost and high efficiency solution for those requiring 24VDC 4 pair Passive Power over Ethernet from a 12VDC or 24VDC voltage source like a battery system or vehicle. They have an integrated 4 pair PoE injector to apply the power and data output to the CAT5 Ethernet cable. All 8 wires carry both data and PoE power. The output voltage is regulated and protected. They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. Input and outputs are isolated so + or – ground is OK.
They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and 4 pairt PoE power on the shielded RJ45 output jack. They work by supplying power on Ethernet pins 1,2,4,5(V+) and 3,6,7,8(V-). They have various protections for surge, short circuit and overload. The units have power outputs up to 24W.
Features:
- Input Voltage 9-36VDC
- 24V Gigabit Passive 4 Pair PoE Output
- Dual Inputs for Connecting 2 Power Sources
- Integrated 10/100/1000MB PoE Sources
- High Power up to 24W
- Short Circuit, Over Current and Reverse/Over Voltage Protect
- High Temperature Operation to 70°C
- Built-in Low Battery Disconnect and Surge Protection
Specifications
Specifications TP-DCDC-1224G-4P
DC Input Voltage | 9 - 36VDC, Input / Output is Isolated |
DC Input Connector | Removable Screw Type Compression Wire Terminal (12 AWG Max) |
DC Output Voltage | 24V (Passive) 4 Pair Power |
Data In & Data/PoE Output Connector | RJ45 (shielded) |
Output Current (max) | 1A |
Output Power (max) | 24W |
Low Voltage Disconnect / Reconnect | Disconnect at 8.9V, Reconnect at 9.02V |
Efficiency (min) | 80% |
Line Regulation | 1% |
Load Regulation | 5% |
Ripple | 1% |
Noise | 1% |
LED Operation | RED = Input Power On / Green = Output Connected |
Surge Protection (IEC 6100-4) | 15kV (Air), 8kV (Contact), 20A (8/20us) Lightning |
EMC Standards | FCC Class B EN55022 Class B |
Safety Standards | UL1950, CSA 22.2 &TUV EN60950 |
Operating Temperature | -40 to 80°C (-40 to 176°F) |
Operating Humidity | 5 to 90% |
Storage Temperature | -40 to 80°C (-40 to 176°F) |
Dimensions | 125 x 75 x 38mm (4.9 x 3 x 1.5") |
Weight | 300g (10.6oz) |
