Tycon Power Network/Lighting Surge Protector 1Gb 48V PoE
- SKU: TP-ESP-1000-POE
$27.50 $28.95
- Manufacturer: Tycon Power
- Data Sheet: Download
Product Information

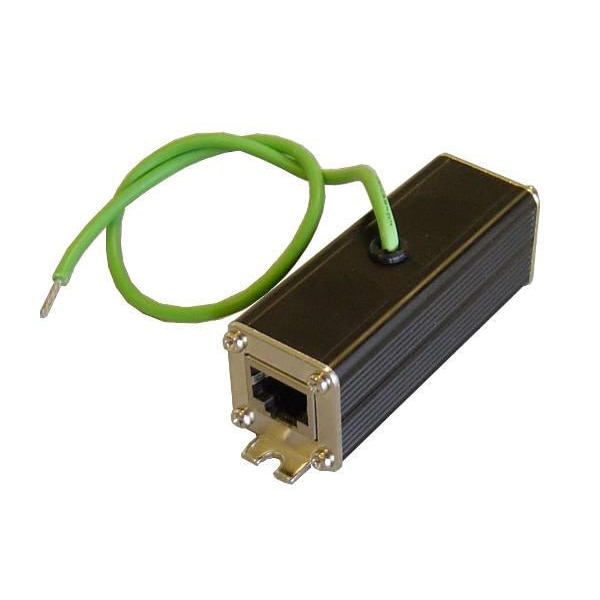

Tycon Power TP-ESP-1000-POE
Gigabit Ethernet Surge Protector
The ESP-POE are a low cost Ethernet surge protector to help protect sensitive equipment from surges caused by lightning and grid power fluctuations. They have a full metal body for improved EMI suppression and have integral mounting feet and separate ground wire. They are designed for indoor or outdoor use inside a weatherproof enclosure. The ESP-1000-POE is compatible with 10/100/1000M POE systems up to 57V. The ESP-100-POE24 is for 10/100M passive POE systems up to 24V. Protection is provided on all 8 CAT5 wires.
Features:
- 10/100/1000Mb Data Rate (24 or 48V POE Model)
- CAT5/6 Compatible. All 8 pins protected.
- Shielded jacks and full metal housing
- Complies with IEC 61643-21 Standard
- UL497B Listed (TP-ESP-1000-POE)
Applications :
- Wireless Access Points and Client Devices
- IP Phone and Security Camera Systems
- Industrial Control Systems
Specifications
Specifications TP-ESP-1000-POE
| Operating Voltage | Data 5V; POE 48V |
| Clamping Voltage | 70V POE (All 8 Pins) |
| Max Surge Discharge Current | 5KA (8/20us) |
| Peak Pulse Current | 100A (10/1000us) |
| Protection Mode | Differential & Common Mode |
| Insulation Resistance | > 1000 MOhm |
| Shunt Capacitance | < 25 pF |
| Data Rate | 10/100/1000 Mbps |
| Response Time | < 5 ns |
