Tycon Power 100-240VAC Input, 48V Gigabit Passive PoE Injector, 24W, with US Power Cord
- SKU: TP-POE-48G-24W
$20.85 $21.95
- Manufacturer: Tycon Power
- Data Sheet: Download
Product Information
Tycon Power TP-POE-48G-24W
100-240VAC Input, 48V Gigabit Passive PoE Injector, 24W, with US Power Cord

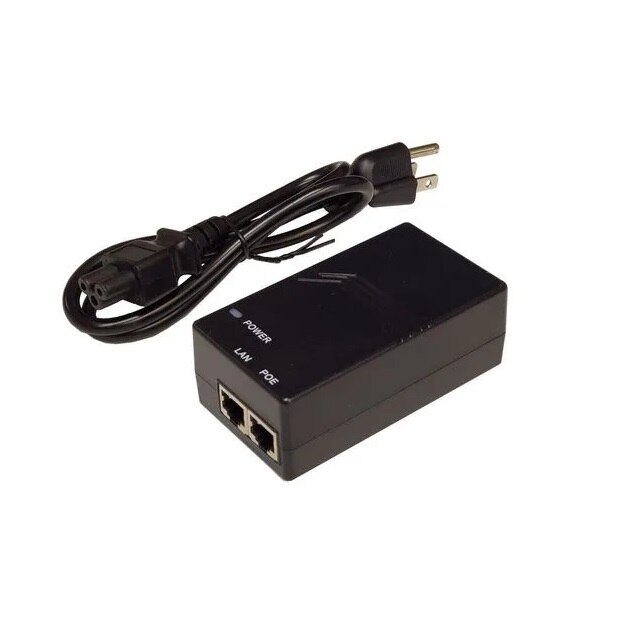

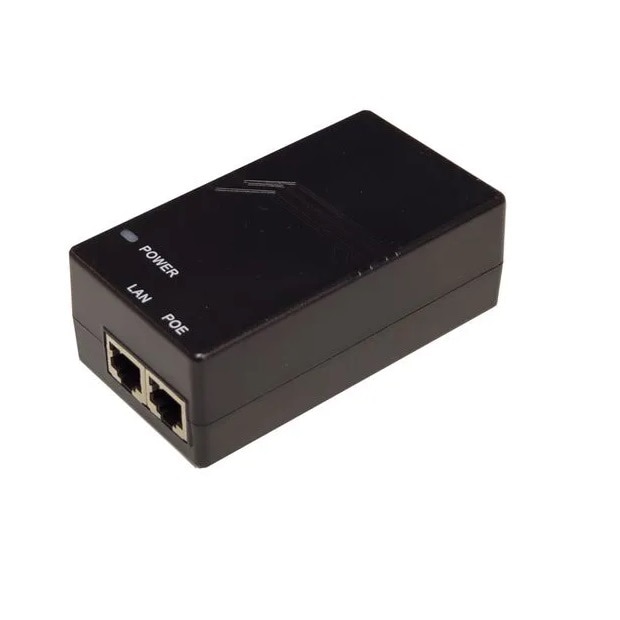

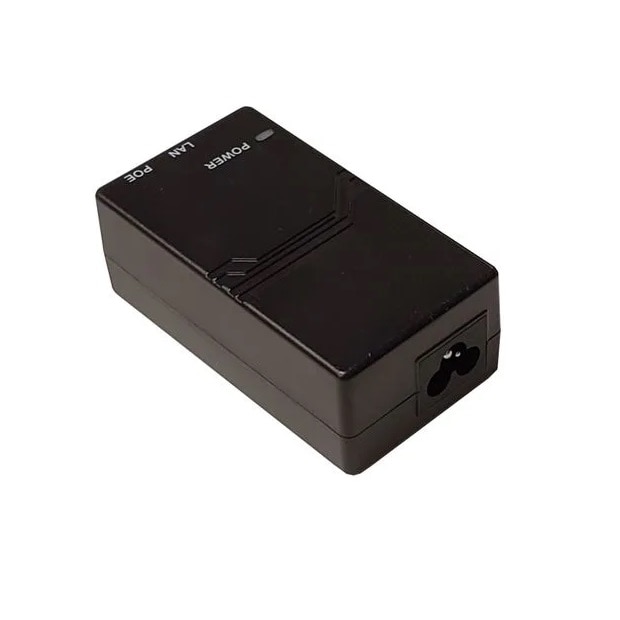

The TP-POE-48G-24W is a compact 10/100/1000MB (GigE) desktop passive PoE inserter with 120/240VAC auto-ranging input. The reliable UL Listed inserter has an output that is Mode B (4,5+ 7,8-) Passive PoE at up to 24W. It comes with a 3 prong 2’ North American power cord with IEC C5 plug.
Features:
- 10/100/1000Mb Data Rate
- CAT5 (or higher) for Gigabit
- Compact Size, Shielded RJ45 Jacks
- I.T.E. Power Supply, UL Listed
Applications:
- Passive PoE Wireless Devices
- Passive PoE Security Cameras
Specifications
Specifications TP-POE-48G-24W
| AC Input Voltage | 100-240VAC 50/60Hz |
| Output PoE Voltage | 48VDC +/-5% Passive PoE, Mode B (Pins 4,5+ 7,8-) |
| Maximum Load | 0.5A (24W) Max |
| Protections | Short Circuit, Overcurrent, Surge/ESD (8kV) |
| Efficiency | 86.2% Minimum, Energy-Efficiency Level VI (DoE VI & ERP VI) |
| Ripple and Noise | 120mV p-p |
| Data Rate | 10/100/1000Mbps (Gigabit Ethernet) |
| No Load Consumption | 0.1W Max |
| Operating Temperature | -20 to +50°C |
| Storage Temperature | -30 to +80°C |
| Operating Humidity | 10% to 90% non condensing |
| Size (L x W x H) | 3.81 x 2.1 x 1.4” (97 x 53.5 x 35.5mm) |
| Weight | 4.7oz (133g) |
| MTBF | 120,000 Hrs |
| Certifications | UL, CE, FCC | IEC 60065, IEC60950, UL60950-1, EN55022, EN55013, EN55024, EN55020, EN61000-4-5, EN61000-4-4, EN61000-4-5 |
| Connectors | RJ45 Shielded Jacks |
| Ethernet Cable Compatibility | CAT5 Gigabit to 100m |
| Warranty | 3 Years |
