Tycon Power Side of Pole Mount for 80W to 280W Solar Panels

(0) No Reviews yet
$237.45 $249.95

Specifications TPSM-80x4-UNI

Typical Solar Panel Size120 to 320W
Solar Panel Mount TypeEdge Clip
Pole Diameter2 to 4.5"
Pole AttachStainless Steel Hose Clamp (5/16" driver)
Wind Speed Rating90mph
Shipping Weight10.6kg (23.3lbs)
Shipping Dimensions1372 x 152 x 127mm (54 x 6 x 5")
Tilt Adjustment15 to 65°

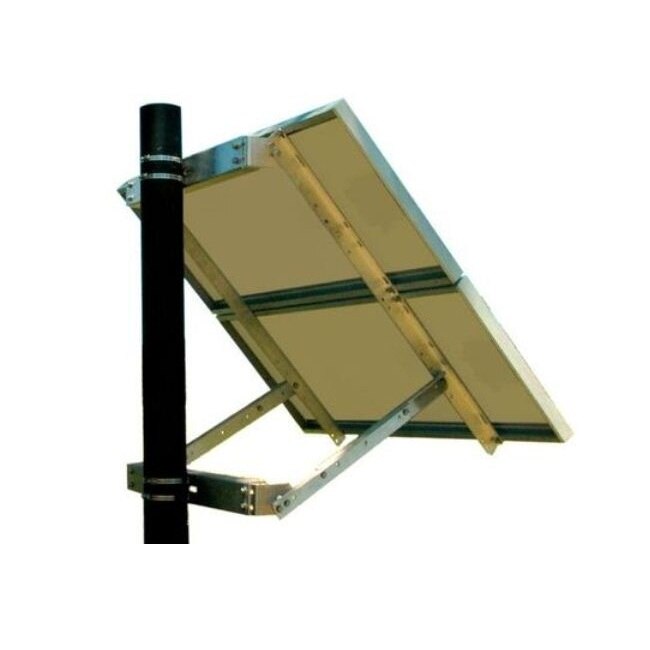

Tycon Power TPSM-80x4-UNI

Side of Pole Mount for 80W to 280W Solar Panels

The TPSM-80x4-UNI side of pole solar panel mounts are designed to be used with Tycon Power Systems solar panels but are flexible in their design and can be used with other manufacturers solar panels. The low cost simple design reduces installation costs. The construction is heavy duty aluminum with all stainless steel hardware for very long service life in the harshest conditions.

Features:

  • Simple, Low Cost Design
  • Flexible Side of Pole Mounting (2" to 4.5" dia. pole)
  • Heavy Duty Aluminum and stainless steel components for long life
  • Simple yet flexible installation
  • Tilt adjustment (15deg to 65deg)
  • 2-4 80W Solar Panels
  • Remote Power Systems
