Tycon Power UPS Pro - 12V Battery, 120W Battery Charger, Solar Ready

(0)No Reviews yet
  • SKU: UPS-PL12-18-120

Out of Stock

Product Information

Tycon Power UPS-PL12-18-120

UPS Pro - 12V Battery, 120W Battery Charger, Solar Ready

The UPSPro® 120W series outdoor enclosures are designed for applications that require a backup power source in order to maintain uninterrupted service to customers. The enclosure is powered from 120/240VAC. It is also solar ready so a solar panel can be added as an alternate power source or to extend backup time. Features include an advanced battery charge controller to protect against over-charging or over-discharging of the valve regulated sealed lead acid AGM batteries. Enclosures have multiple ports for CAT5 cable, antenna cables/connectors or other cabling. They are vented to prevent residual buildup of hydrogen gas.

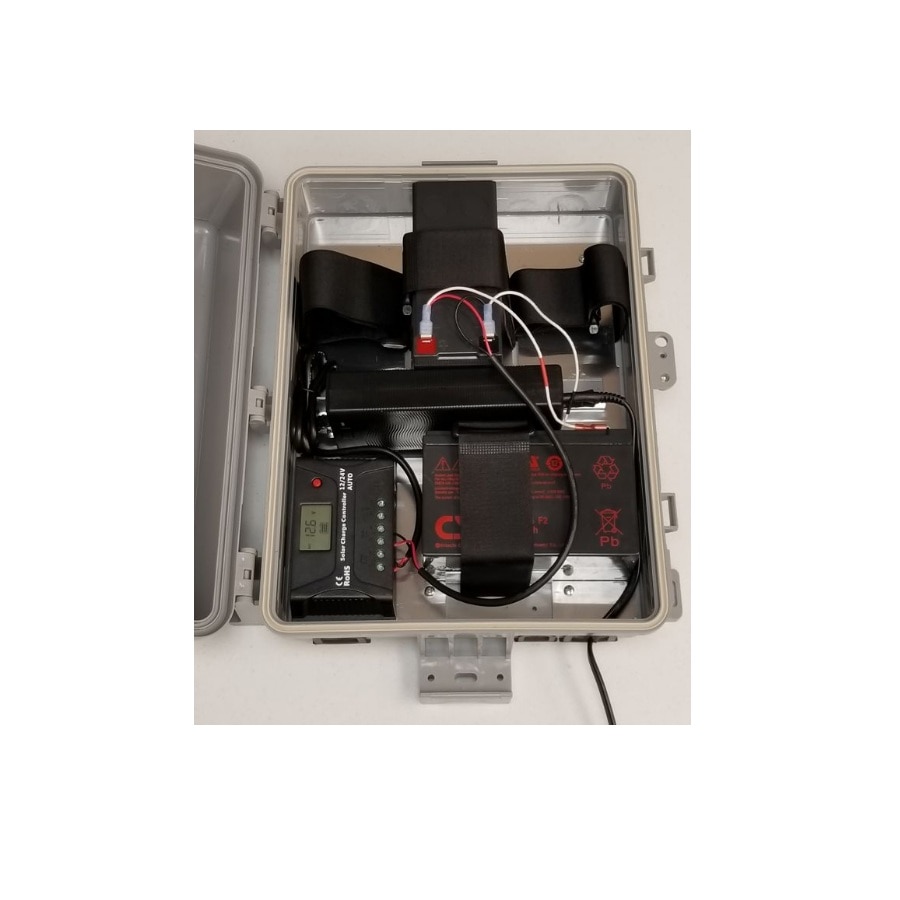

There is some space inside the enclosures for customer electronics such as controllers, wireless AP or CPE cards, sensors, inverters, etc. Equipment runs on battery power which isolates it from power line surges which isa main cause of outdoor equipment failure.

A typical 250mW wireless access point with average power consumption of 4W will run 24 hours on a 9Ah battery at room temperature or 16 hours at -20 deg C.


Features:

  • Weatherproof, UV resistant, outdoor enclosures
  • Powered from AC mains power and/or Solar
  • Interior space for customer electronics

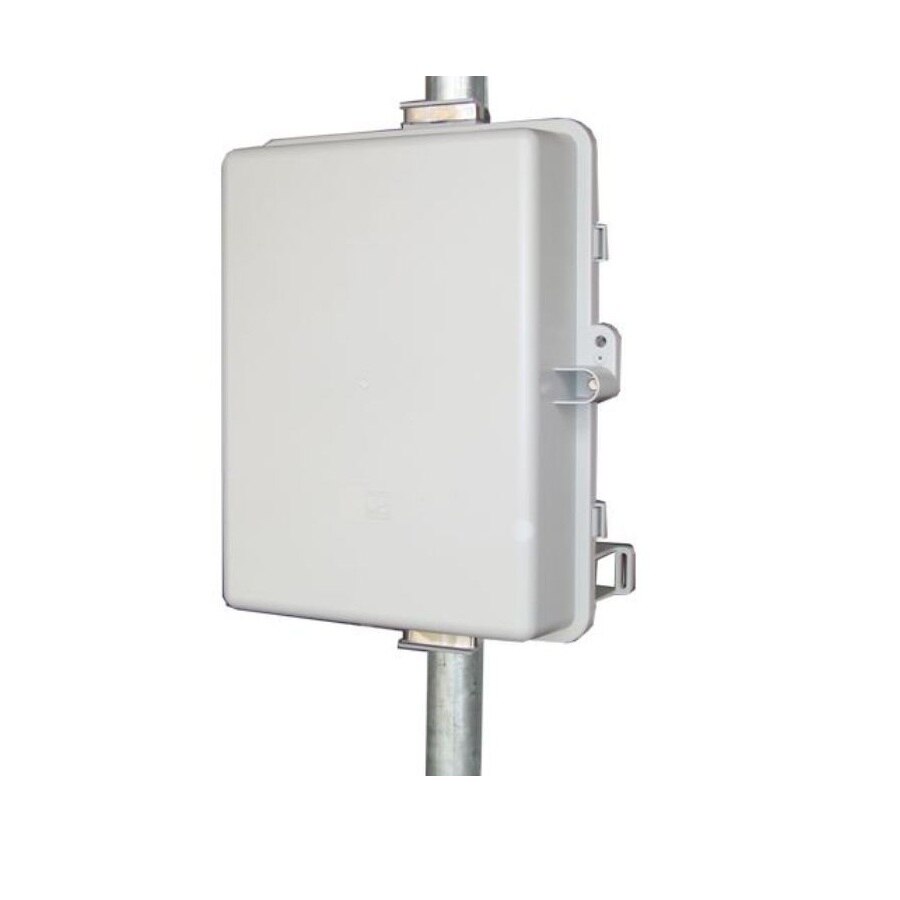

  • Wall or Pole Mounting
  • Isolates Customer Equipment from Power Line Surges
  • High Quality AGM Sealed Lead Acid Batteries
  • Advanced battery charge controller protects against overcharge and over discharge

Specifications

Specifications UPS-PL12-18-120

Battery Voltage (DC) 12V or 24V
Input Voltage (AC) 120/240VAC, 50/60Hz, 2.5A Max.
Available 12V Capacities (Amp Hr) 18Ah(2 batteries), 36Ah(4 batteries)
Avail Storage Capacity (Watt Hr) 216Wh, 432Wh
Max Output Power 120W
Suggested Maximum Load 100W
Maximum Instantaneous Load 20A 500msec
Battery Type Valve Regulated Sealed Lead Acid / Absorbent Glass Mat (AGM)
Battery Life 5 Years
Controller Type 20A PWM Solar Controller with Status Display and Load on/off switch Max Solar Panel Size 160W
Controller Display Status Battery Voltage, Charging Current, Load Current, Temperature
Overcharge Protection 14.4V / 28.8V
Over-discharge protection 11V / 22V
Over-discharge recovery voltage 12.3V / 24.6V
Controller Self Consumption <0.3W
Enclosure Type Polycarbonate
Enclosure External Size 17.5 x 12.5 x 6” (445 x 318 x 152mm)
Enclosure Internal Size 14 x 10 x 5” (356 x 254 x 127mm)
Operating Temperature -30°C to +60°C (-22°F to 140°F)
System Weight (without batteries) 6lb (1.8kg)
Battery Weight (each) 5.5lb (2.5kg)
Certifications Individual components used have CE Certifications. Batteries have CE and UL.
