Tycon Systems USB RS485 Adapter for TP-SC MPPT Controllers

(0)No Reviews yet
  • SKU: TP-SC-USB-RS485
US$‎9.45 US$‎9.95

Out of Stock

50 in stock
Utah
50 In stock

Product Information

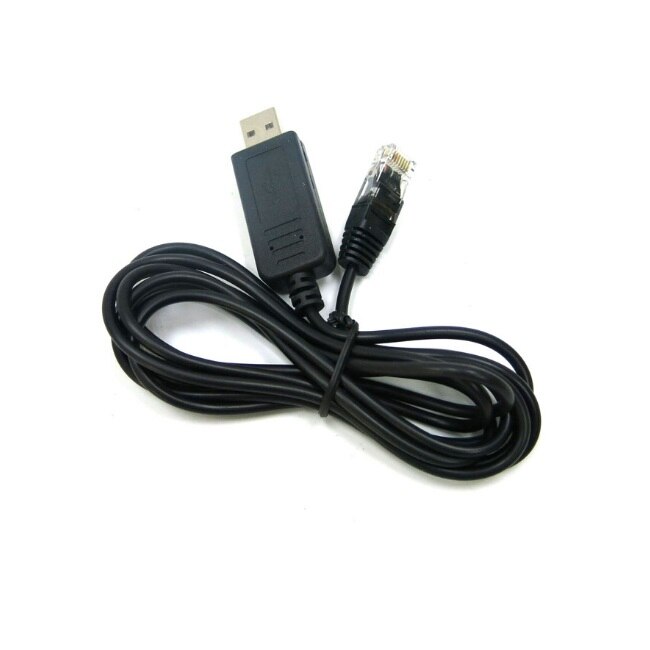

Tycon Systems TP-SC-USB-RS485

USB RS485 Adapter for TP-SC MPPT Controllers

The Tycon Solar™ TP-SC-USB-RS485 USB to RS485 adapters facilitate connectivity between a windows PC and compatible Tycon MPPT solar controllers. Using the MyGreen Solar Monitor windows software, the MPPT solar controller can be setup and monitored via the PC. Data Collection can also be accomplished as long as the software is running and the MPPT Controller is connected to the PC.


Features:

  • Provides Windows PC Connectivity for Tycon RS485 MPPT Solar Controllers
  • Compatible with the following models: TP-SC24-30N-MPPT TP-SC24-60N-MPPT TP-SC48-60P-MPPT
  • Works with MyGreen Solar Monitor PC Software
  • Powers from PC USB Port

Applications:

  • Tycon TP-SCxxxx-MPPT Solar Charge Controllers
  • Remote monitoring and control

Specifications

Specifications TP-SC-USB-RS485

Input Voltage5V
Serial Baud Rate 9600bps(Fixed)
Communication ModeRS485
Connector TypesRJ45 and USB Type A
Cable Length2m (6.5ft)
CertificationsCE, RoHS
Operating Temp-20°C to 50°C (-4°F to 122°F)
Weight56g (2oz)
Warranty3 years
