Tycon Systems 24V 360W Heavy Duty 72 Cell High Efficiency Solar Panel

US$‎427.45 US$‎449.95
  • SKU: TPS-24-360W
  • Manufacturer: Tycon Systems
  • Data Sheet: Download
  • Availability: 466 In Stock    (updated live)
    466 In stock at Utah
US$‎427.45 US$‎449.95

Tycon Systems TPS-24-360W

24V 360W Heavy Duty 72 Cell High Efficiency Solar Panel

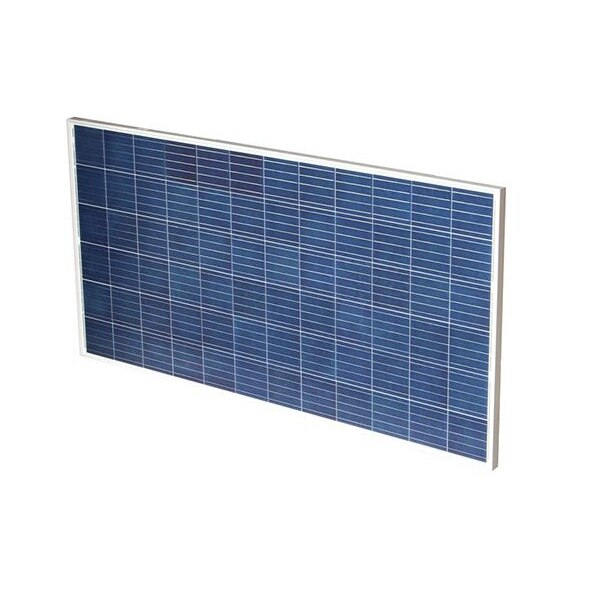

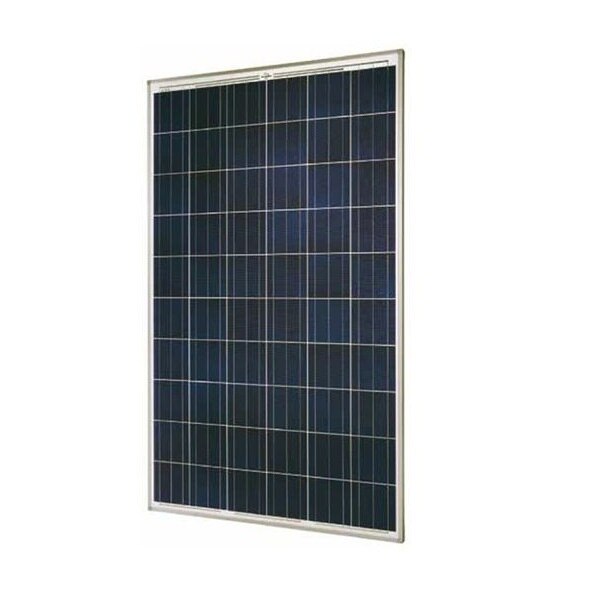

The Tycon Solar TPS-24-360W solar panels are high efficiency 72 cell design with excellent low light performance. The panels are perfect for almost any off-grid or on-grid application.

The monocrystalline silicon solar cells are laminated with a TPT (Tedlar/Polyester/Tedlar) and EVA (Ethylene Vinyl Acetate) bi-layer for high reliability and long life.

The cell array is sealed in a heavy duty extruded type 6063 alloy aluminum frame with a high transparency low iron tempered glass cover, with anti-reflective coating to enhance solar absorption, and protect the solar cells from harsh environments; hail, wind, snow and ice.

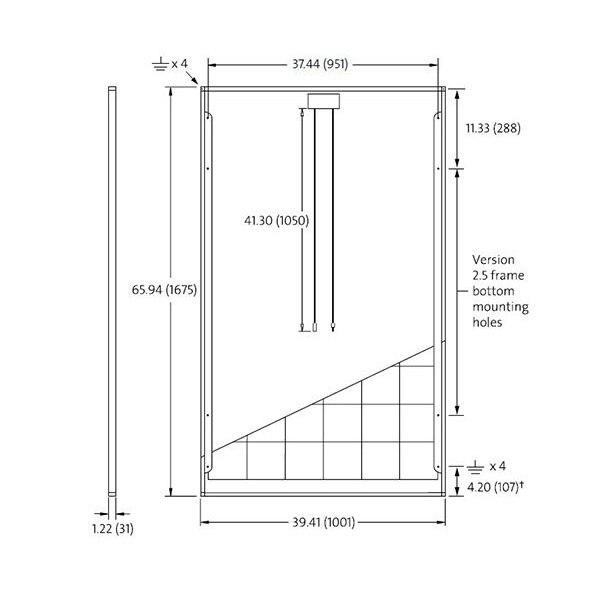

The solar panels are easy to mount because of the aluminum frame design. The wired connections are via a weatherproof junction box on the back of the panels and include attached 1.1 meter outdoor cables terminated with standard MC-4 solar connectors.


Features:

  • Up to +3% Positive Power Output Tolerance
  • Excellent Low Light Performance
  • Extremely Reliable. 5 Year Product Warranty. 25 year solar cell output warranty.
  • High Efficiency with high transparency low iron tempered glass cover. Rugged extruded anodized aluminum frame
  • Sealed for protection from harsh environments

Applications:

  • Off-Grid Systems
  • Wireless Base Stations
  • On-Grid Roof Top Systems
  • Surveillance Cameras
  • Outdoor Lighting
  • Pumping Applications

Specifications TPS-24-360W

Maximum Power (+3%)360W
Voltage at Pmax (Vmp)38.55V
Current at Pmax (Imp)9.34A
Open Circuit Voltage (Voc)47.73V
Short Circuit Current (Isc)9.87A
Module Efficiency18.7%
Short Circuit I Temp Coeff0.039% / °C
Open Circuit V Temp Coeff-0.307% / °C
Output Power Temp Coeff-0.423%/ °C
Wind Survivability225kph (140mph)
Hailstone Survivability1” @ 50mph
Operating Temperature-40 to +85°C
CertificationsUL1703, IEC 61701, IEC 62716, ULC/ORD-C1703:218
Warranty5 Year Product / 25 Year Output
