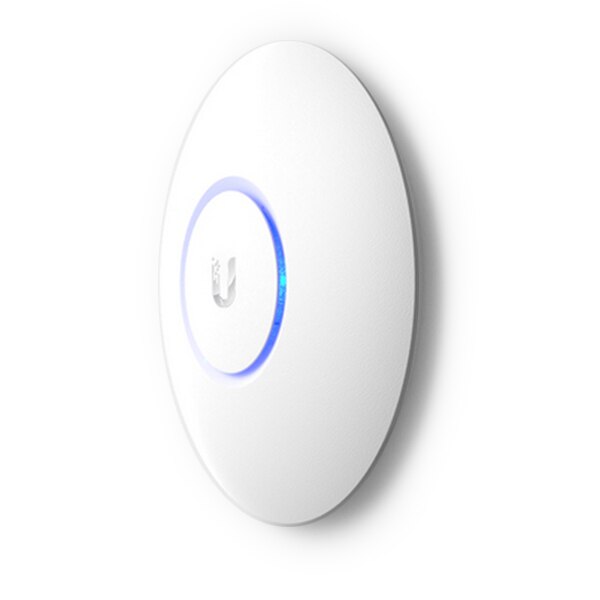

Ubiquiti UniFi AC Lite Dual Radio Access Point
- SKU: UAP-AC-LITE-US
US$89.00
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information
UniFi AC Lite Dual Radio Access Point
Cost-effective 802.11ac
Dual-Radio Performance, Gigabit Speeds
The UniFi AC Lite AP delivers 5x the performance of the first-generation UniFi AP while still maintaining Ubiquiti’s disruptive pricing strategy.
Sleek, Ultra-Compact Design
The UniFi AC Lite AP features a cleaner design in a reduced footprint – half the size compared to the standard UniFi AP.
Designed for Optimal RF Performance
The newly redesigned UniFi Controller optimizes RF performance:
Scalable Enterprise Wi-Fi Management
The UniFi Controller v4 software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralized controller. Remotely access the UniFi Controller to upgrade deployed UniFi APs while in the field.
Specifications
Dimensions | 160 x 160 x 31.45 mm (6.30 x 6.30 x 1.24") |
Weight With Mounting Kits | 170 g (6.0 oz) 185 g (6.5 oz) |
Networking Interface | (1) 10/100/1000 Ethernet Port |
Buttons | Reset |
Antenna | (2) Dual-Band Antennas, 3 dBi Each |
Wi-Fi Standards | 802.11 a/b/g/n/ac |
Power Method | Passive Power over Ethernet (24V), (Pairs 4, 5+; 7, 8 Return) |
Power Supply | 24V, 0.5A Gigabit PoE Adapter* |
Maximum Power Consumption | 6.5W |
Maximum TX Power 2.4GHz 5GHz | 20 dBm 20 dBm |
BSSID | Up to Four per Radio |
Power Save | Supported |
Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
Certifications | CE, FCC, IC |
Mounting | Wall/Ceiling (Kits Included) |
Operating Temperature | -10 to 70° C (14 to 158° F) |
Operating Humidity | 5 to 95% Noncondensing |
VLAN | 802.1Q |
Advanced QoS | Per-User Rate Limiting |
Guest Traffic Isolation | Supported |
WMM | Voice, Video, Best Effort, and Background |
Concurrent Clients | 200+ |
Standard | Data Rates |
802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
802.11ac | 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
802.11b | 1, 2, 5.5, 11 Mbps |
802.11g | 1, 2, 5.5, 11 Mbps |
