Ubiquiti airFiber Dish 5GHz, 34dBi, Slant 45deg

  • SKU: AF-5G34-S45
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • Quick Guide: Download
  • Availability: Call for Availability This item can sometimes be sourced and shipped direct from other locations when out of stock. Email me when this product is in stock!

(click to select)

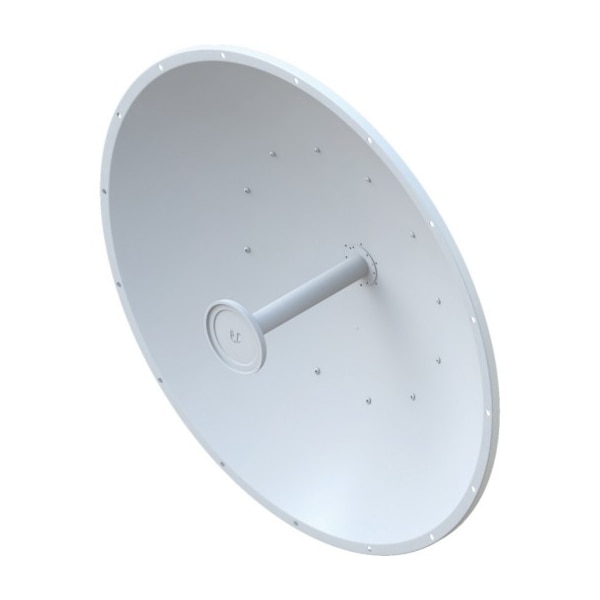

Ubiquiti Networks AF-5G34-S45

Ubiquiti airFiber Dish 5GHz 34dBi Slant 45deg

Operating within the 5.1 to 5.8 GHz frequency the AF-5G34-S45 34 dBi Antenna for airFiber AF-5X 5 GHz Carrier Backhaul Radio from Ubiquiti Networks produces a reliable point-to-point signal complete with a 34 dBi gain. In addition to the strength of the signal, users also benefit from a 90° beamwidth and a wind survivability rating of up to 125 mph. Installation has also been simplified thanks to the included pole mounting kit while the weatherproof design allows the antennas to be deployed nearly anywhere.

Compact Footprint for Deployment Flexibility

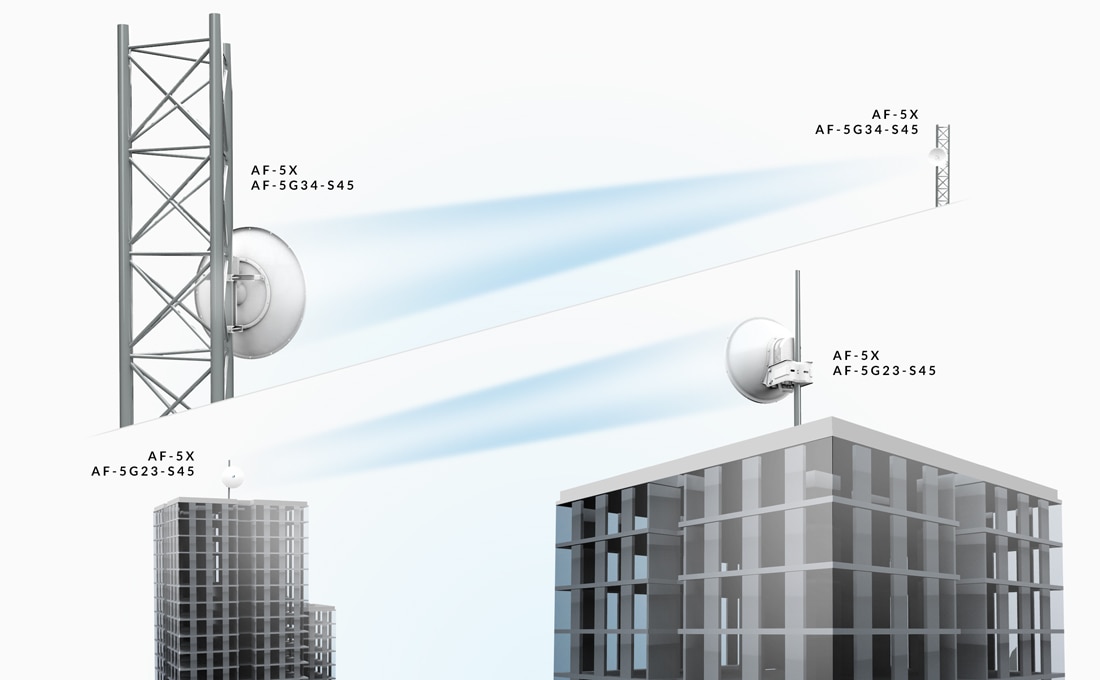

The compact form factor allows the airFiber X Antennas to be used in various applications, from carrier backhauls between towers to PtP bridging between buildings.

Plug and Play Integration

The airFiber X Antennas are designed to integrate seamlessly with the airFiber X radios.

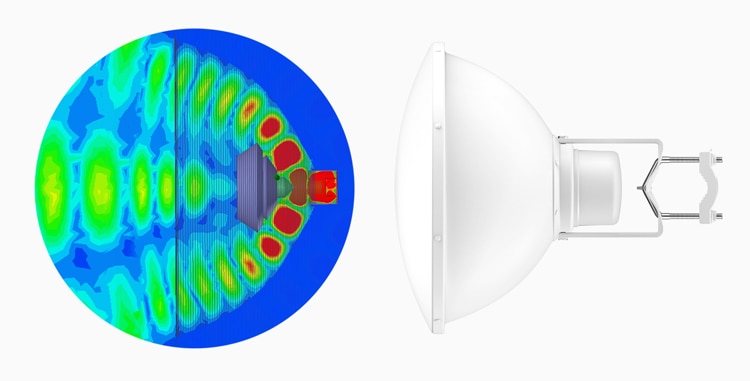

Advanced RF Isolation Design

The innovative industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high‑capacity, multipoint networks.

Specifications AF-5G34-S45

Dimensions1050 x 1050 x 421 mm (41.34 x 41.34 x 16.57")
Weight13.5 kg (29.76 lb) (Mount Included)
Frequency5.1 - 5.8 GHz
Gain34 dBi
Max. VSWR1.4:1
Wind Survivability200 km/h (125 mph)
Wind Loading1,779 N @ 200 km/h (400 lb @ 125 mph)
PolarizationDual Linear
F/B Ratio42 dB
ETSI SpecificationEN 302 326 DN2
MountingUniversal Pole Mount, airFiber Radio Bracket, and Weatherproof RF Jumpers Included
