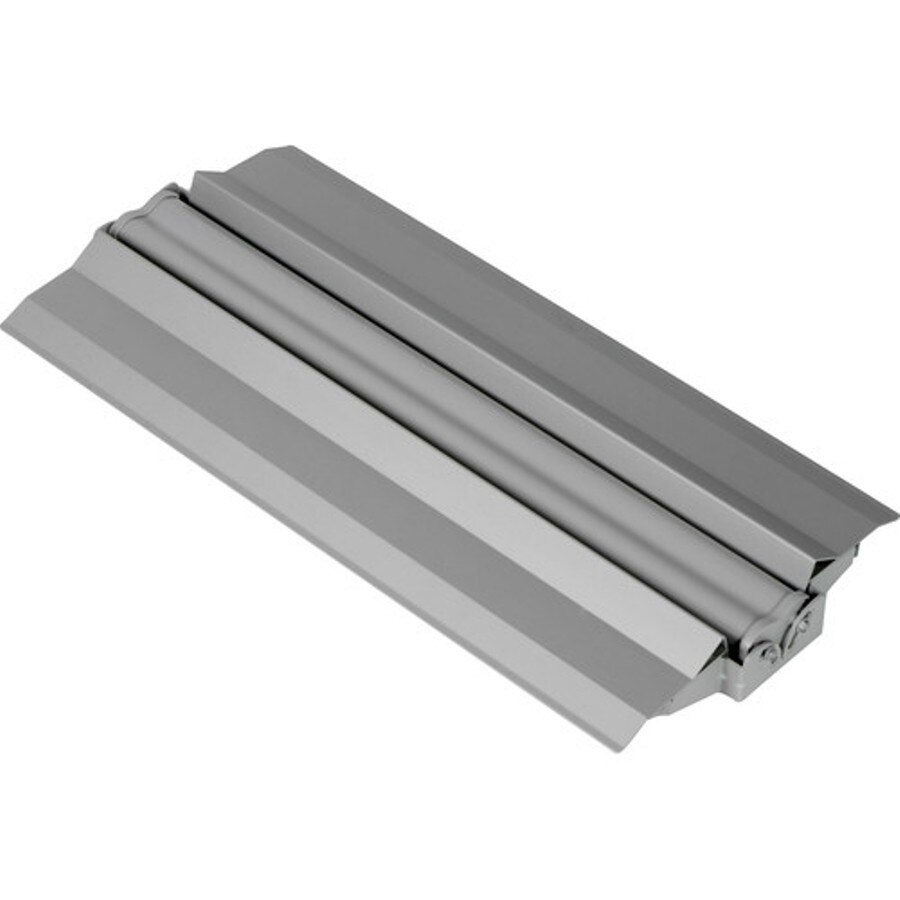

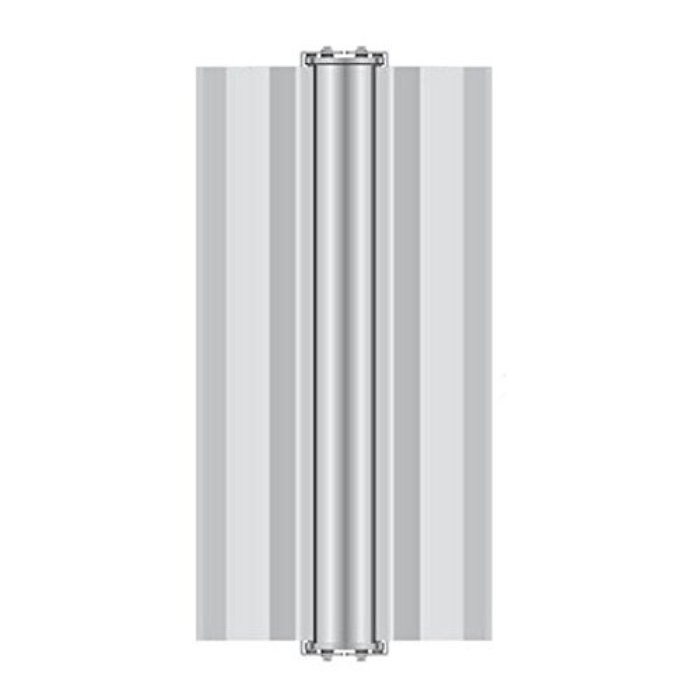

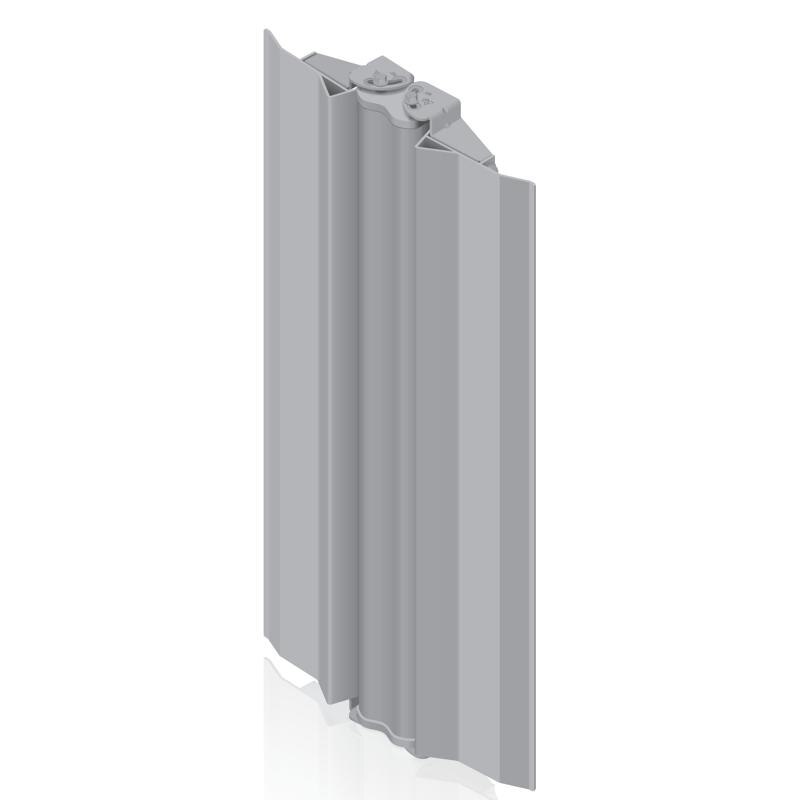

Ubiquiti 2 GHz Variable Beam Sector 60-120 Degree Titanium Sector
Product Information
Advanced Carrier-Class PtMP Basestation Antenna
The airMAX Titanium Sector continues the evolution of Ubiquiti’s best-in-class sector antennas. Advanced RF isolation and variable beamwidth configuration put the Titanium Sector at the forefront of sector antenna technology.
Reduced Co-Location Interference
Drawing on Ubiquiti’s depth of electrical and mechnical engineering expertise, Ubiquiti has developed the airMAX Titanium Sector to be highly resistant to noise interference in co‑location deployments.
Adjustable Beamwidth Configuration
Having adjustable beamwidth options enhances scalability and streamlines inventory. The airMAX Titanium Sector may be custom configured for any deployment requiring a 60˚, 90˚, or 120˚ sector.
Antenna gain increases respectively with each decrease in beamwidth. Gain is 15 dBi at 120˚, 16 dBi at 90˚, and 17 dBi at 60˚.
Increased Performance
The airMAX Titanium Sector was specifically engineered for optimal performance when paired with a Rocket M Titanium.
- 20% increase in performance with PtMP networks
- Up to 90% performance improvement in a co‑location environment
- Increased durability in harsh weather
Easily Mount and Protect Your Rocket

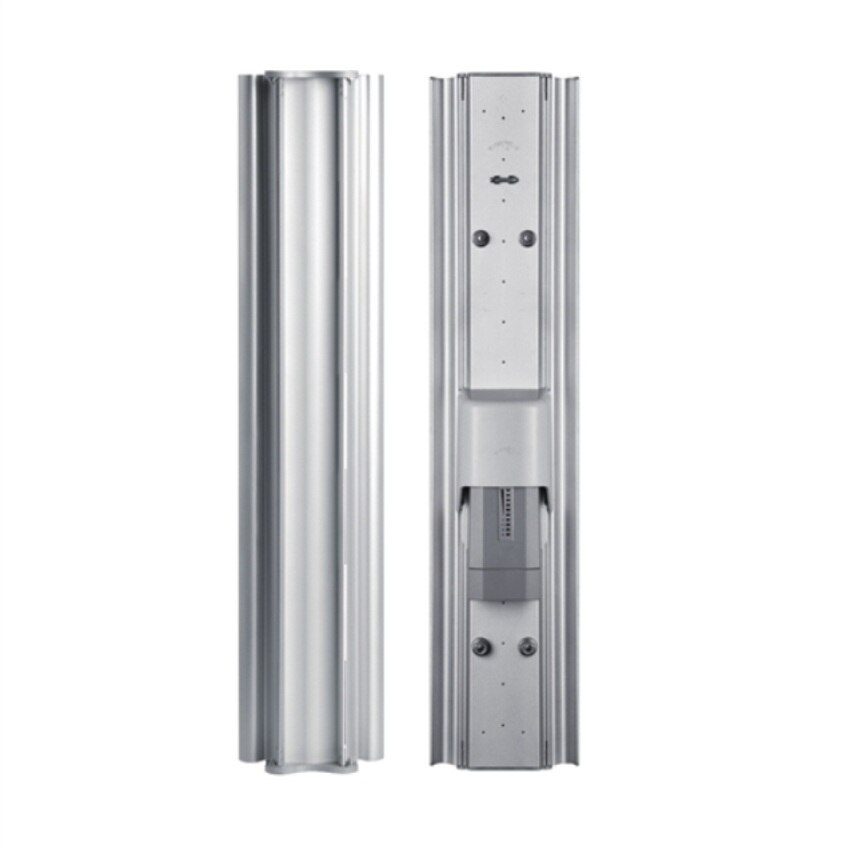

The Titanium Sector has an integrated Rocket mount that allows you to mount the Rocket without the use of any tools. The custom-designed Protective Shroud helps to shield your Rocket from the elements.
Specifications
Specifications AM-V2G-Ti
| Frequency Range | 2.3-2.6 GHz |
| Beamwidth Angles | 60˚, 90˚, 120˚ |
| Gain (Beamwidth Dependent) | 17 dBi @ 60˚, 16 dBi @ 90˚, 15 dBi @ 120˚ |
| Polarization | Dual Linear |
| Cross-pol Isolation | 25dB Typical |
| Max VSWR | 1.5:1 |
| RF Connectors | 2 SMA Connectors (Weatherproof) |
| ETSI Specification | EN 302 326 DN2 |
| Wind Loading | 92 lbs @100 mph |
