Ubiquiti 2.4GHz Bullet M2 HP 802.11b/g/n 600mW
- SKU: BulletM2-HP-US
- Manufacturer: Ubiquiti Networks
- Datasheet: Download
- Availability: Call for Availability This item can sometimes be sourced and shipped direct from other locations when out of stock. Email me when this product is in stock!
Product Information
- Description
- Specifications
Ubiquiti BM2HP

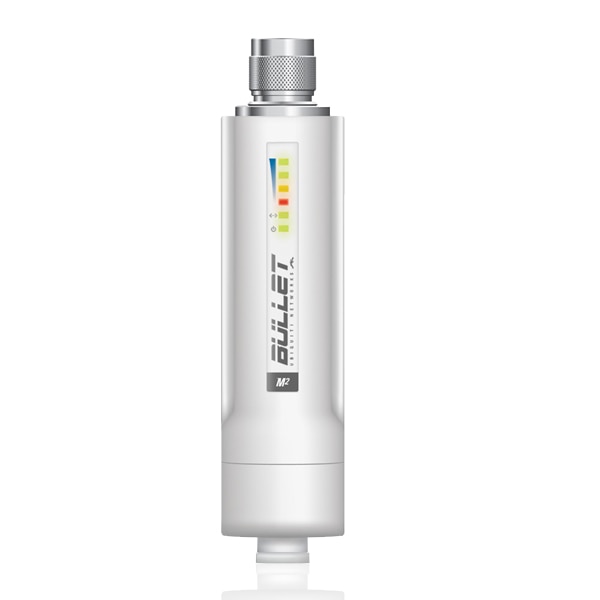

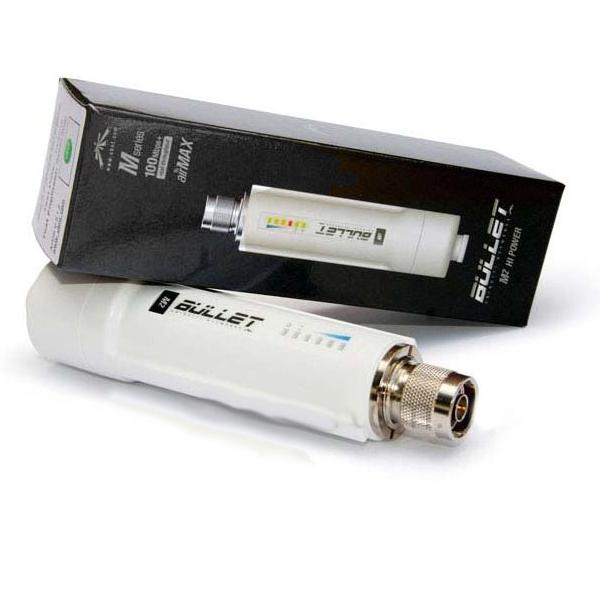

2.4GHz Bullet M2 HP 802.11b/g/n 600mW
(For World Version Please Call for Availability)Launched in 2008, the Bullet™ design helped transform the WISP industry. Its unique design upgrades link performance and reduces deployment complexity.
Carrier-Class Throughput
The Bullet™M delivers up to 100+ Mbps real TCP/IP throughput.

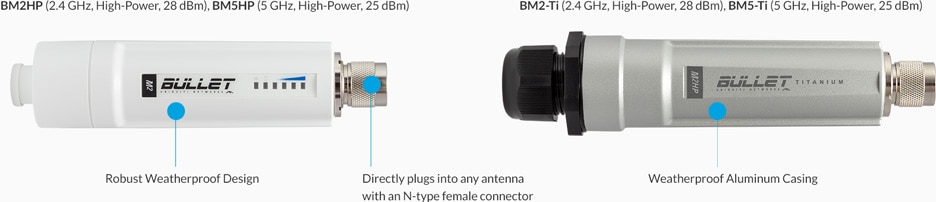

Durability to Last Outdoors
The robust, weatherproof case withstands harsh outdoor conditions.
Powerful Performance
The Bullet™M features up to 600 mW of power and an enhanced receiver design for PtP or PtMP deployment.
Long-Range Links
The Bullet™M provides high performance at a range of up to 50+ km, depending on its antenna.
Advanced Software Technology

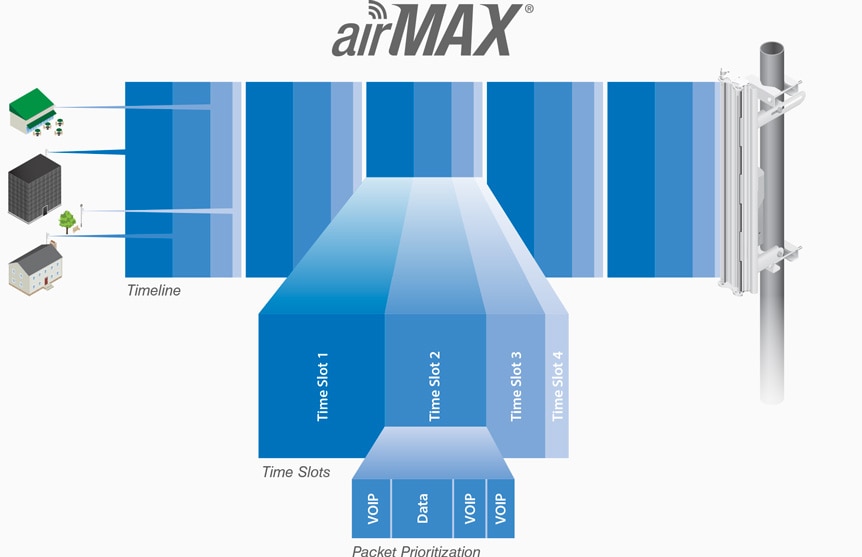

Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Plug and Play Integration

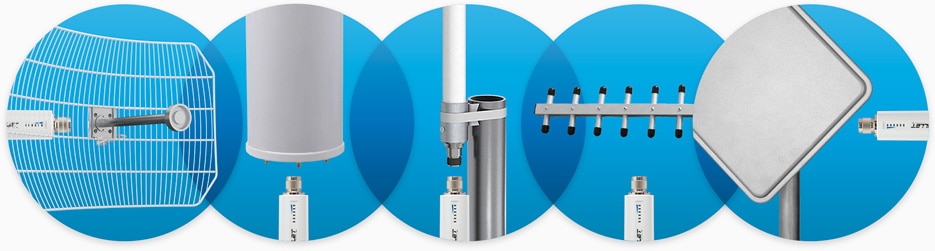

Connect the Bullet™M to any existing antenna with an N-type female connector to create an airMAX® basestation.
Specifications BM2HP
| Processor Specs | Atheros MIPS 24KC, 400MHz |
| Memory Information | 32MB SDRAM, 8MB Flash |
| Networking Interface | 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface |
| Wireless Approvals | FCC Part 15.247, IC RS210, CE |
| RoHS Compliance | YES |
| Outdoor (Antenna Dependent) | Over 50km |
| RF Connector | Integrated N-type Male Jack (connects directly to antenna) |
| Enclosure Size | 15.2cm. length x 3.1 cm. height x 3.7cm. width |
| Weight | 0.18kg |
| Enclosure Characteristics | Outdoor UV Stabalized Plastic |
| Max Power Consumption | 7 Watts |
| Power Rating | Up to 24V |
| Power Method | Passive Power over Ethernet (pairs 4,5+; 7,8 return) |
| Operating Temperature | -40C to +80C |
| Operating Humidity | 5 to 95% Condensing |
| Shock and Vibration | ETSI300-019-1.4 |
