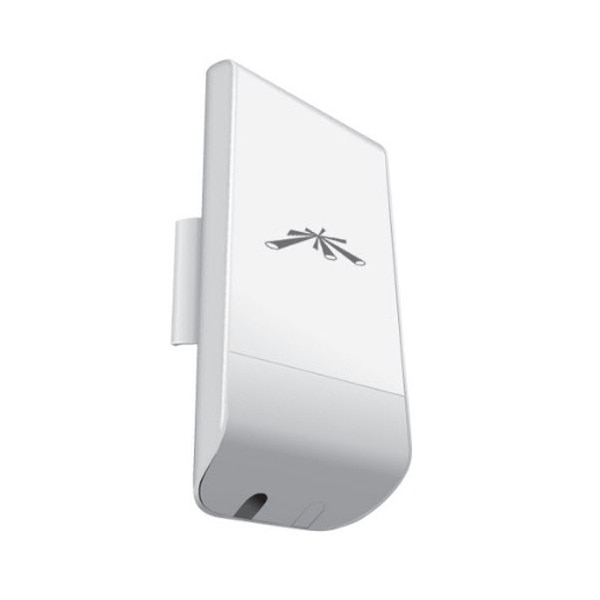

Ubiquiti NanoStation Loco M5: Compact and cost-effective AirMax 5GHz CPE 802.11a/n 200mW
- SKU: LocoM5-INTL
US$67.00
- Manufacturer: Ubiquiti Networks
- Datasheet: Download
Product Information
Ubiquiti Networks LOCOM5 International Version
NanoStation Loco M5: Compact and cost-effective AirMax 5GHz CPE 802.11a/n 200mW(For World Version Please Call for Availability)Performance Breakthrough
150+ Mbps real outdoor throughput and up to 15km+ range. Featuring 2x2 MIMO technology, the new LocoStation M links significantly faster and farther than ever before.
Next-Gen Antenna Design
New antenna array designs featuring 13dBi dual-polarity gain at 5GHz with optimized cross-polarity isolation in a compact form-factor.
Intelligent POE
Remote hardware reset circuitry of LocoStation M allows for device to be reset remotely from power supply location. In addition, any LocoStation can easily become 802.3af 48V compliant through use of Ubiquiti's Instant 802.3af adapter.
Power supply: 110-240VAC 24VDC 0.5A US-style plug
Specifications
Specifications LOCOM5
| Dimensions | 161 x 31 x 80 mm (6.31 x 1.22 x 3.15") |
| Weight | 180 g (6.35 oz) |
| Power Supply (PoE) | 24V, 0.5A |
| Max. Power Consumption | 5.5W |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Operating Frequency | 5170-5875 MHz |
| Gain | 13 dBi |
| Networking Interface | (1) 10/100 Ethernet Port |
| Processor Specs | Atheros MIPS 74Kc, 560 MHz |
| Memory | 64 MB DDR2, 8 MB Flash |
| Frequency | 5 GHz |
| Cross-pol Isolation | 20 dB Minimum |
| Max. VSWR | 1.4:1 |
| Beamwidth | 45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
| Polarization | Dual Linear |
| Enclosure | Outdoor UV Stabilized Plastic |
| Mounting | Pole-Mount (Kit Included) |
| Operating Temperature | -30 to 75° C (-22 to 167° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Wireless Approvals | FCC Part 15.247, IC RS210, CE |
| RoHS Compliance | Yes |
| Shock & Vibration | ETSI300-019-1.4 |
