Ubiquiti PowerBeam M Series, 5 GHz, 22 dBi, with 300mm Dish Reflector

(0) No Reviews yet
  • SKU: PBE-M5-300-US
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • User Guide: Download
  • Availability: 1 In Stock (updated live)
$79.00

Specifications NBE-M5-400

Dimensions325 x 325 x 256 mm (12.80 x 12.80 x 10.08")
Weight1.203 kg (2.65 lb)
Power Supply24V, 0.5A PoE
Max. Power Consumption6W
Operating Frequency WorldwideUSA: U-NII-1 USA: U-NII-2A USA: U-NII-2C USA: U-NII-3 5150 - 5875 MHz 5150 - 5250 MHz* 5250 - 5350 MHz* 5470 - 5725 MHz* 5725 - 5850 MHz*
Gain22 dBi
Networking Interface(1) 10/100 Ethernet Port
Processor SpecsAtheros MIPS 74Kc, 560 MHz
Memory64 MB DDR2, 8 MB Flash
LEDs(1) Power, (1) LAN, (4) WLAN
Signal Strength LEDsSoftware-Adjustable to Correspond to Custom RSSI Levels
Max. VSWR1.5:1
Channel Sizes5/8/10/20/30/40 MHz
PolarizationDual Linear
EnclosureOutdoor UV Stabilized Plastic
MountingPole-Mount (Kit Included)
Wind Loading145.2 N @ 120 km/h (33 lbf @ 75 mph)
Wind Survivability120 km/h (75 mph)
ESD/EMP ProtectionAir: ± 24 kV, Contact: ± 24 kV
Operating Temperature-40 to 70° C (-40 to 158° F)
Operating Humidity5 to 95% Noncondensing
Wireless ApprovalsFCC, IC, CE
RoHS ComplianceYes
Salt Fog TestIEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration TestIEC 68-2-6
Temperature Shock TestIEC 68-2-14
UV TestIEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven RainTest ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5

Ubiquiti PBE-M5-300 PowerBeam M Series, 5 GHz, 22 dBi, with 300mm Dish Reflector

Starting with the first-generation NanoBridge®, Ubiquiti Networks™ pioneered the all-in-one design for an airMAX® product functioning as a CPE (Customer Premises Equipment). Now Ubiquiti Networks launches the latest generation of CPE, the PowerBeam™.

Improved Noise Immunity

The PowerBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

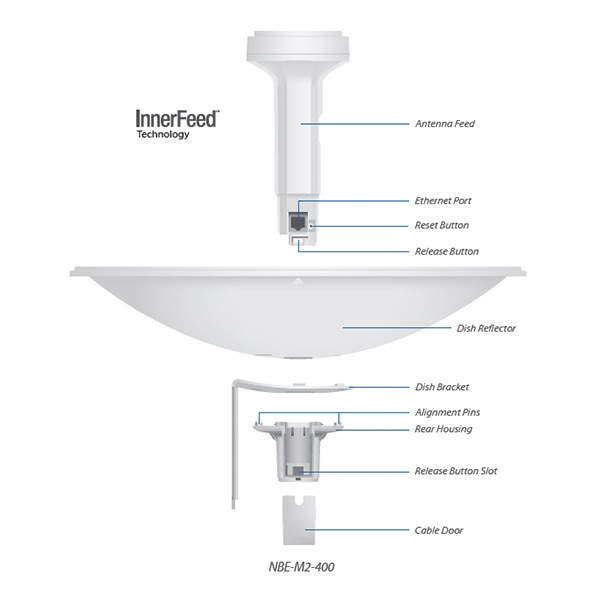

Innovative Mechanical Design

  • Built-in mechanical tilt The mounting bracket conveniently offers 20° of uptilt and up to 20° of downtilt..
  • Quick assembly The number of fasteners was reduced to simplify assembly. Tools are required only when the technician mounts the PowerBeam on the pole.
  • Easy removal The antenna feed can be detached with the push of a button.

Corrosion Resistance

  • Fasteners GEOMET®-coated for improved corrosion resistance when compared with zinc-plated fasteners.
  • Dish and brackets Made of galvanized steel that is powder‑coated for superior corrosion resistance.

Redesigned pole bracket for the 400 mm dish and fender washers for the 300 mm dish prevent paint from being removed from the metal brackets for improved corrosion resistance.

Utilize airMAX Technology

Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.

This “time slot” method eliminates hidden node collisions and maximizes airtime efficiency. It provides significant performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.

Intelligent QoS Priority is given to voice/video for seamless streaming.

Scalability High capacity and scalability.

Long Distance Capable of high‑speed, carrier-class links.
