Ubiquiti UniFi Cloud Key Enterprise

(0)No Reviews yet
  • SKU: CK-Enterprise
$4,999.00
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • Installation Guide: Download

17 In Stock

17 in stock
Mississippi
17 In stock

Product Information

Ubiquiti Networks CK-Enterprise

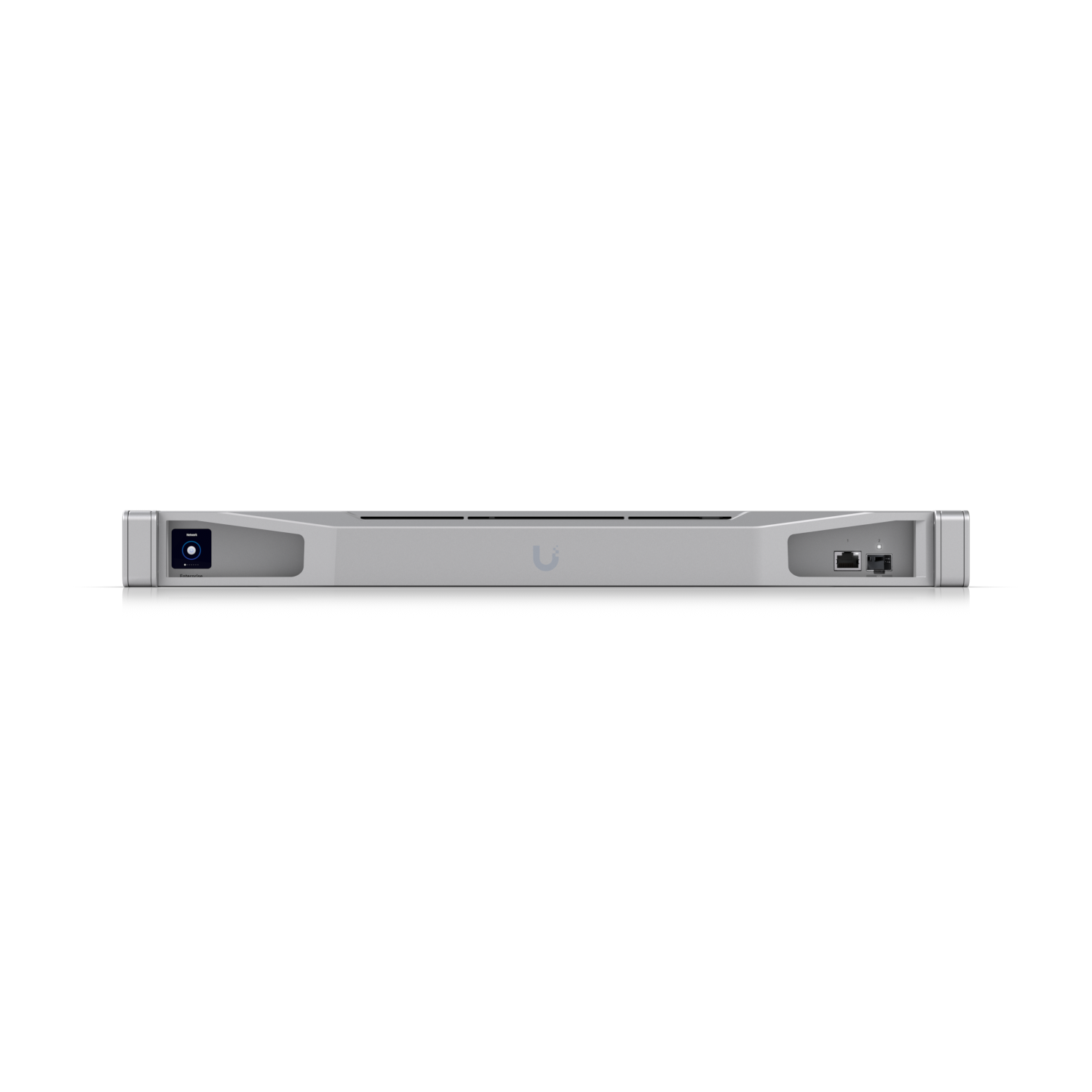

UniFi Cloud Key Enterprise

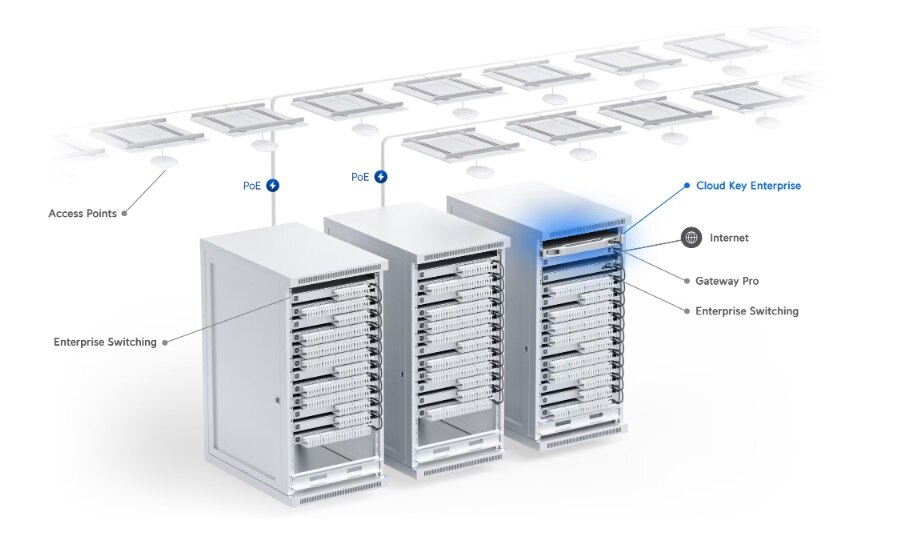

A UniFi Console designed for managing massive-scale UniFi Networks.


Features:

  • Manage 1,000+ UniFi Network devices and 10,000+ clients.
  • (1) 10G SFP+ and (1) GbE RJ45 LAN port.
  • (2) 550W redundant power supply units (PSUs).

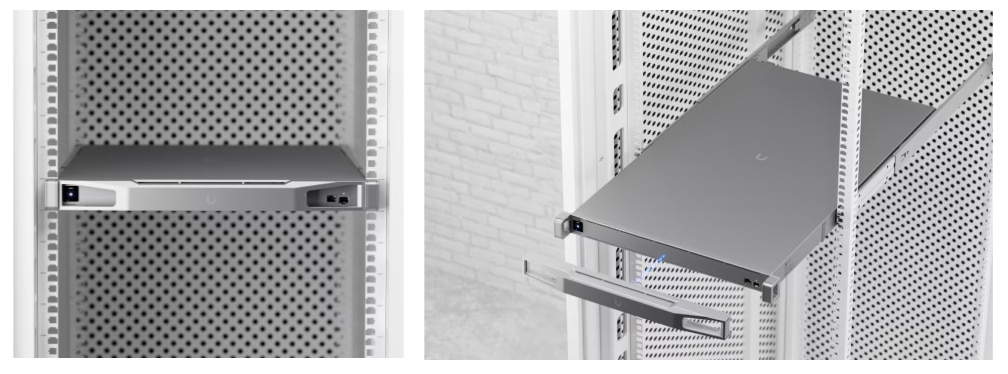

  • Full 1U form factor.
  • Bluetooth for instant setup.

Specifications

Specifications CK-Enterprise

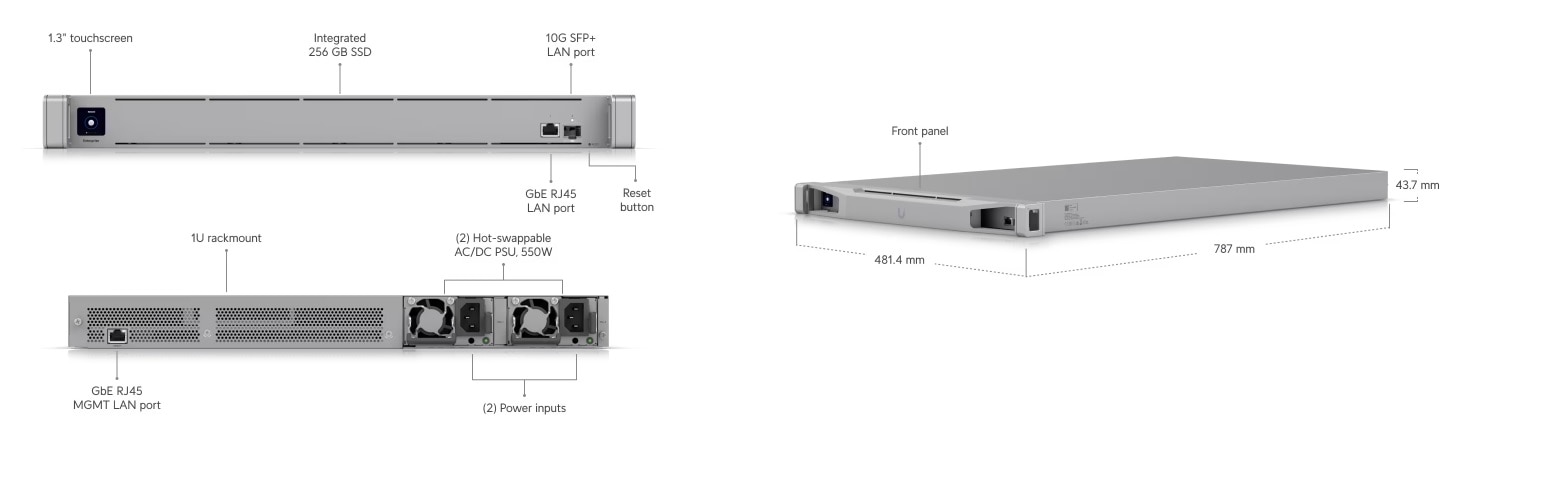

Mechanical
Dimensions787 x 43.7 x 481.4 mm (31 x 1.7 x 19")
Weight13.1 kg (28.9 lb)
Enclosure materialFront panel: aluminium
Chassis: SGCC steel
Mount materialSGCC steel
Hardware
Processor16-core Intel® Xeon®-SP Gold 5218 at 2.3 GHz
Memory(2) 16 GB DDR4 ECC RDIMM
On-board storage(1) 256 GB, M.2 2280 SATA
Management interfaceEthernet
Bluetooth
Networking interface

LAN:
(1) GbE RJ45 port
(1) 10G SFP+ port

MGMT LAN:
(1) GbE RJ45 port

Power methodUniversal AC input, 100—240V AC, 7A Max, 50/60 Hz

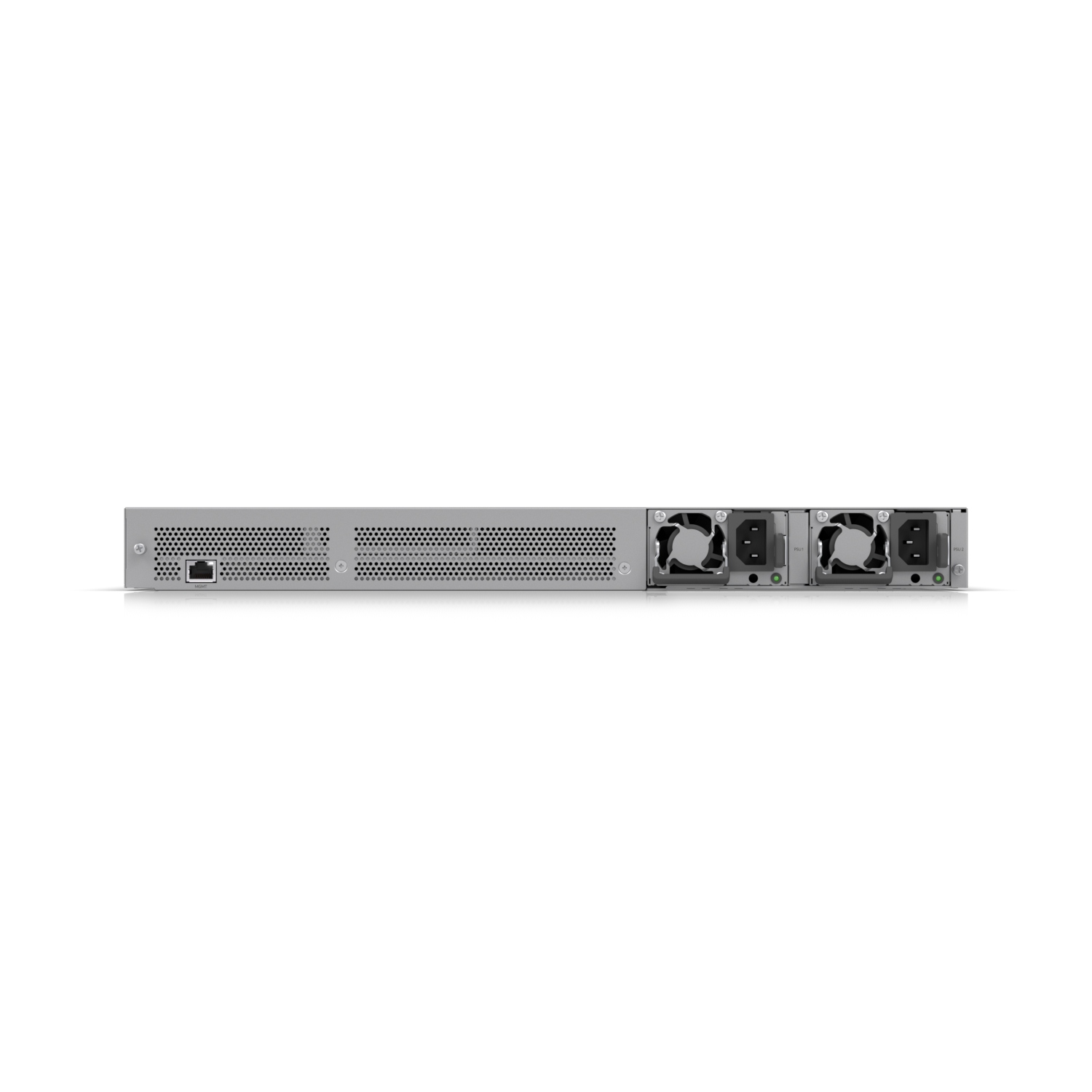

Power supply(2) Hot-swappable AC/DC PSU, 550W
LCM display(1) 1.3" touchscreen
ButtonFactory reset
Ambient operating temperature0 to 35° C (32 to 95° F)
Ambient operating humidity8 to 90% noncondensing
CertificationsCE, FCC, IC
LEDs
EthernetWhite: link/activity
SFP+White: link/activity
Power supplyOff: no AC power present
Steady green: AC power and DC output active
Flashing green: AC power present and DC output inactive
Steady amber: AC power lost/failure events
Flashing amber: warning events
UniFi NetworkVersion 7.3.83 and later
