Ubiquiti 5GHz LiteBeam ac Long-Range 26dBi

(0) No Reviews yet
  • SKU: LBE-5AC-LR-US
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • User Guide: Download
  • Availability: 101 In Stock (updated live)
$109.00

Specifications LBE-5AC-LR-US

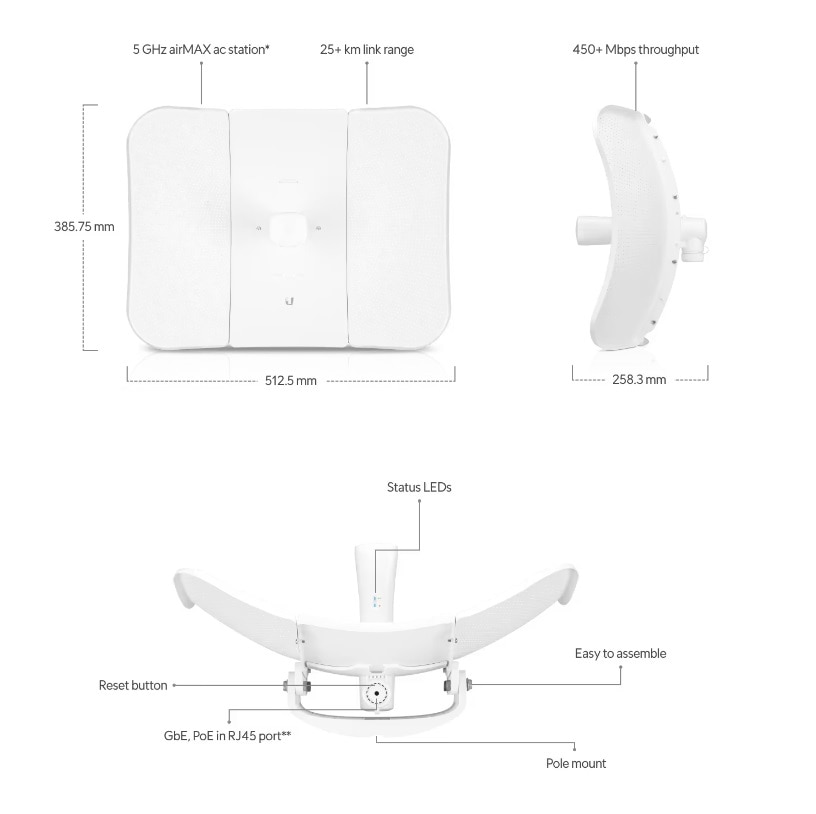

Dimensions 512.5 x 385.75 x 258.3 mm
(20.18 x 15.19 x 10.17")
Weight
Without Mount
With Mount
1.360 kg (2.998 lb)

1.735 kg (3.825 lb)
Power Supply 24V, 0.3A Gigabit PoE Adapter (Included)
Max. Power Consumption 7W
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range 24V ± 10%
Gain 26 dBi
Networking Interface (1) 10/100/1000 Ethernet Port
Processor Specs MIPS 74Kc
Memory 64 MB DDR2
LEDs Power, Ethernet
Channel Sizes PtP Mode  10/20/30/40/50/60/80 MHz
PtMP Mode 10/20/30/40 MHz
Enclosure Characteristics Reflector (Aluminum) / Plastic: PC
Mounting Pole-Mounting Kit (Included)
Wind Loading 550 N @ 200 km/h (123.6 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
ESD/EMP Protection ± 24 kV Contact / Air
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
Operating Frequency (MHz)
Worldwide 5150 - 5875
US/CA U-NII-1: 5150 - 5250 U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850
Management Radio (MHz)
Worldwide 2412 - 2472
US/CA 2412 - 2462

Ubiquiti Networks LBE-5AC-LR-US

5GHz LiteBeam ac Long-Range 26dBi

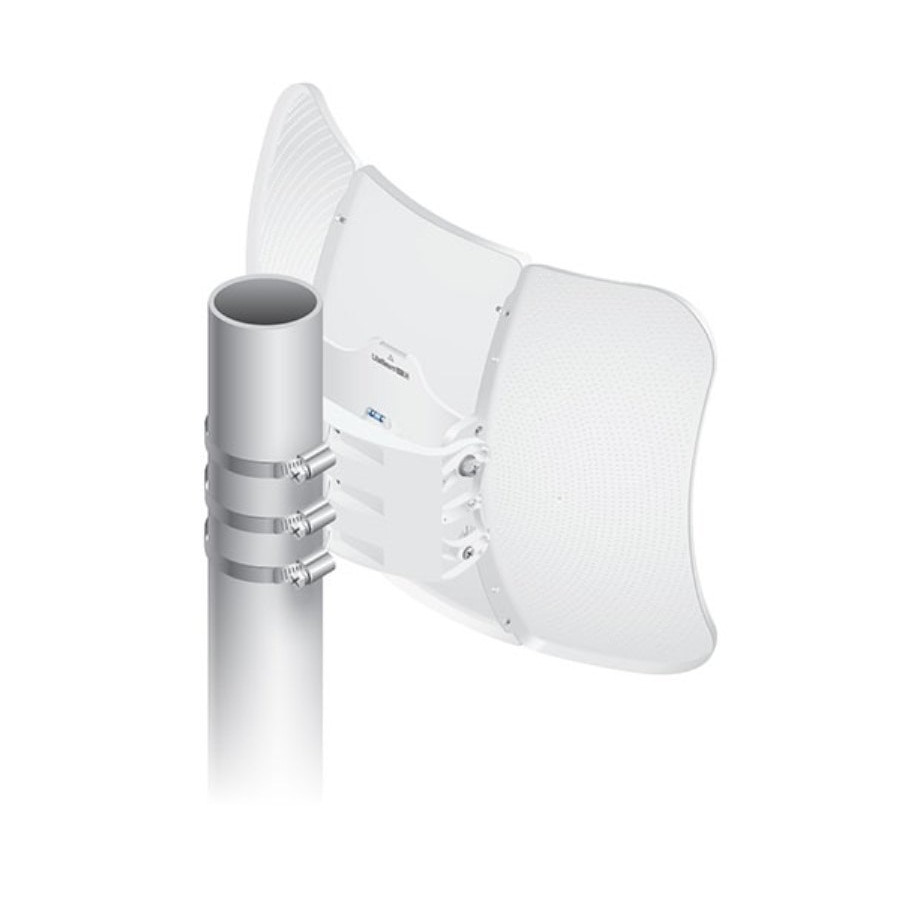

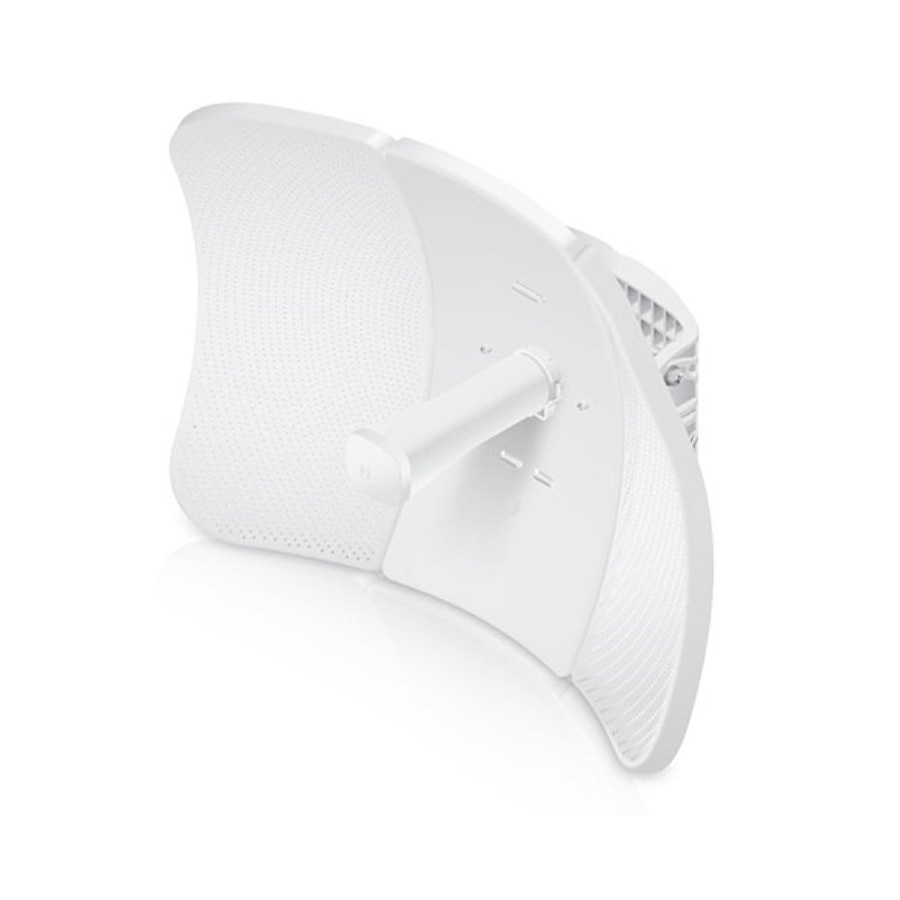

Designed for long-range applications, the Ubiquiti airMAX LiteBeam 5AC LR features a larger reflector size and elevation adjustment (azimuth is adjusted by rotation around the pole).

Ubiquiti Networks launches the latest generation of airMAX® CPE (Customer Premises Equipment), the LiteBeam® 5AC Gen 2, with dedicated Wi-Fi management. Improved Noise Immunity The LiteBeam 5AC Gen 2 directs RF energy in a tighter beamwidth. With the focus in one direction, the LiteBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency. The LiteBeam 5AC Gen 2 offers quick and easy alignment and enhanced protection against power surges.


Features:

  • Lightweight, Low-Cost Solution
  • Full Adjustment Flexibility
  • Quick Assembly and Installation

Magnetic antenna kit

  • 2 x LTE magnetic antenna with 3m cable (product code: 003R-00229)
  • 2 x Wi-Fi magnetic antenna with 1.5m cable (product code: 003R-00230)
  • 1 x GPS antenna with 3m cable (product code: 003R-00211)
