Ubiquiti 29dBi 5GHz LTU XR CPE PtMP Wireless Antenna

(0)No Reviews yet
US$‎129.00
  • SKU: LTU-XR-US
Call for Availability

Product Information

Ubiquiti Networks LTU-XR-US

29dBi 5GHz LTU XR CPE PtMP Wireless Antenna

5 GHz LTU® client that establishes extremely long-distance wireless links with an LTU Rocket serving as its base station.

The LTU XR is a high-performance, cost-effective PtMP CPE for wireless ISPs that can reach up to a 550 Mbps throughput rate. The LTU XR also facilitates independent transmission and receives channel frequency configurations anywhere within its radio band to avoid local interference and ensure superior client performance. Additionally, the LTU XR is equipped with a Bluetooth management radio so it's easy to set up and configure with the UISP® Mobile app.

Features:

  • Proprietary Ubiquiti LTU core processor
  • Long-range, 29 dBi antenna with InnerFeed® technology
  • High data and performance rate (1024 QAM)
  • Link range up to 35 km
  • Channel width flexibility (10/20/30/40/50 MHz bandwidth)
  • Central configuration management from the AP side
  • Frequency splitting
  • Router mode support
  • Integrated GPS
  • Link planning support via ISP Design Center
  • Quick, Bluetooth-powered setup with the UISP Mobile app

Works with Ubiquiti Internet Service Provider (UISP®) application

  • Centrally manage your networks and clients with ease.
  • Organize your clients' plans, set up billing and invoicing, and grow your customer base.
  • View network topology, advanced data analytics, and more.
  • Set up devices quickly and manage them on the go with a powerful mobile app.

Specifications

Specifications LTU-XR-US

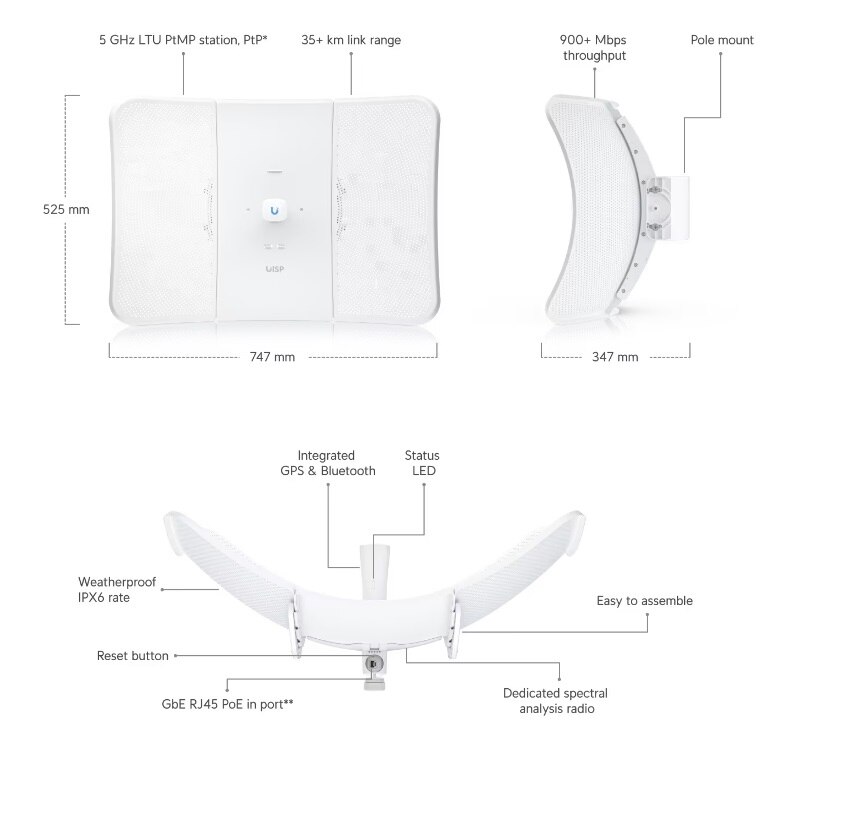

Dimensions747 x 525 x 347 mm (29.41 x 20.67 x 13.66")
Weight3.2 kg (7.06 lb)
Enclosure materialsAluminum alloy, UV stabilized polycarbonate
Mount materialUV stabilized polycarbonate

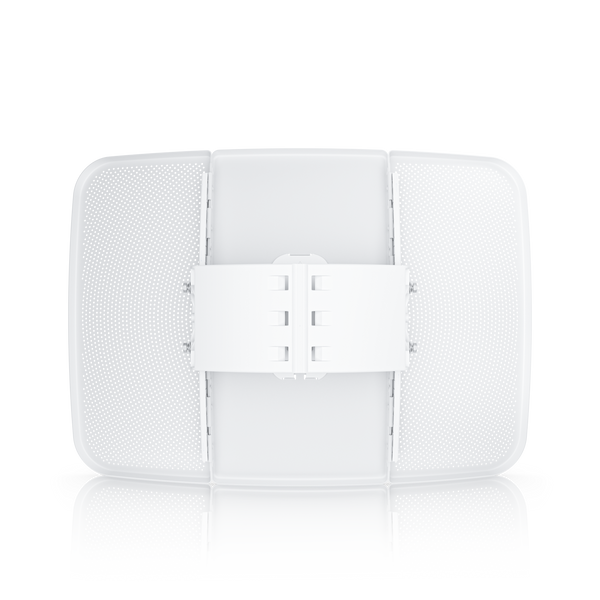

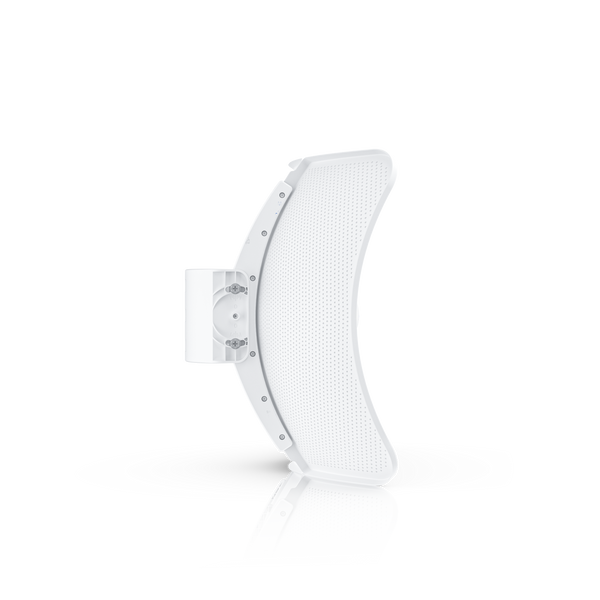

MountIntegrated pole mount (included)
Pole compatibilityØ35-60 mm (Ø1.38-2.36")
Wind loading1100 N at 200 km/h (247.29 lbf at 125 mph)
WeatherproofingIPX6
Hardware
Networking interfaces(1) GbE RJ45 port
ButtonFactory reset
LEDsPower/ethernet
RF connectionsInternal
Max. power consumption8.5W
Power methodPassive PoE 2-pair (4, 5+; 7, 8-)
Power supply24VDC, 0.5A Gigabit PoE adapter (included)
Supported voltage range22 to 26VDC
Operating temperature-40 to 55° C (-40 to 131° F)
Operating humidity5 to 95% non-condensing
CertificationsFCC, IC, CE
System
Maximum throughput550 Mbps
EncryptionWPA2-PSK (AES)
Uplink/downlink ratio25/75, 33/67, 50/50
Software
OSairOS®
ModesPtMP CPE only
ServicesSNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog
UtilitiesairView®, speed test, alignment, discovery, ping, traceroute, cable test, constellation
Auto distance adjustmentYes
Auto power adjustmentYes
NetworkRouter mode
SecurityYes
Statical reportingYes
Management interfaceBluetooth management for easy setup over UISP App WEB UI
Minimum software requirementsModern Web browser or Android/iOS smartphone
RF
Operating frequency*5.15 to 5.95 GHz * Depends on regulatory region.
Max. conducted TX power25 dBm
Channel bandwidth10/20/30/40/50 MHz
Antenna Gain29 dBi
Isolation20 dB
BeamwidthHPOL: 3 dB: 5.5°, 6 dB: 7.5° VPOL: 3 dB: 5.5°, 6 dB: 7.5° Elevation: 3 dB: 5.5°, 6 dB: 7.5°
Electrical downtilt
