Ubiquiti UniFi Access Gate Hub
- SKU: UA-Hub-Gate
$279.00
- Manufacturer: Ubiquiti Networks
- Installation Guide: Download
Product Information

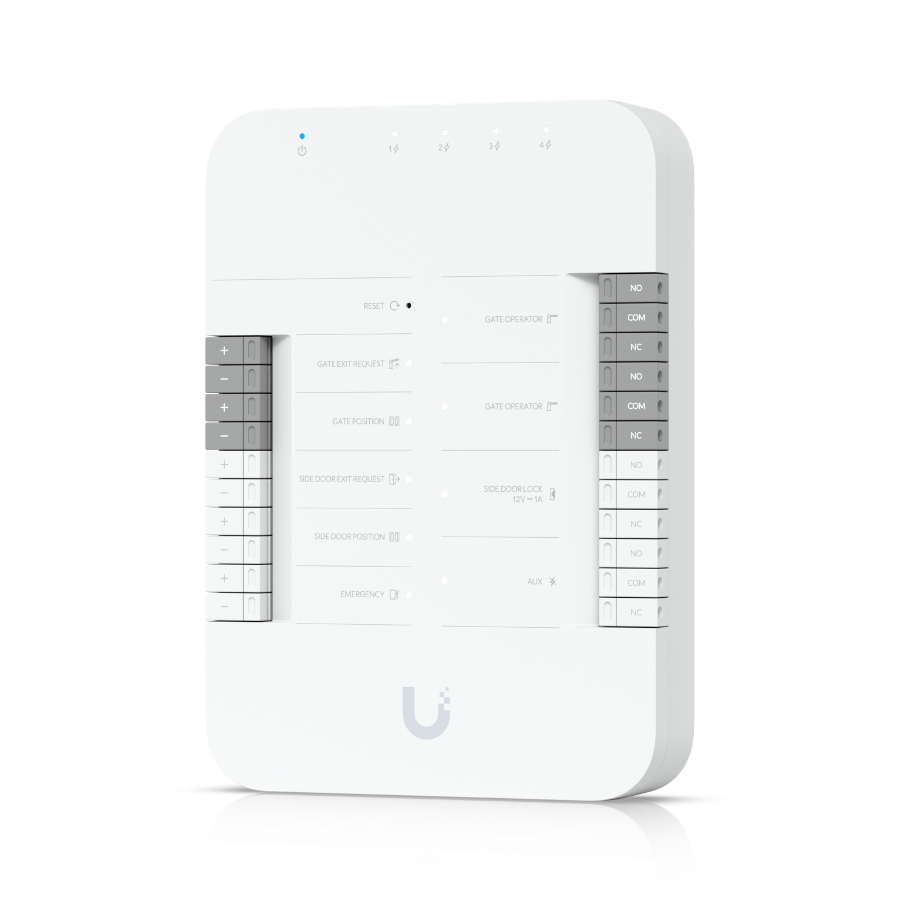

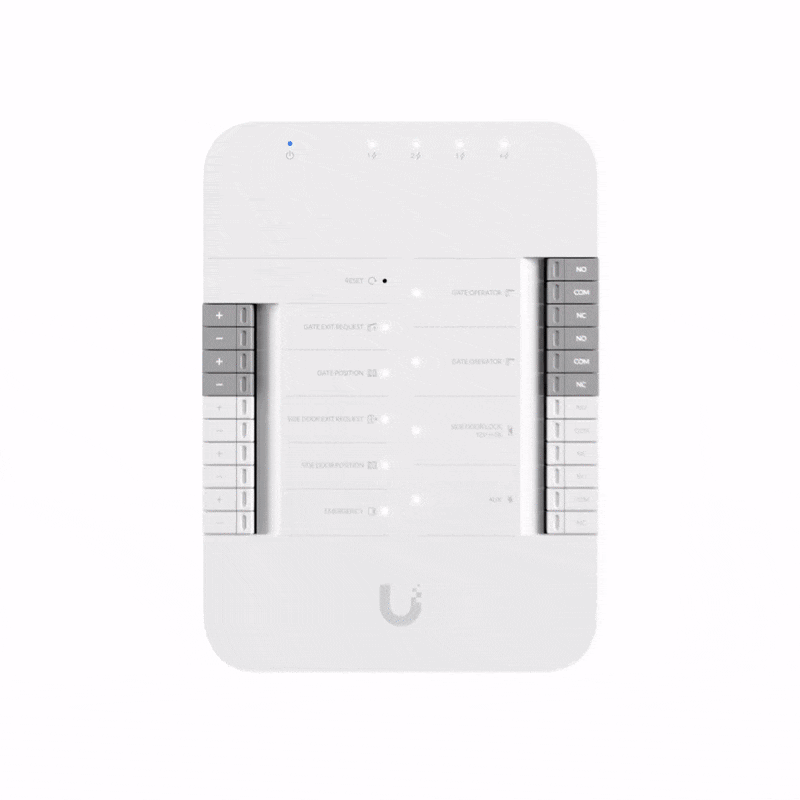

Ubiquiti Networks UA-Hub-Gate
UniFi Access Gate Hub
An advanced Gate Hub enabling seamless gate access control via connected Access readers or Intercom.

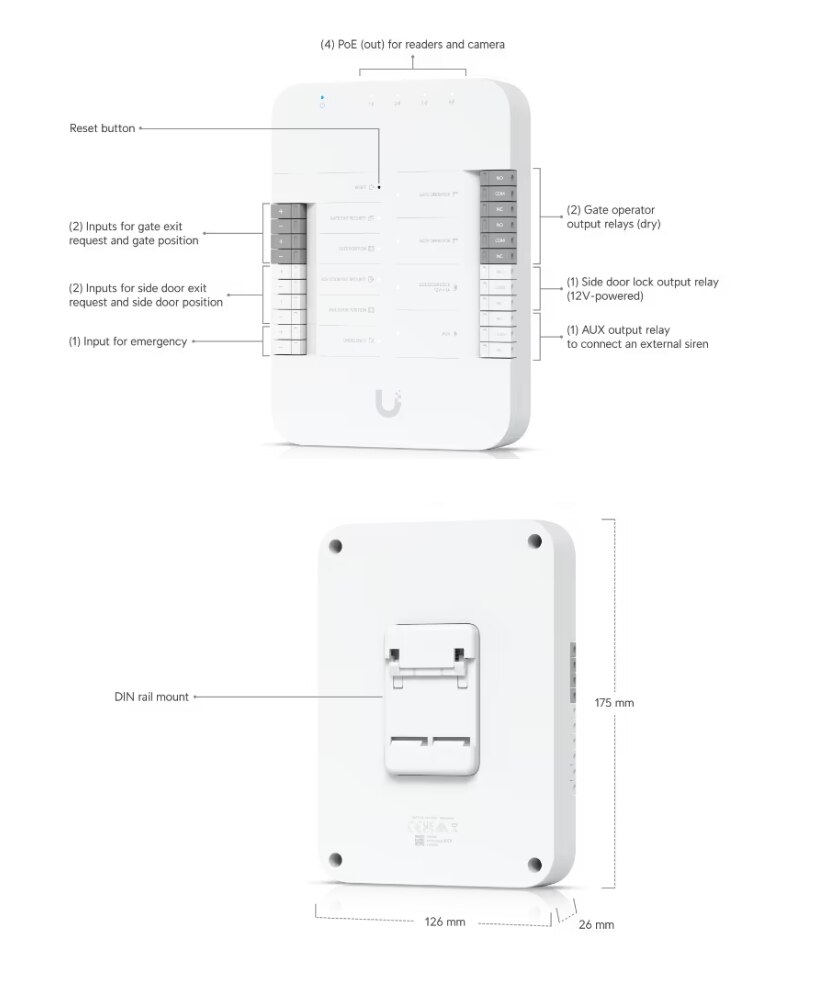

Features:
- (2) Gate operator terminals (dry)
- (1) Lock terminal (12V) for side door
- (1) AUX terminal for an external siren
- (5) Additional inputs (sensors and emergency)
- License plate unlock (when paired with AI Camera)
- Connect and power using PoE++
- Connect up to four UniFi Access readers or UniFi Protect cameras
- Optional LPR Cameras: UVC-AI-Turret, UVC-AI-LPR, UVC-AI-Dome, UVC-AI-DSLR, UVC-AI-Pro, UVC-AI-Theta, UVC-AI-Bullet
Specifications
Specifications UA-Hub-Gate
| Mechanical | |
| Dimensions | 175 x 126 x 26 mm (6.9 x 5 x 1") |
| Weight | 460 g (1 lb) |
| Enclosure material | Polycarbonate |

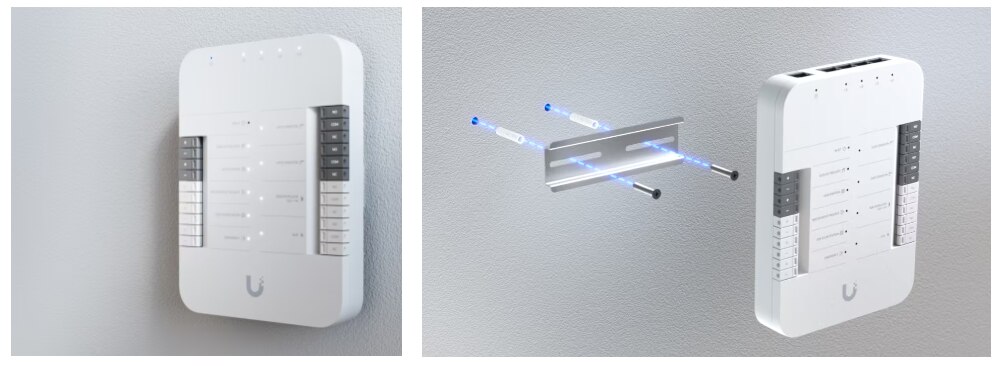

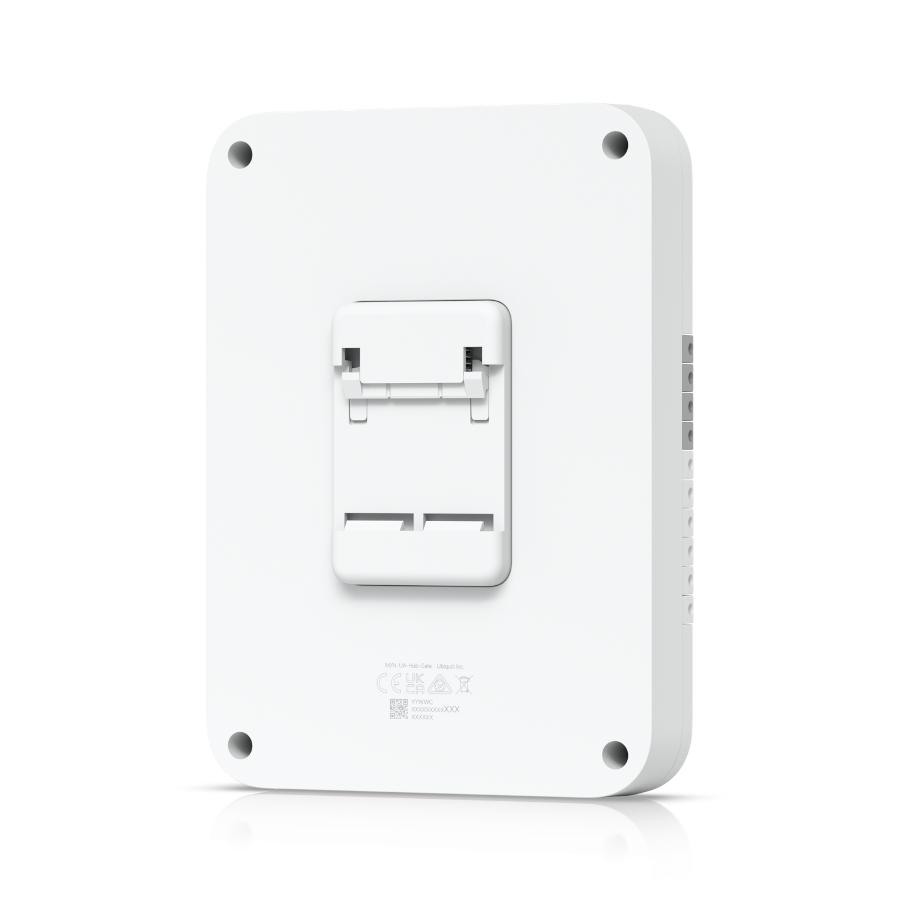

| Mounting | Din-rail (Included) |
| Hardware | |
| Networking interface | (5) 10/100/1000 Base-T |
| Power method | PoE++ |
| Max. power consumption | Without PoE output: 22W With PoE output: 50W |
| PoE input | 50V DC, 1A |
| PoE output | PoE passthrough, (4) PoE, 50V DC, Max. 28W |
| LEDs | White/blue (Learn more) |
| Button | (1) Factory-reset |
| Digital input | Gate exit request, gate position, side door exit request, side door position, emergency |
| Dry output relay | (2) Operator: rated 30V DC, up to 1A (1) Aux: rated 30V DC, up to 1A |
| Output relay | Side door lock: 12V DC, up to 1A |
| PoE cabling requirements | Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable. |
| Operating environment | Indoor use only with device itself Outdoor use with waterproof junction box |
| Ambient operating temperature | -30 to 60° C (-22 to 104° F) |
| Ambient operating humidity | 5 to 90% noncondensing |
| Certifications | CE, FCC, IC |
