Ubiquiti Unifi Building Bridge XG (2-pack)
- SKU: UBB-XG-US
Product Information
Ubiquiti Networks UBB-XG

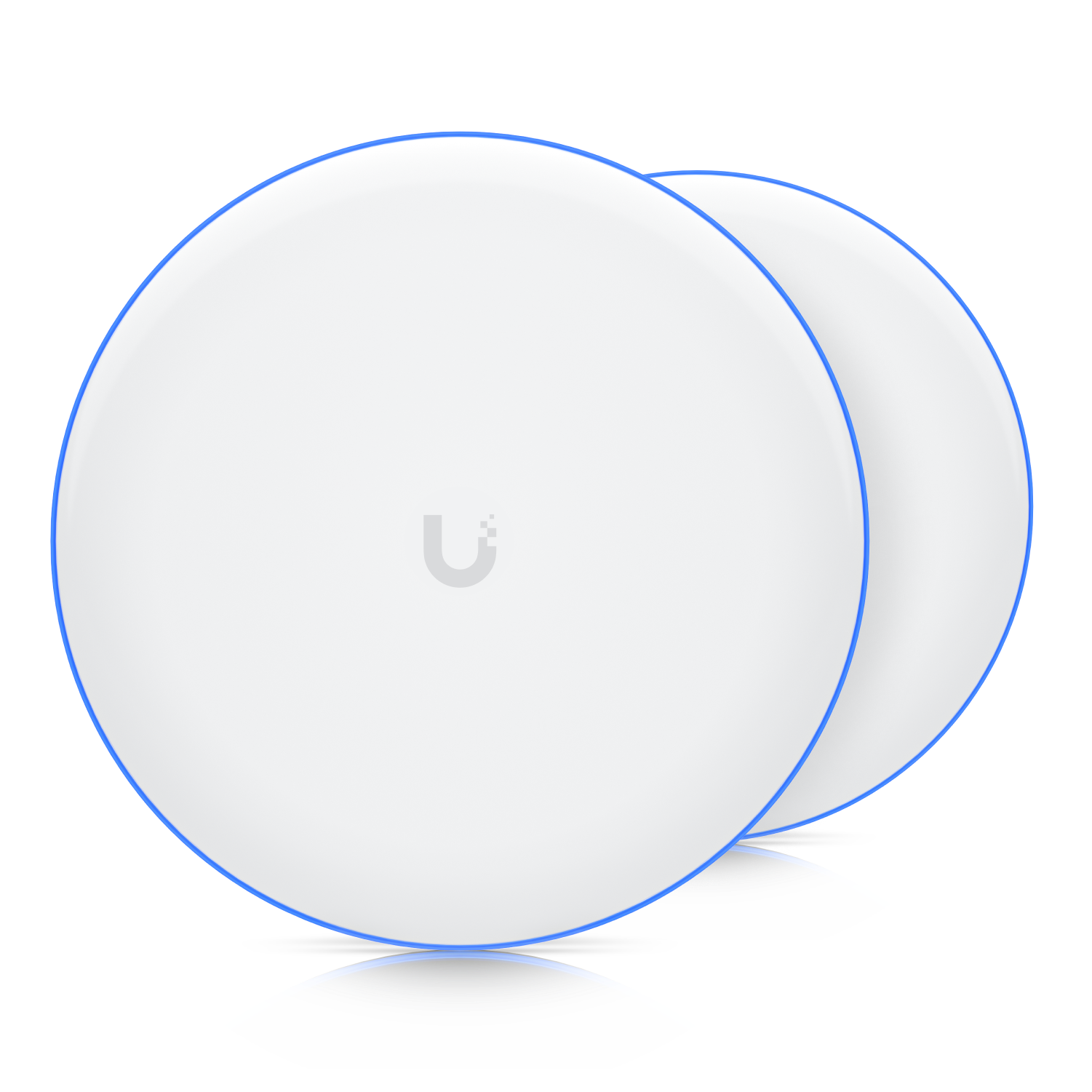

Unifi Building Bridge XG (2-pack)

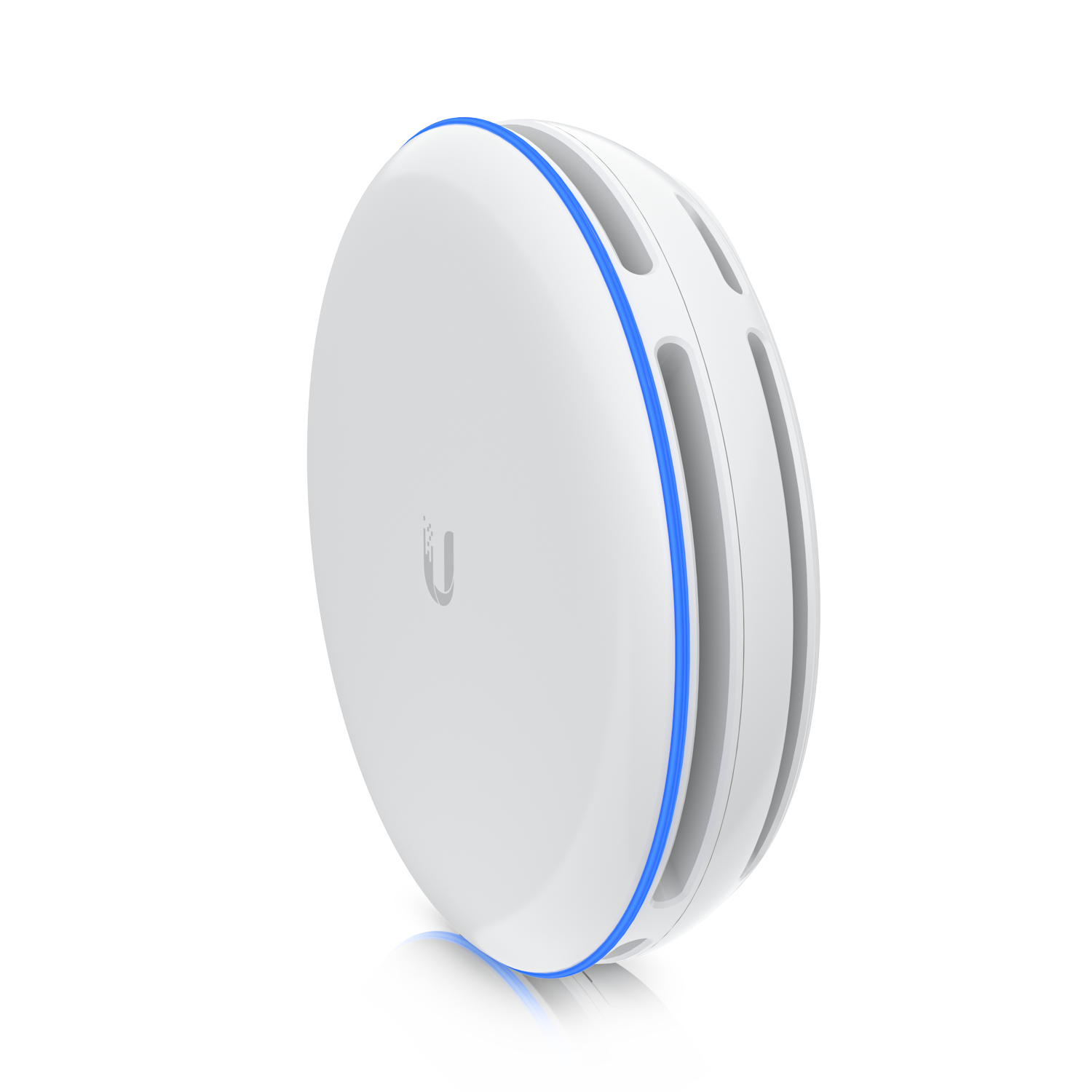

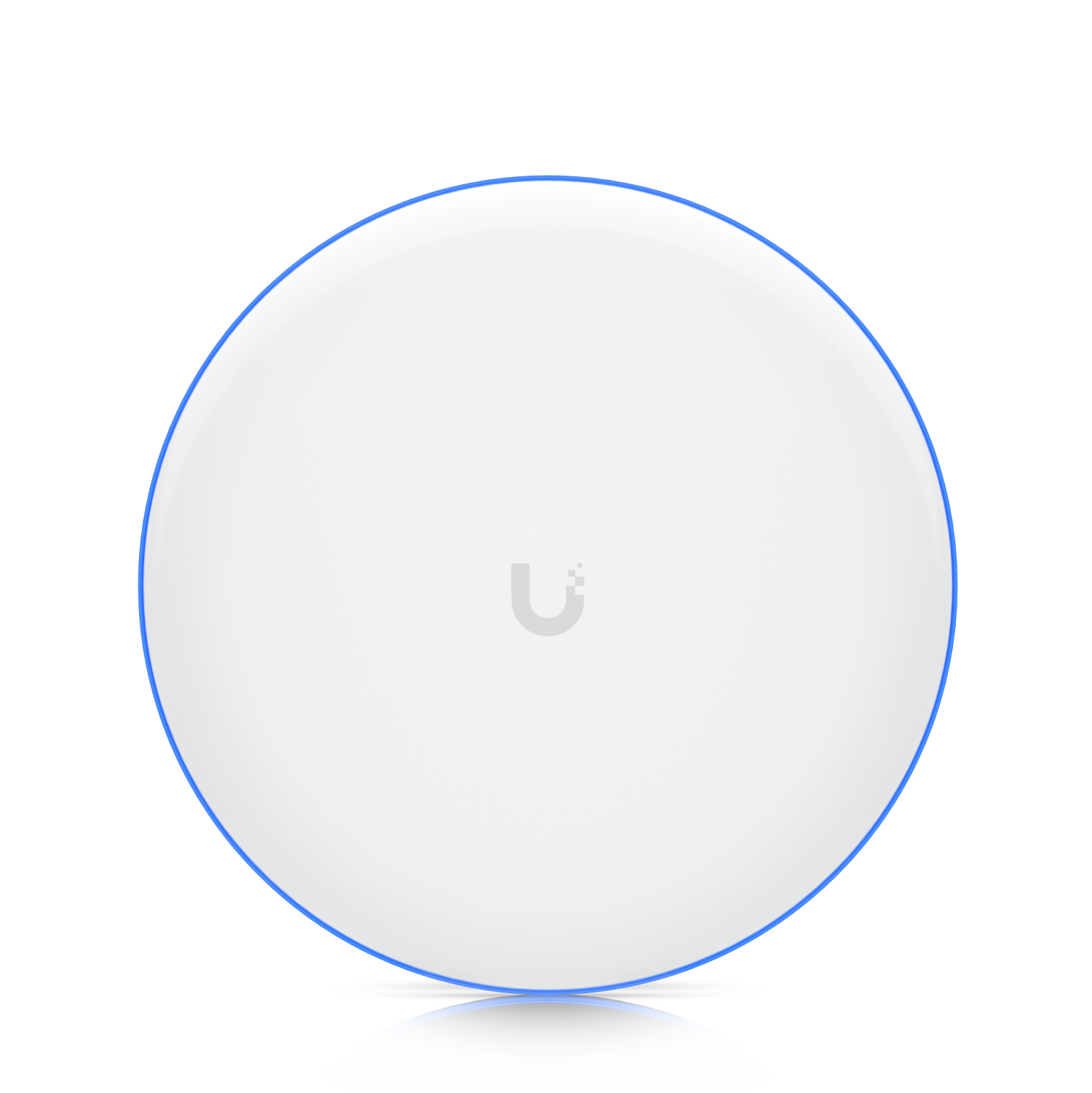

A 60 GHz wireless point-to-point bridge with 10G SFP+ uplink for maximum performance.

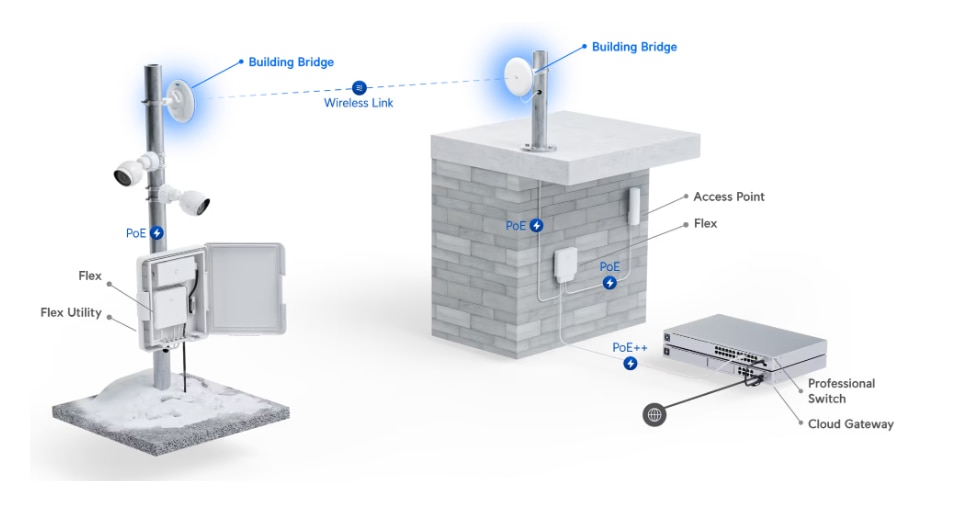

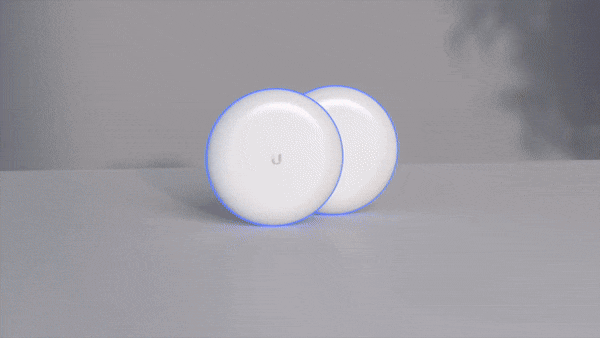

UniFi® 10Gbps Building-to-Building Bridge is the ideal solution for short-range, high-throughput connectivity. The UBB-XG is a 60Ghz PtP Bridge supporting blazing-fast speeds at ranges of up to 500m. Both units come prepaired for simple setup out of the box. Calibration LEDs on every unit allows operators to easily adust angling and postioning in the eld to get the best signal, and integration with the UniFi Controller makes bridging two networks seamless. As a pack of two radios, UniFi Building-to-Building Bridge contains everything you need to get up and running within minutes. Enjoy simple, easy-to-use, 10Gbps connectivity anywhere.
Note. Cannot be set up standalone and must be managed by a UniFi Console, Official UniFi Hosting, or a Self-Hosted UniFi Network Server.
Features:
- 500 m (1,640 ft) maximum range
- 60 GHz & 5 GHz dual-radio redundancy
- (1) 10G SFP+ and (1) GbE PoE++ port
- Powered using PoE++*
- Built-in LED alignment indicators
Specifications
Specifications UBB-XG
| Mechanical | |

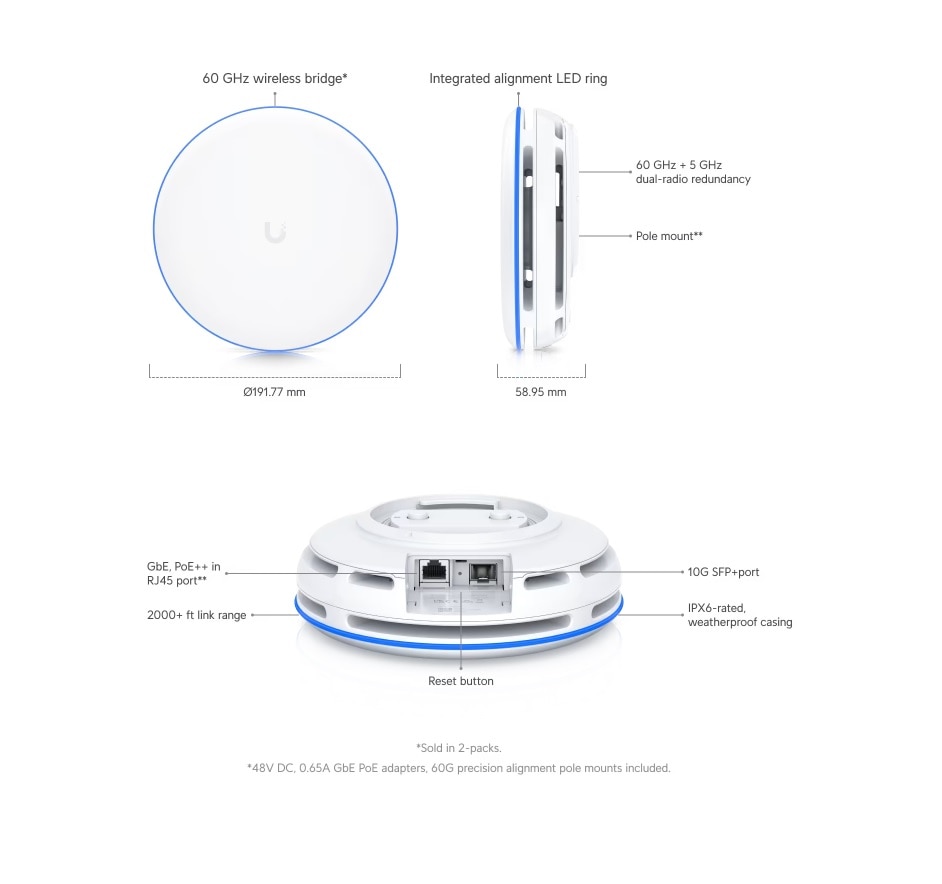

| Dimensions | Ø191.8 x 59 mm (Ø7.6 x 2.3") |
| Weight | Without mount: 1.7 kg (3.8 lb) With mount: 2.9 kg (6.3 lb) |
| Enclosure material | Aluminum alloy, UV-resistant polycarbonate |
| Mount material | Stainless steel |
| Pole mount diameter | 1-2.5" on pipe outer diameter |
| Weatherproofing | IPX6 |
| Hardware | |

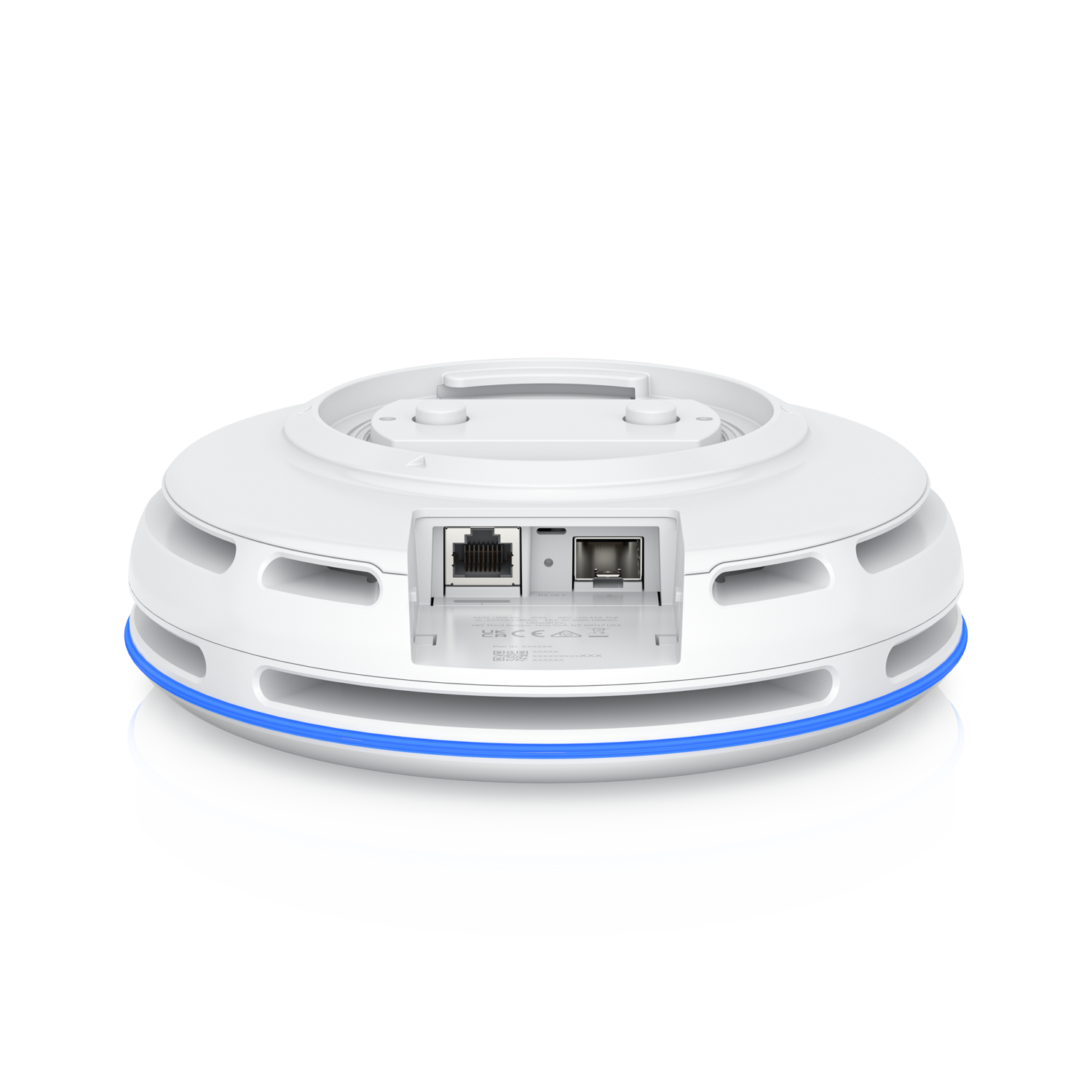

| Networking interface | (1) GbE RJ45 port (1) 1/10G SFP+ port |
| Management interface | Ethernet Bluetooth |
| Power method | PoE++ Passive PoE: 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) 2-pairs (4, 5+; 7, 8-) |
| Power supply | UniFi PoE switch 48V, 0.65A Gigabit PoE adapter (included) |
| Supported voltage range | 48V DC ± 10% |
| Max. power consumption | 31.2W |
| Max. TX power 2.4 GHz 5 GHz 6 GHz) | – 23 dBm – 16 dBm (60 GHz) |
| MIMO 2.4 GHz 5 GHz 6 GHz | – 2 x 2 – |
| Max. data rate 2.4 GHz 5 GHz 6 GHz | – 866.6 Mbps (BW80) – 6 Gbps (60 GHz) |
| Antenna gain 2.4 GHz 5 GHz 6 GHz | – 14 dBi – 21 dBi (60 GHz |
| Maximum range | 500 m (1,640 ft) |
| LEDs | R/G/B |
| Button | Factory-reset |

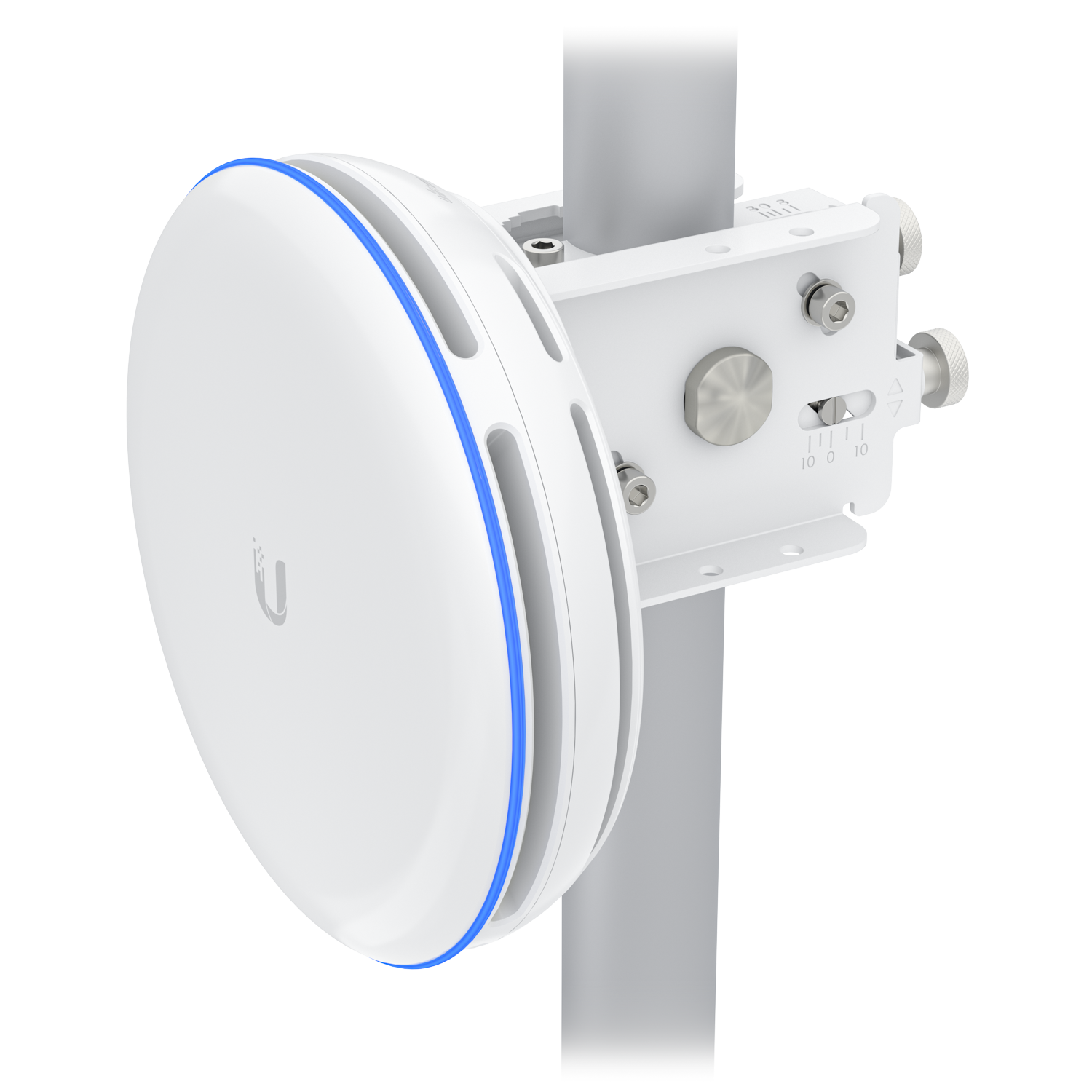

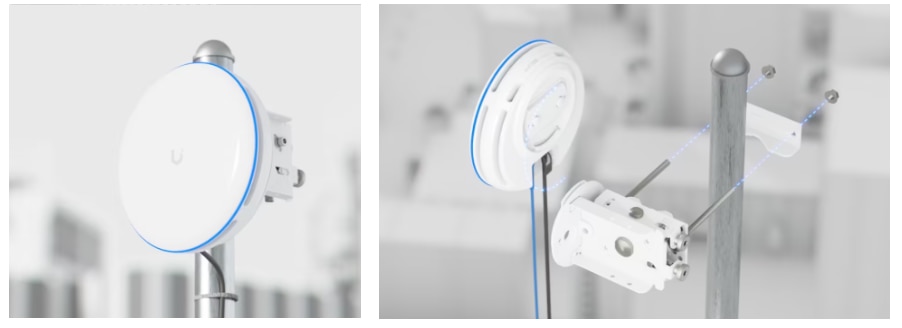

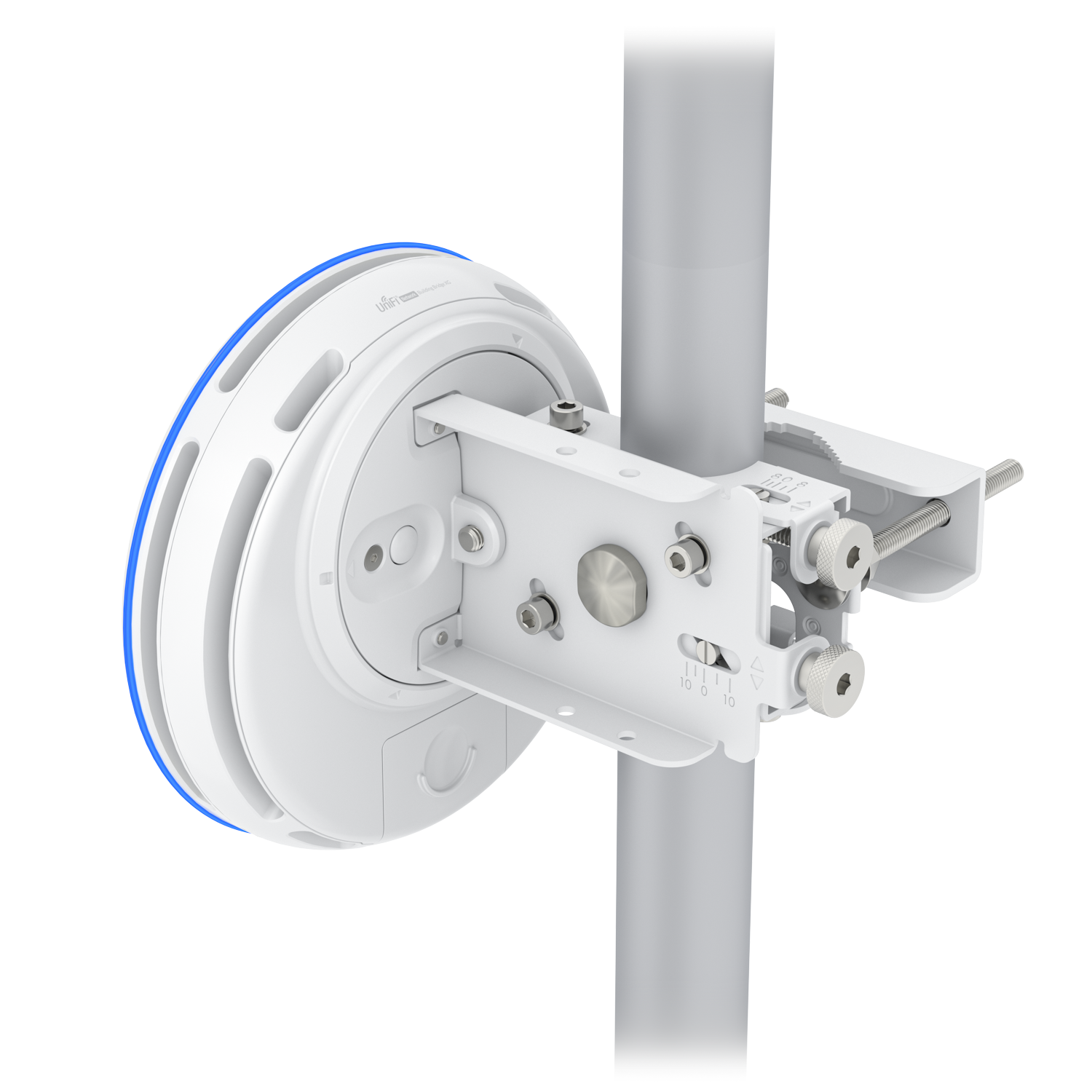

| Mounting | 60G precision alignment pole mount (Included) |
| Ambient operating temperature | -40 to 55° C (-40 to 131° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE, terragraph |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac |
| Wireless security | WPA2 AES (Always On) |
| Operating modes | PtP |
| VLAN | Management VLAN only |
| RF | |
| Operating frequency* | 57 to 66 GHz *Dependent on regional regulations. |
| Channel bandwidth | 2,160/4,320 MHz (Channel Bonding Enabled) |
| Operating channels* | 58,320/59,400/60,480/61,560/62,640/63,720/64,800 MHz *Dependent on regional regulations. |
| Backup RF | |
| Operating frequency* US/CA | U-NII-1: 5,150 - 5,250 MHz U-NII-2A: 5,250 - 5,350 MHz U-NII-2C: 5,470 - 5,725 MHz U-NII-3: 5,725 - 5,850 MHz |
| Worldwide | 5,150 - 5,725 MHz *Dependent on regional regulations. |
| Channel bandwidth | 20/40/80 MHz |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)) |
| 802.11ac | 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
