Ubiquiti UniFi Connect Display Cast Pro
- SKU: UC-Cast-Pro
$279.00
- Manufacturer: Ubiquiti Networks
- Installation Guide: Download
Product Information

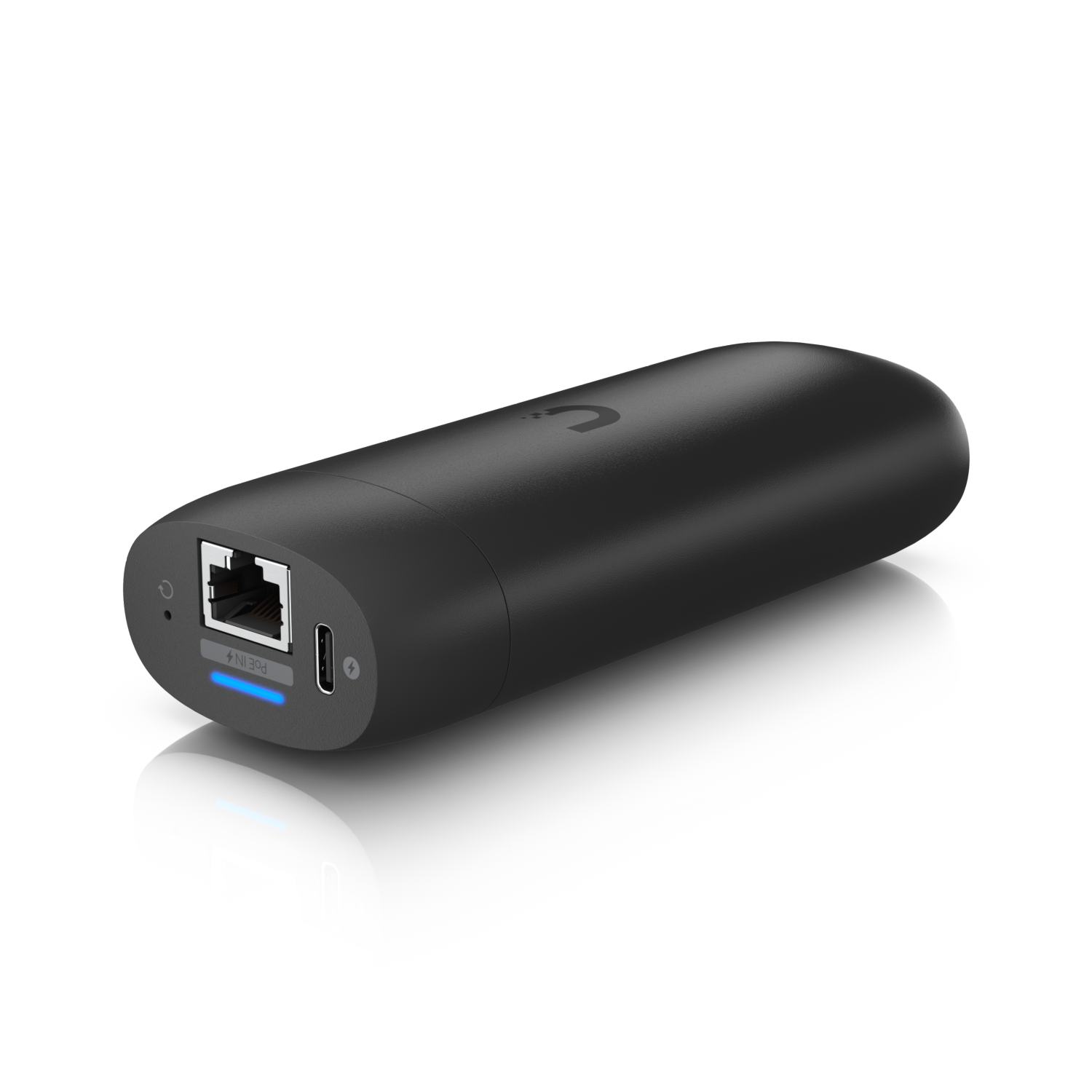

Ubiquiti Networks UC-Cast-Pro
UniFi Connect Display Cast Pro
Managed digital signage player for HDMI displays with media content playback, web mode, and USB-C peripheral support.
Features:
- Presents media content up to 4K resolution, websites, and YouTube videos to any HDMI-compatible display
- Create multimedia playlists and dynamic digital signage layouts with UniFi Connect
- Automatically power on/off display with HDMI CEC
- Keyboard and mouse control via USB-C
- PoE in or USB-C adapter power
- Connected with UniFi WiFi Auto-Link or Ethernet
Specifications
Specifications UC-Cast-Pro
| Mechanical | |

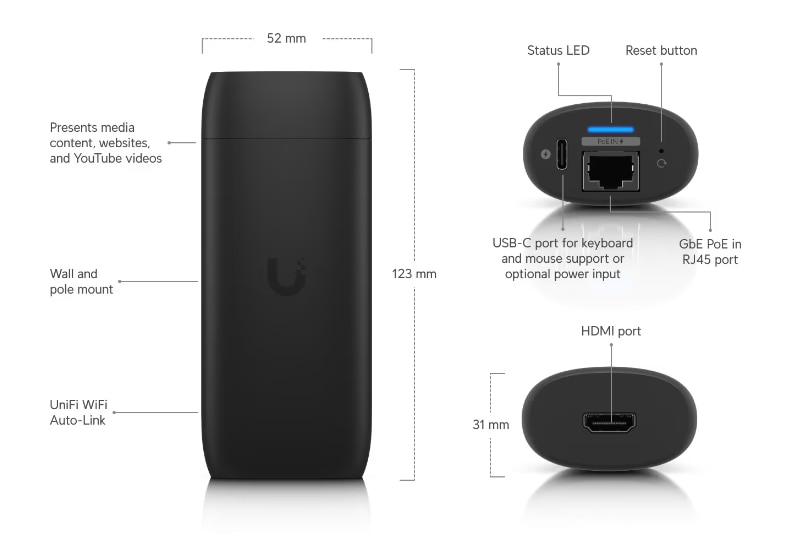

| Dimensions | Without mount: 123 x 52 x 31 mm (3.5 x 2.1 x 1.2") With mount: 125.1 x 56.3 x 40.8 mm (3.6 x 2.1 x 1.4") |
| Weight | Without mount: 240 g (5.8 oz) With mount: 260 g (9.2 oz) |
| Hardware | |
| Processor | Octa-core CPU including (2) ARM® Cortex®-A78 and (6) ARM® Cortex®-A55 Integrated Mali-G57 GPU |
| Memory | Storage: 32 GB RAM: 8 GB |
| Power method | USBC 5V DC, 3A PoE 48V DC, 0.35A |

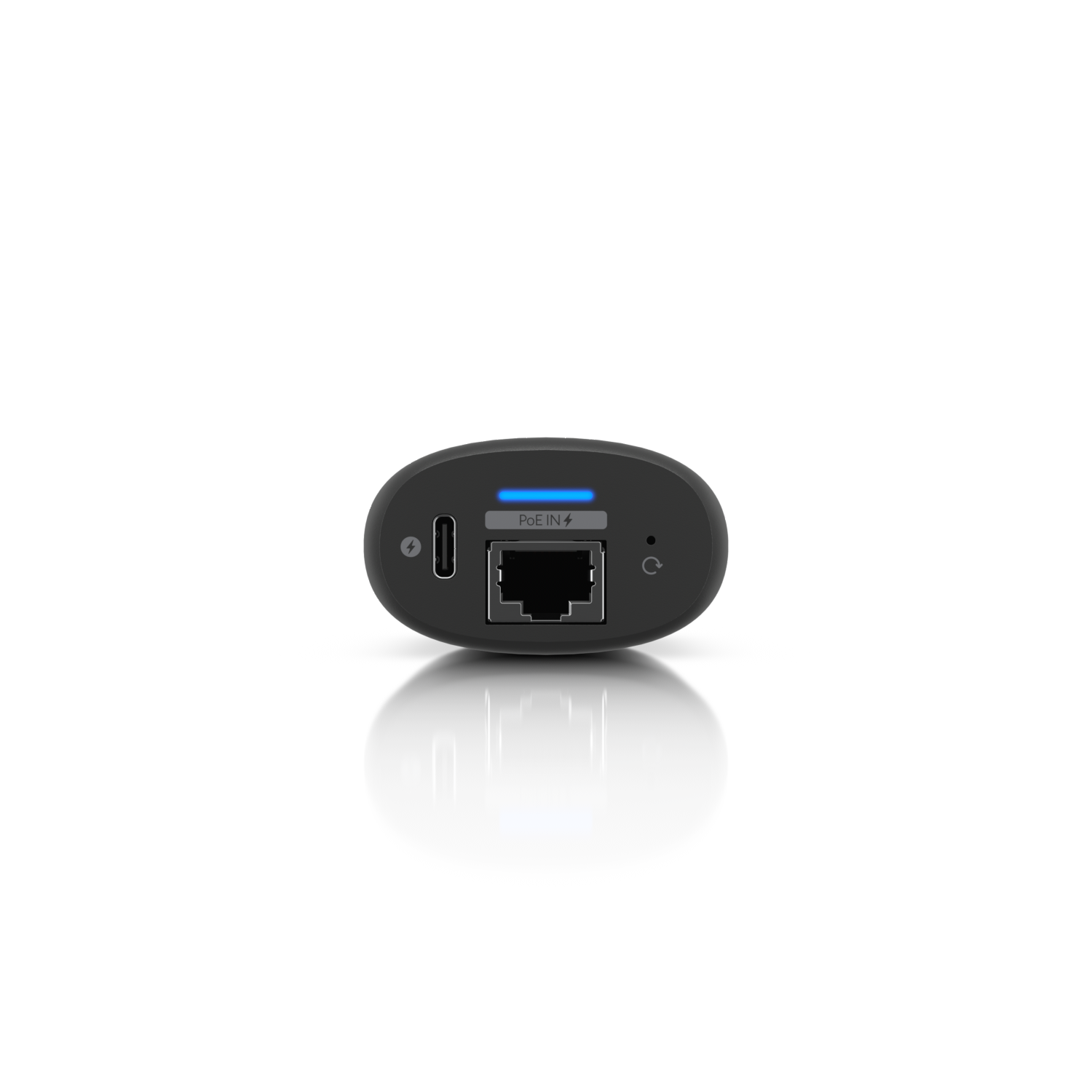

| Input/output | (1) GbE RJ45 port (Power input) (2) USB Type-C port (Power input) |
| WiFi standards | 802.11 a/b/g/n/ac/ax |
| Connectivity | WiFi 2.4G, BW 20/40 MHz WiFi 5G, BW 20/40/80 MHz |
| LEDs | White/blue (Learn more) |
| Button | (1) Factory reset |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Ambient operating humidity | 20 to 90% noncondensing |
| Certifications | CE, FCC, IC, Wi-Fi CERTIFIED |
| Software | |
| Management application | UniFi Connect: Version 3.14.6 and later UniFi Connect iOS™ and Android™: Version 2.18.1 and later |
