Ubiquiti Networks UISP Router Professional
US$579.00
- SKU: UISP-R-Pro
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information
Ubiquiti Networks UISP-R-Pro
UISP Router Professional
Multi-WAN 10GbE router designed for ISP applications.
Features:
- (9) GbE RJ45 ports
- (4) 10G SFP+ ports
- Integrated Layer 2 switch*
- Up to 9,500 Mbps NAT throughput**
- Traffic shaping functionality and automated customer suspension
- Firewall and OSPF routing
- Additional Power TransPort input for DC redundancy
Specifications
Specifications UISP-R-Pro

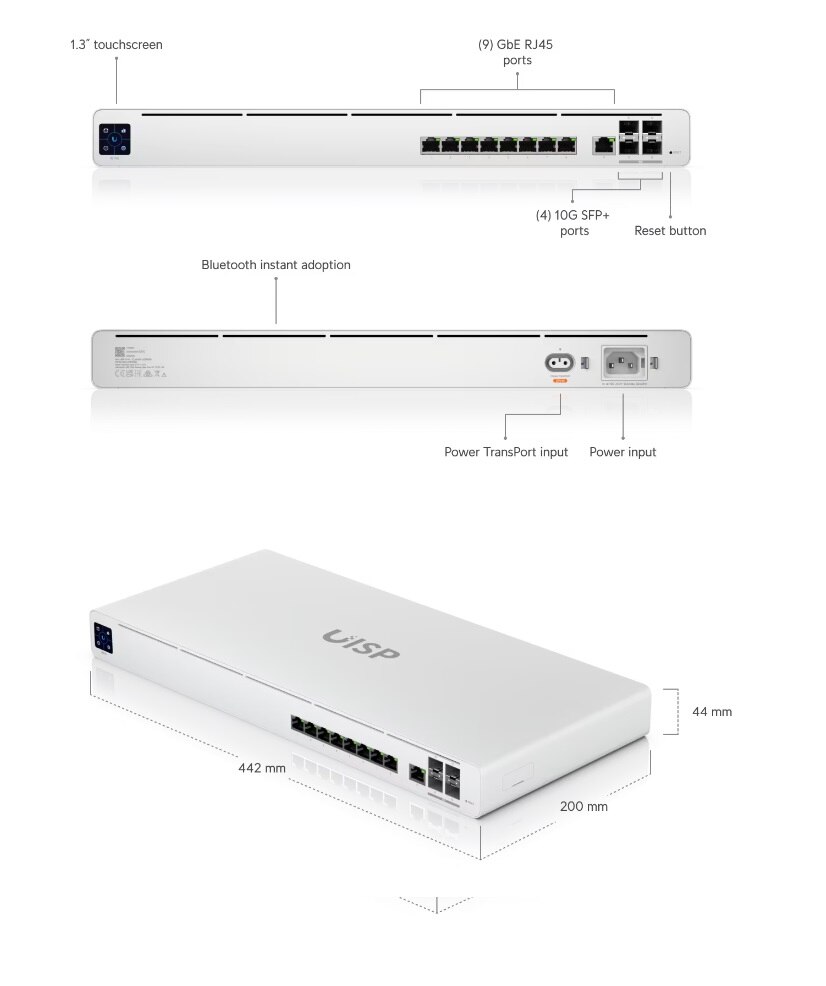

| Dimensions | 442.4 x 200 x 43.7 mm (17.4 x 7.9 x 1.7") |
| Weight | 3.3 kg (7.2 lb) |
| Enclosure materials | SGCC steel, polycarbonate/ABS |
| Hardware | |
| Processor | Quad-core ARM® Cortex®-A57 at 1.7 GHz |
| Memory | 4 GB DDR4 |
| Onboard | 16 GB eMMC |
| Networking interface | (8) GbE RJ45 LAN ports (1) GbE RJ45 WAN port (4) 1/10G SFP+ ports |
| Management interface | Ethernet |
| Bluetooth | |
| Power method | (1) Universal AC input, 100—240V AC, 1.5A Max, 50/60 Hz (1) Power TransPort DC input 27V DC, 2.2A |
| Power supply | AC/DC, Internal, 60W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 50W |
| ESD/EMP protection | Air: ± 15kV, contact: ± 8kV |
| LCM display | (1) 1.3" touchscreen |
| Operating temperature | -10 to 50° C (14 to 122° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| RJ45 data ports | Speed/link/activity |
| SFP+ data ports | Speed/link/activity |
| Software | |
| Management application | UISP: Version 1.4.5 and later |
