Ubiquiti Networks Switch Enterprise XG 24
US$1,299.00
- SKU: USW-EnterpriseXG-24
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information

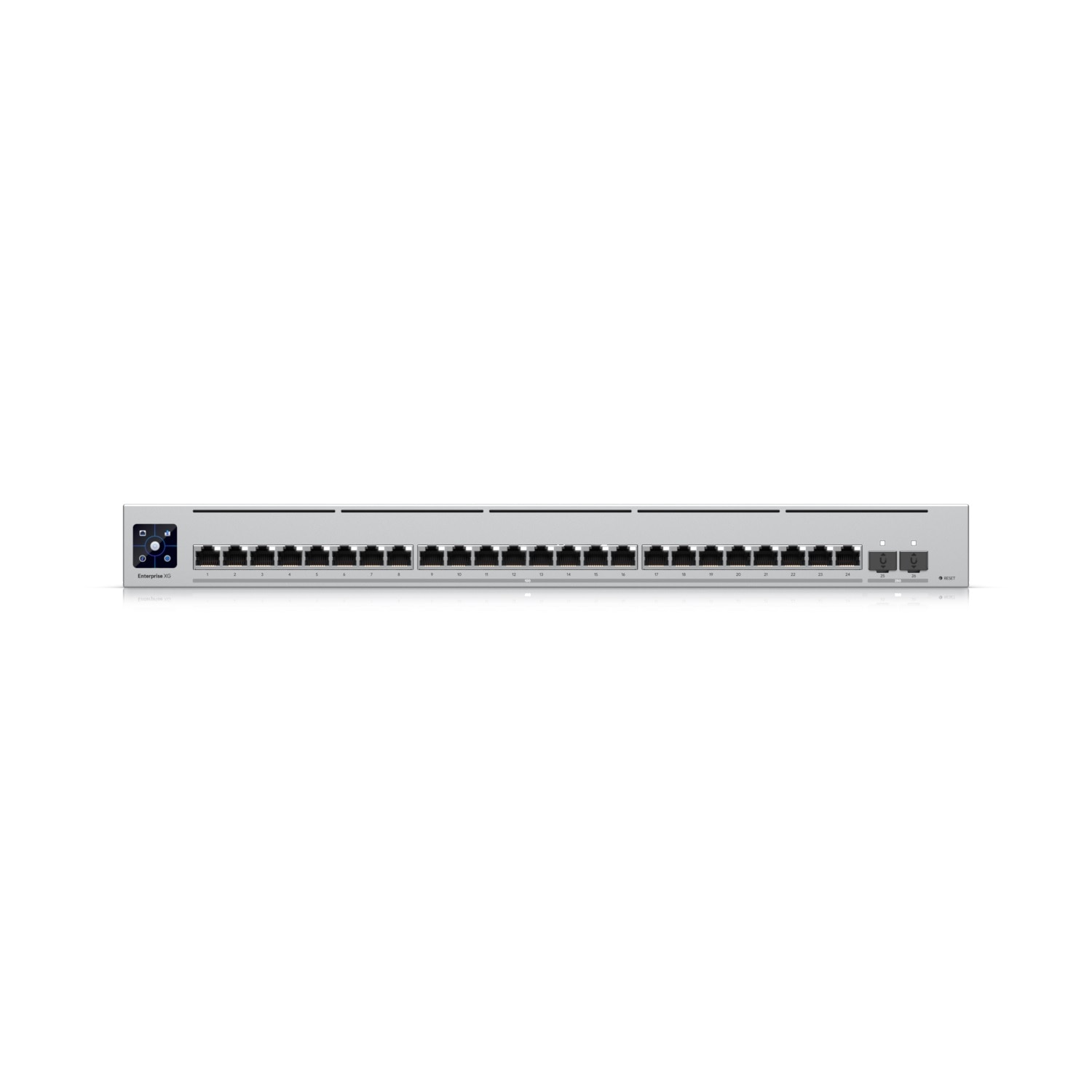

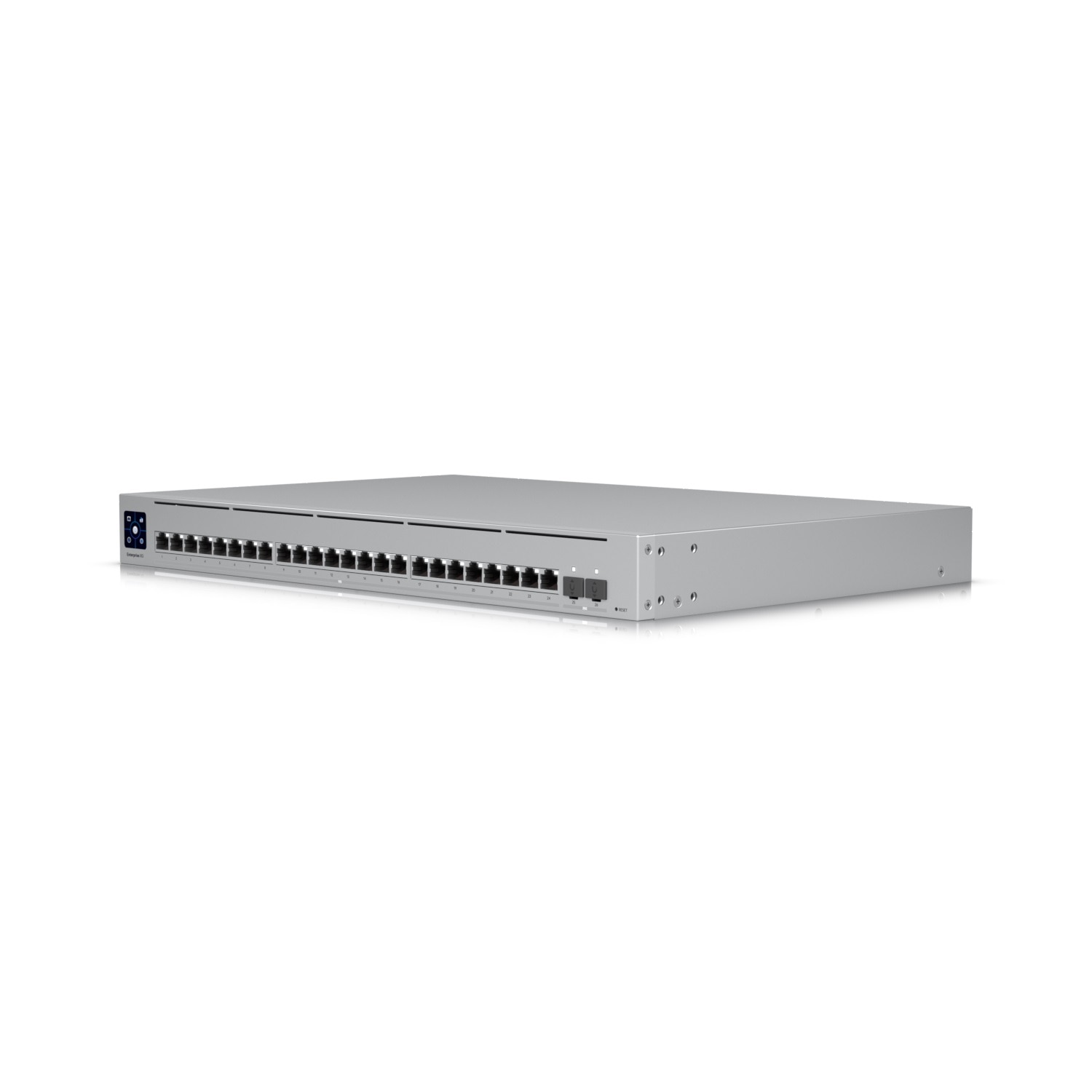

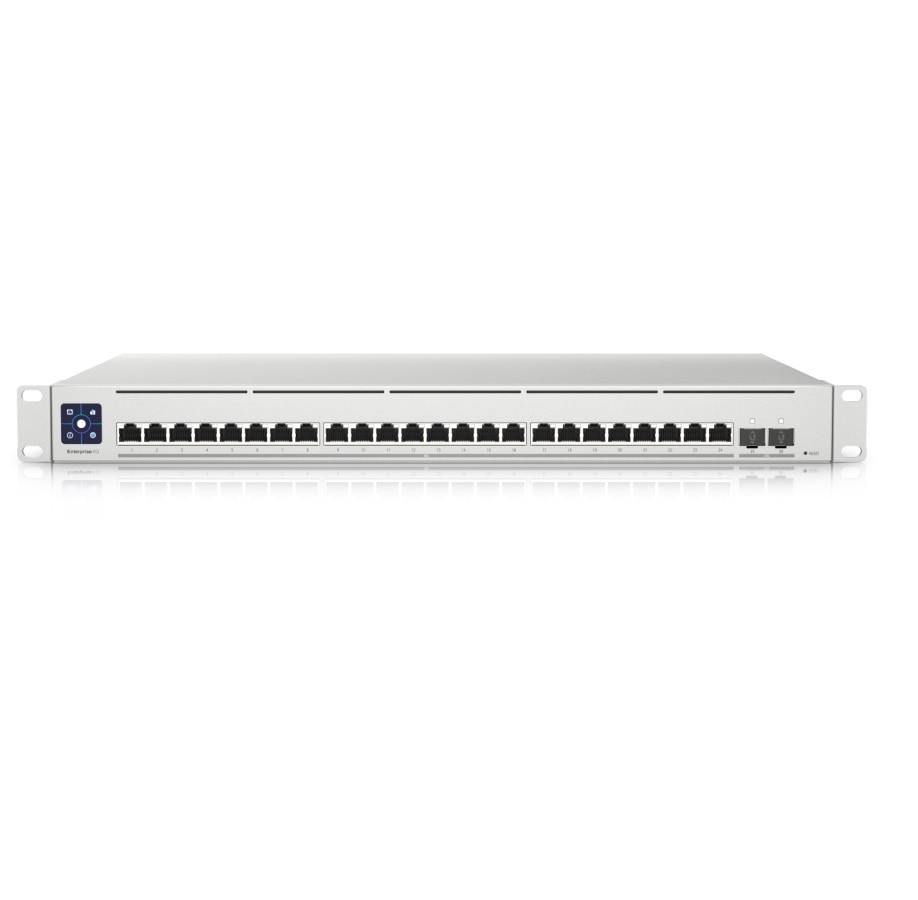

Ubiquiti Networks USW-EnterpriseXG-24
A 24-port, Layer 3 switch capable of supporting high-capacity 10 GbE RJ45 and 25G SFP28 connections.

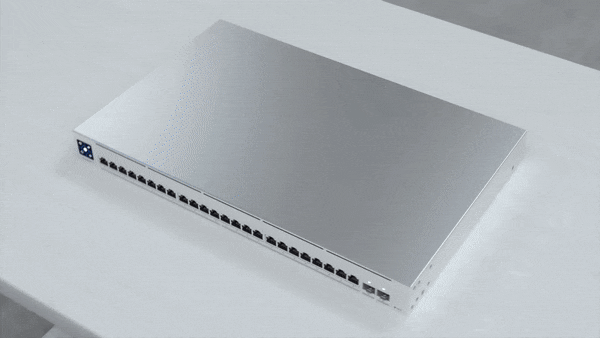

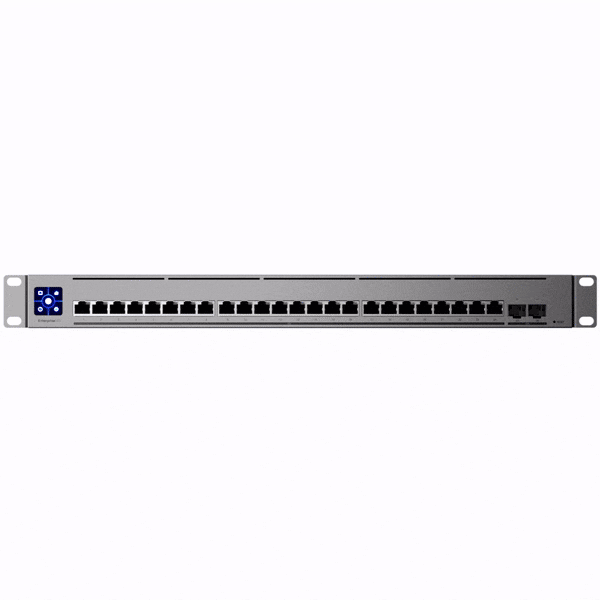

The Switch Enterprise XG 24 (USW Enterprise XG 24) is a fully managed, mult-gigabit, Layer 3 switch with (24) 10GbE RJ45 ports and (2) 25G SFP28 ports. The USW Enterprise XG 24 also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.
Additionally, the USW Enterprise XG 24 offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or congured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Features:
- (24) 10 GbE ports
- (2) 25G SFP28 ports
- DC power backup-ready
- Layer 3 switching
Specifications
SpecificationsUSW-EnterpriseXG-24

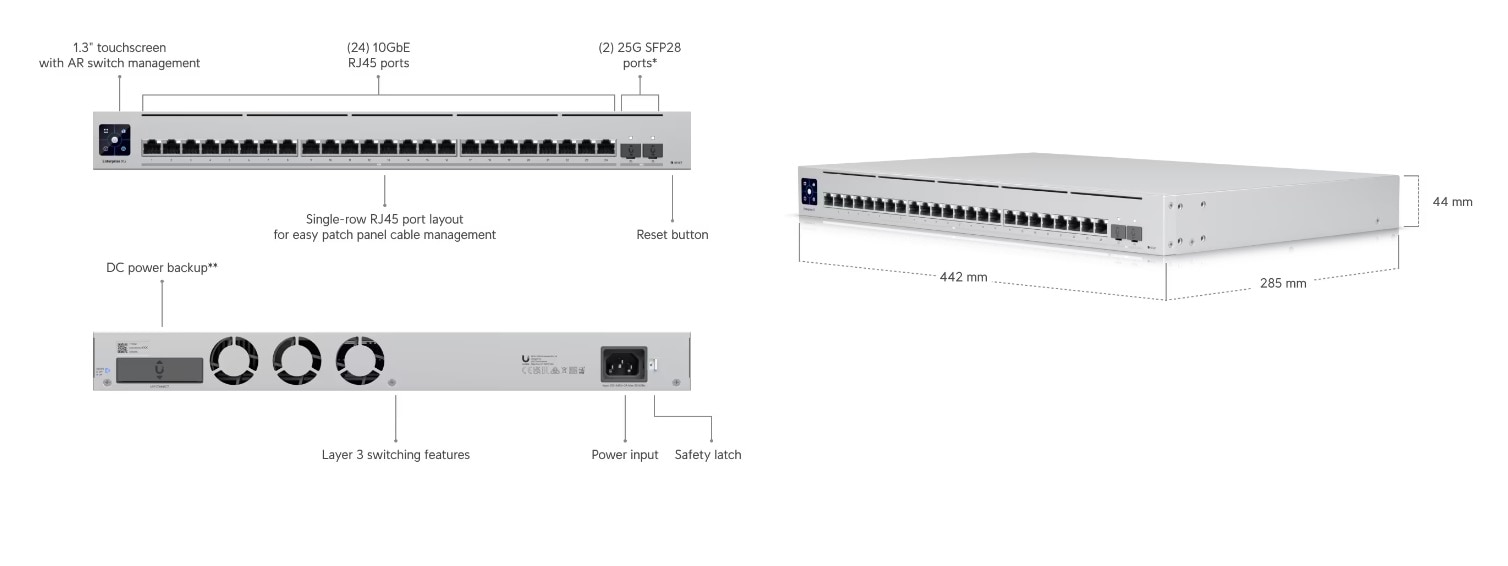

| Dimensions | 442 x 44 x 285 mm (17.4 x 1.7 x 11.2") |
| Weight | Without mounting brackets: 4.5 kg (9.9 lb) With mounting brackets: 4.6 kg (11 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (24) 1/2.5/5/10 GbE ports |
| SFP28 interface | (2) 25G SFP28 ports* |
| Total non-blocking throughput | 290 Gbps |
| Switching capacity | 580 Gbps |
| Forwarding rate | 431.52 Mpps |

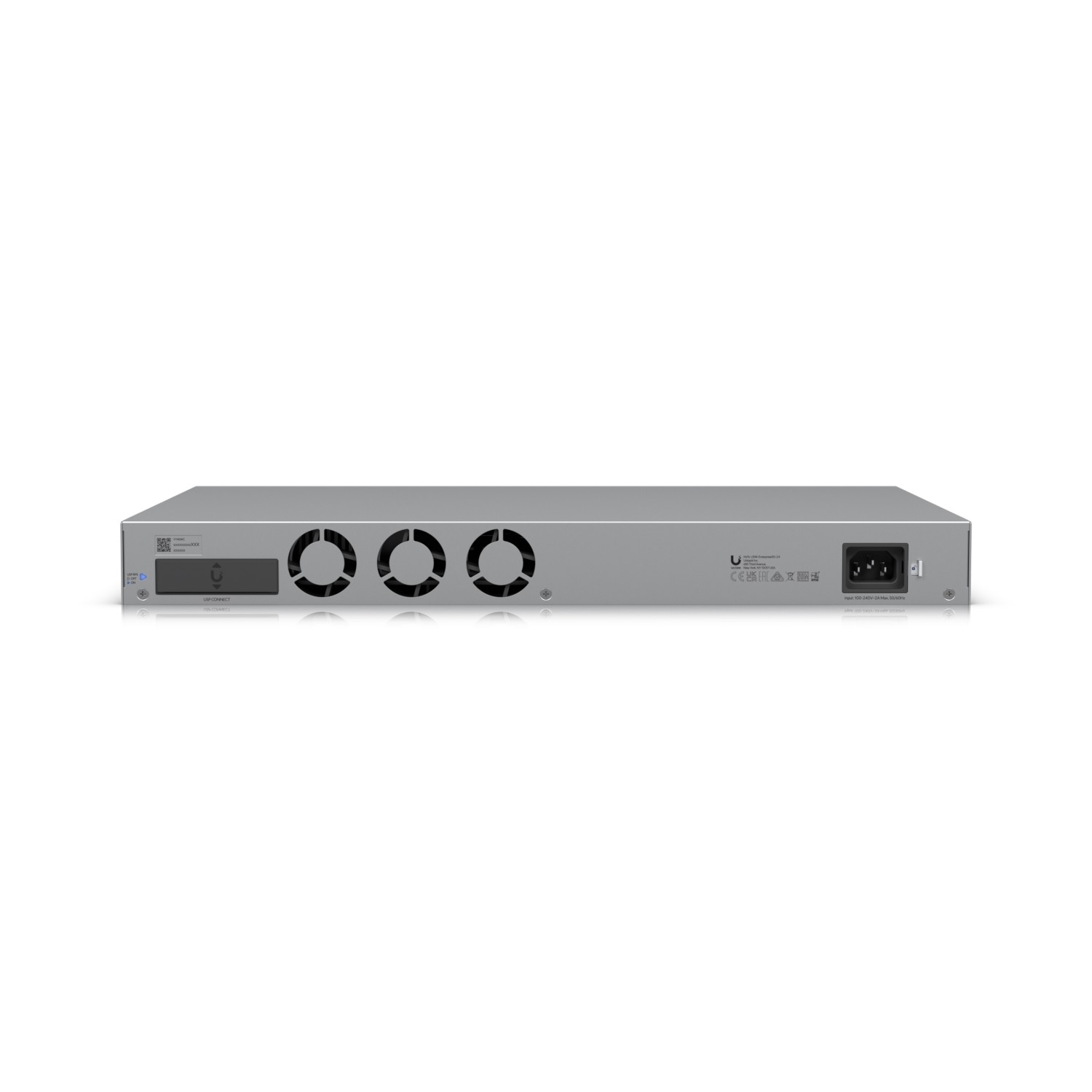

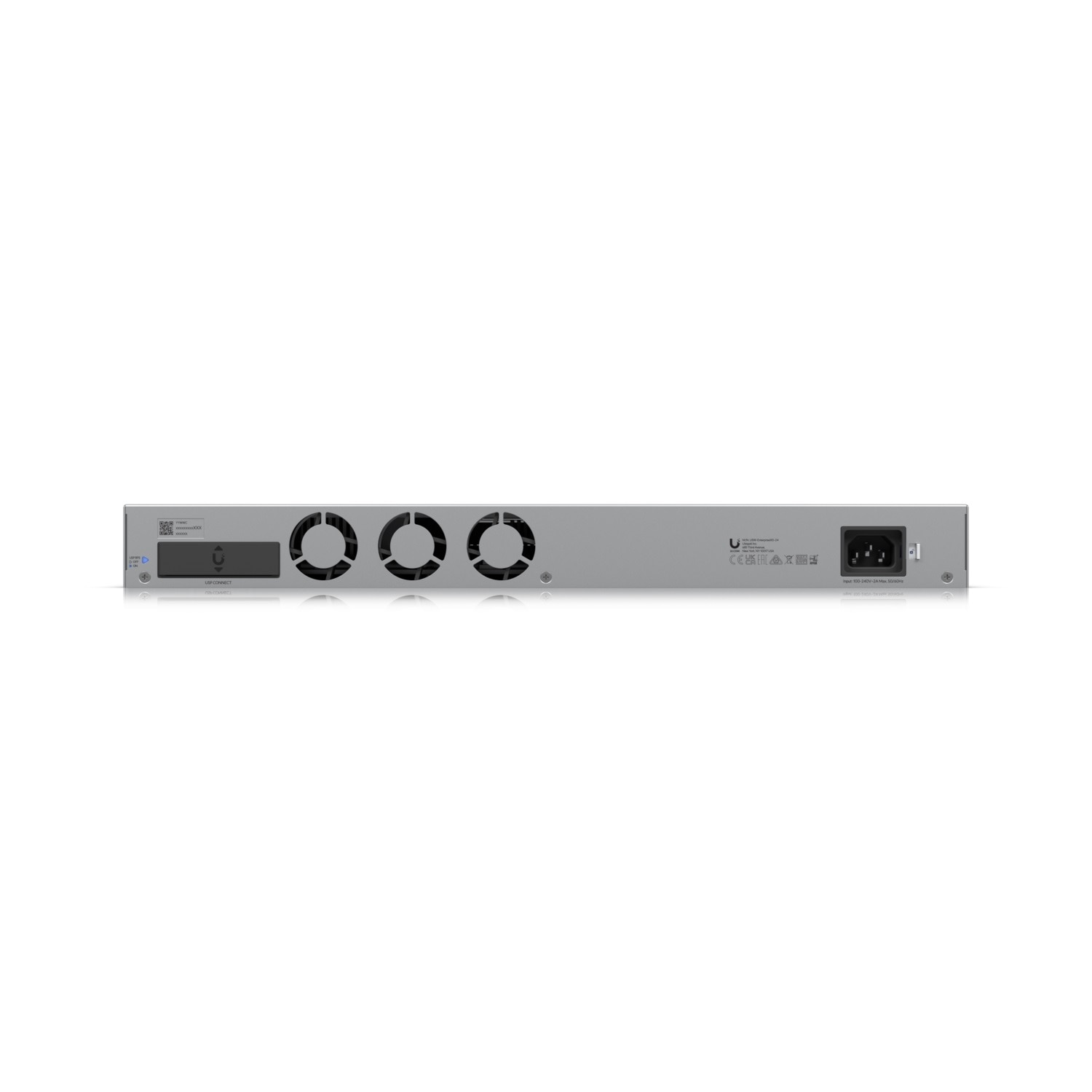

| Power method | (1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 8.7A |
| Power supply | AC/DC, internal, 100W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 100W |
| Services | SMB Layer 3 GbE switch |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| LCM display | (1) 1.3" color touchscreen |
| Button | Factory reset |
| Operating temperature | -5 to 40° C (23 to 104° F) |
| Operating humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | Status |
| Ethernet | Link/activity |
| Application Requirements | |
| UniFi Network | Version 6.1.67 and later |
