Ubiquiti UniFi Switch Mission Critical
- SKU: USW-Mission-Critical-US
Product Information
Ubiquiti Networks USW-MISSION-CRITICAL
UniFi Switch Mission Critical, Infrastructure PoE Switch with Uninterruptible Power Supply
A switch with integrated 368Wh Lithium-ion battery, capable of providing uninterruptible power for 8 devices.

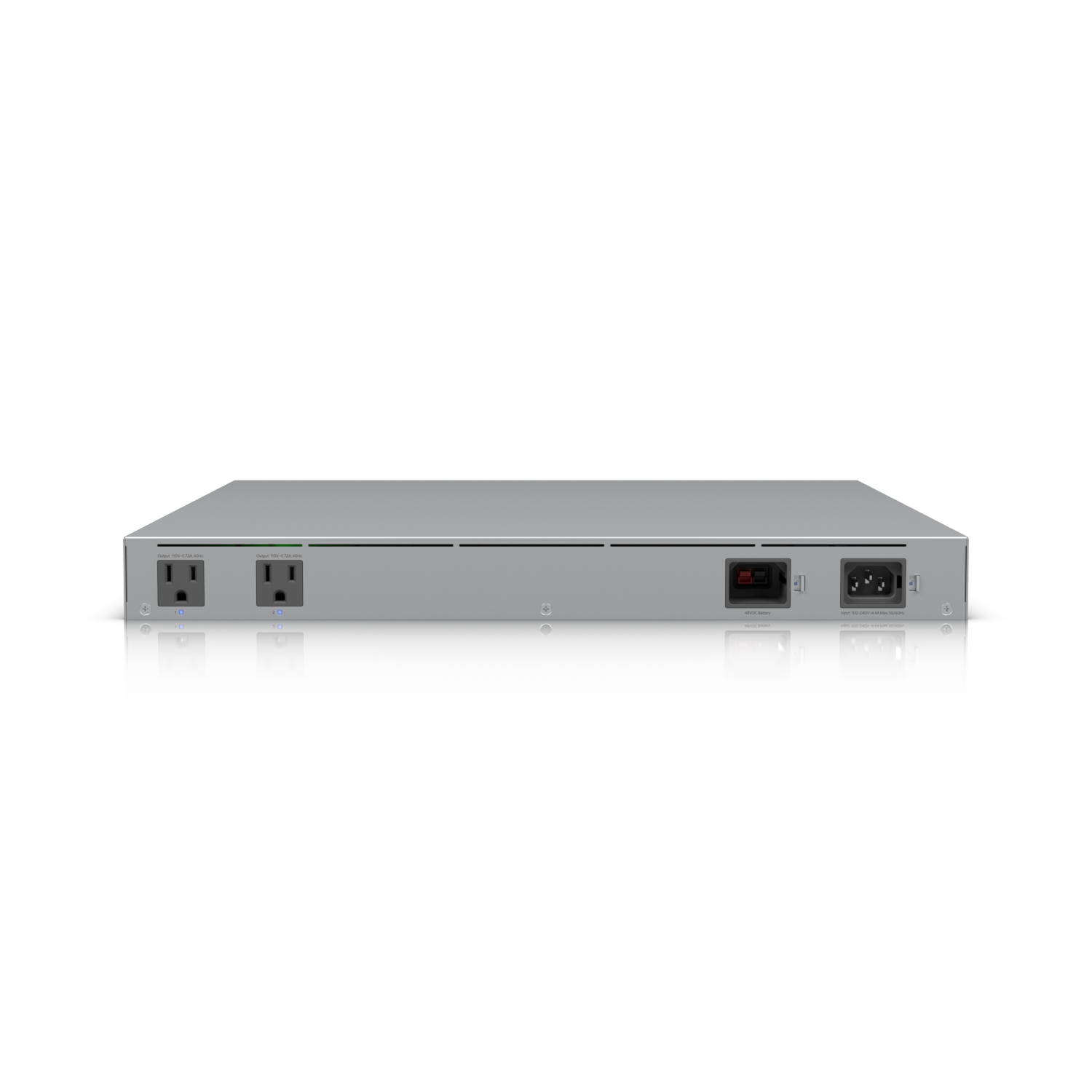

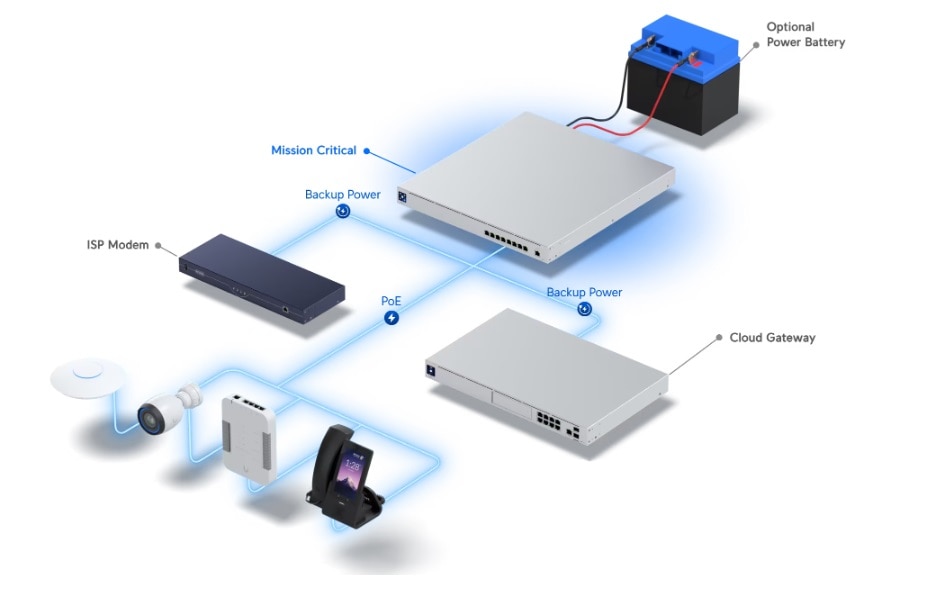

UniFi Mission-Critical Switch delivers power to vital network devices while maintaining high reliability via multiple powering options: internal battery backup, AC power, and external 48VDC battery (notincluded). The managed Layer 2 switch offers nine Gigabit RJ45 ports: four with 802.3bt PoE++ to power UniFi Access devices, four with 802.3af/at PoE to power UniFi APs, switches, or cameras, and one for uplink to the gateway. Two AC outputs power 100-120V devices, including the modem and gateway.

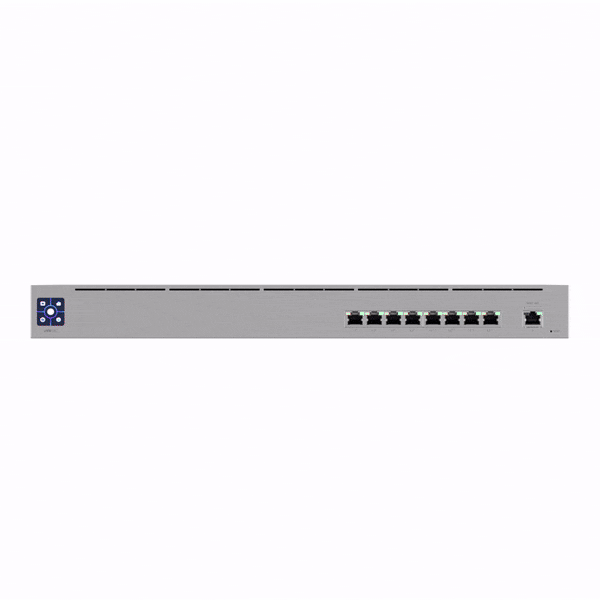

The 1.3" touchscreen provides current switch states and the necessary information you need for quick diagnosis. AR (Augmented Reality) switch management simplies network changes.
The UniFi Network Controller and UniFi Network mobile app allows admins to congure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.
Features:
- (4) GbE PoE+, (4) GbE PoE++ ports
- (1) GbE port
- (2) 110V AC outputs; 120W total PoE available
- Battery backup power system
- Internal battery 368Wh
Specifications

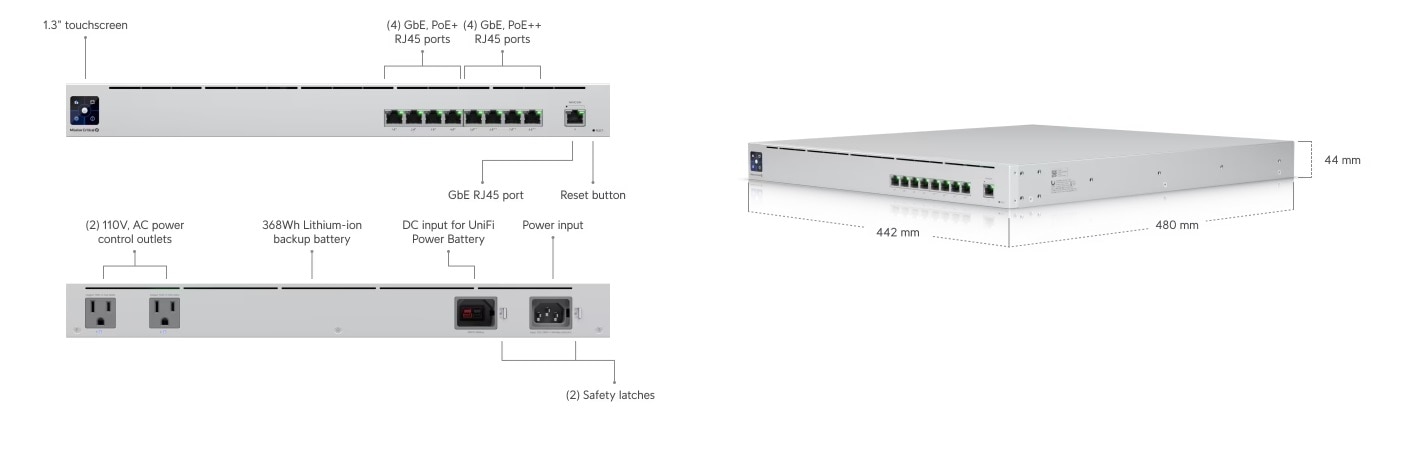

Specifications USW-MISSION-CRITICAL
| Mechanical | |
| Dimensions | 442 x 480 x 44 mm (17.4 x 18.9 x 1.7") |
| Weight | Without mount: 9 kg (19.9 lb) With mount: 9.2 kg (20.3 lb) |
| Enclosure material | SGCC steel |
| Mount material | SGCC steel |

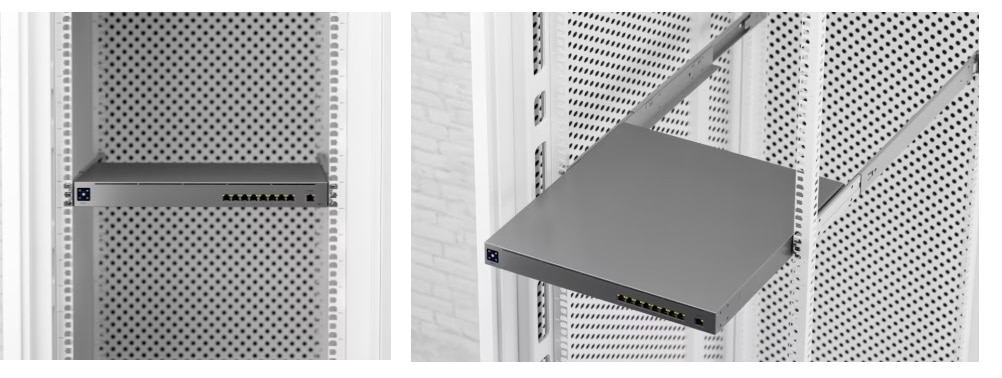

| Supported rack depth | 700 to 1000 mm (27.6 to 39.4") |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (9) GbE RJ45 ports |
| PoE interface | (4) PoE/PoE+ (Pins 1, 2+; 3, 6-) (4) 60W PoE++ (Pair A 1, 2+; 3, 6-)(Pair B 4, 5+; 7, 8-) |
| Total non-blocking throughput | 9 Gbps |
| Switching capacity | 18 Gbps |
| Forwarding rate | 26.78 Mpps |
| Power method | (1) Universal input, 100—240V AC, 4.4A Max., 50/60 Hz (1) External battery DC input 48V DC, 6A (1) Internal Lithium-Ion battery, 368Wh |
| Power supply | Universal AC input: AC/DC, internal, 240W External battery port: DC, external, 240W |
| Max. power consumption | 240W (Including PoE output) 50W (Excluding PoE output) |
| Total available PoE | 120W |
| Power output | US: (2) Power control outlets, 110V AC, 0.72A Max., 60 Hz EU: (2) Power control outlets, 230V AC, 0.35A Max., 50 Hz |
| Power output budget | 80W |
| Max. PoE wattage per port by PSE | PoE+: 30W PoE++: 60W |
| Voltage range PoE mode | PoE: 44—57V PoE+/PoE++: 50—57V |
| ESD/EMP protection | Air/contact: ± 24kV |
| LCM display | (1) 1.3" touchscreen |
| Ambient operating temperature | -5 to 40° C (23 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features | IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs |
| Layer 3 features | – |
| LEDs | |
| Ethernet | Green: 1 Gbps Amber: 10/100 Mbps |
| PoE | Amber: PoE/PoE+/PoE++ |
| Power output | Blue: active |
| Application Requirements | |
| UniFi Network | Version 6.2.26 and later |
