Ubiquiti UniFi Protect G4 Doorbell Power Supply

  • SKU: UVC-G4-Doorbell-PS-US
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
  • Availability: 11 In Stock    (updated live)
US$‎29.00

Specifications UVC-G4-Doorbell-PS-US

Mechanical
Lenght 6 m (19' 8")
Weight 496 g (1.09 lb)
Jacket Dimensions Ø64.8 x 63.4 mm (Ø2.6 x 2.5")
Jacket Enclosure Material Polycarbonate
Connector Type Spade Terminal
Hardware
InputRating 110VAC, 1AMax., 60 Hz
OutputRating 20VAC, 0.7A
Operating Temperature -10 to 40° C(14 to 104° F)
Operating Humidity 0 - 95%Noncondensing
Certications CE, FCC, IC

Ubiquiti Networks UVC-G4-Doorbell-PS-US

UniFi Protect G4 Doorbell Power Supply

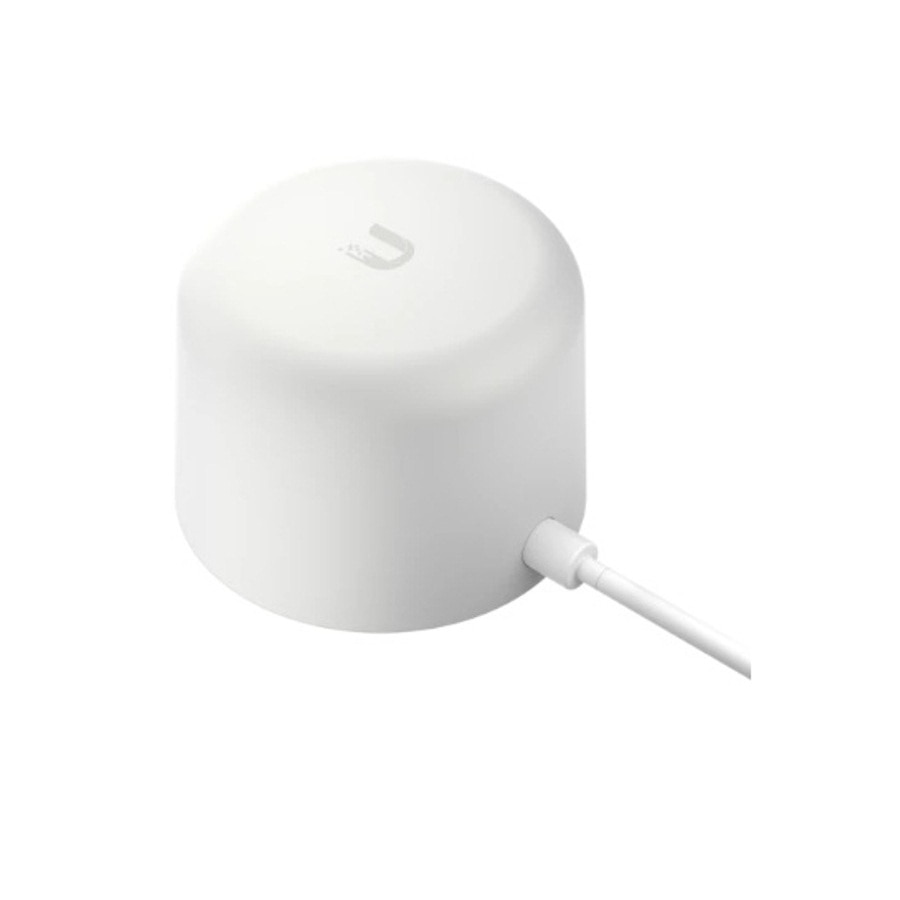

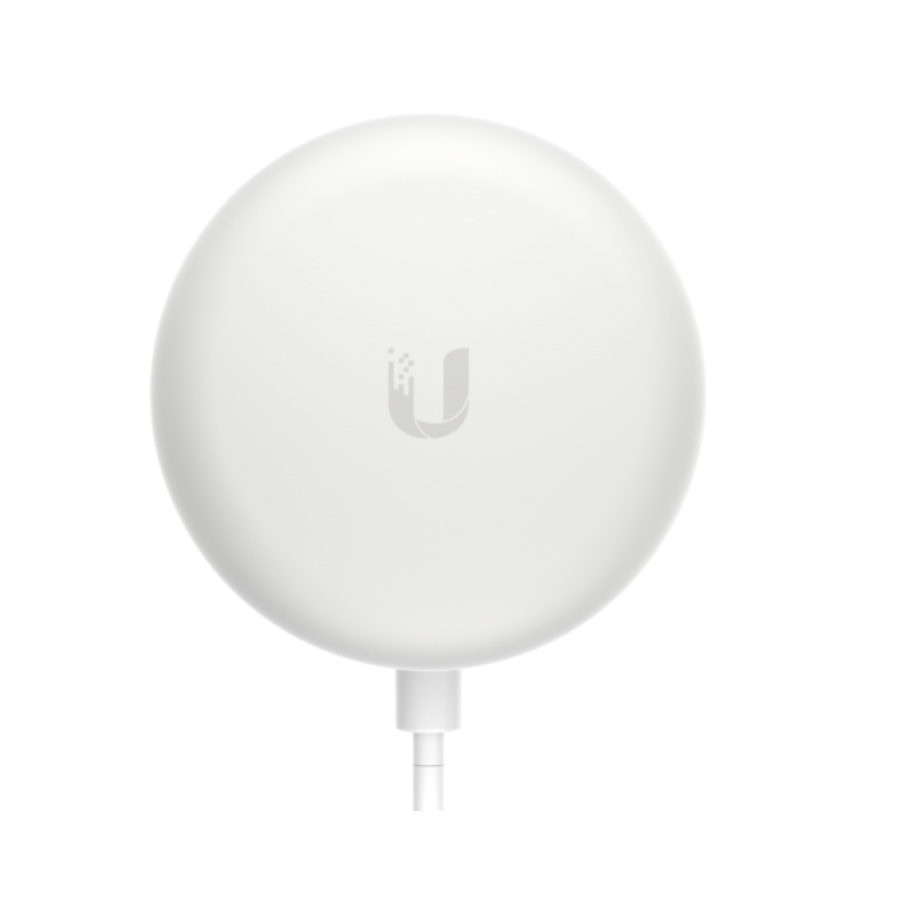

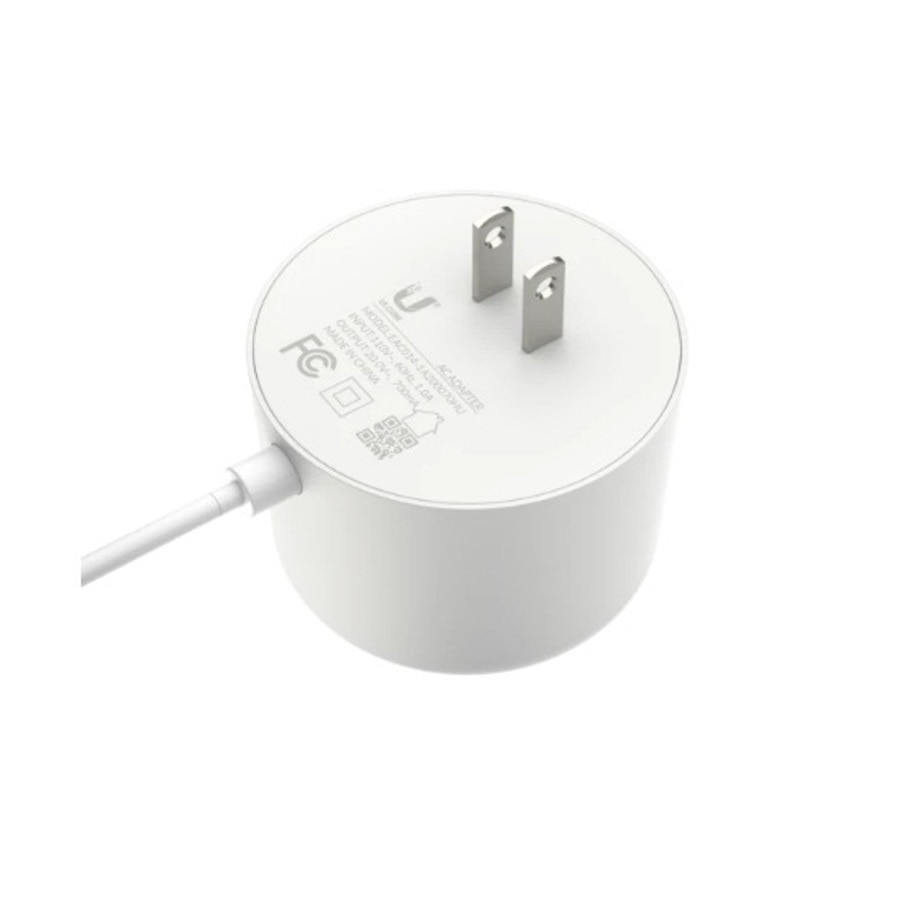

The UVC-G4-Doorbell-PS is an optional power adapter for the UVC-G4-Doorbell. Instead of using existing electrical wiring, one end connects to the doorbell and the other end plugs into a standard US electrical outlet. Maximum distance: 6 m (19' 8")


Features:

  • Plugs into standard US electrical outlet
  • Input: 110VAC, 60 Hz, 1A
  • Output: 20VAC, 0.7A
  • Cable length: 6 m (19' 8")
  • (2) Spade wire connectors
