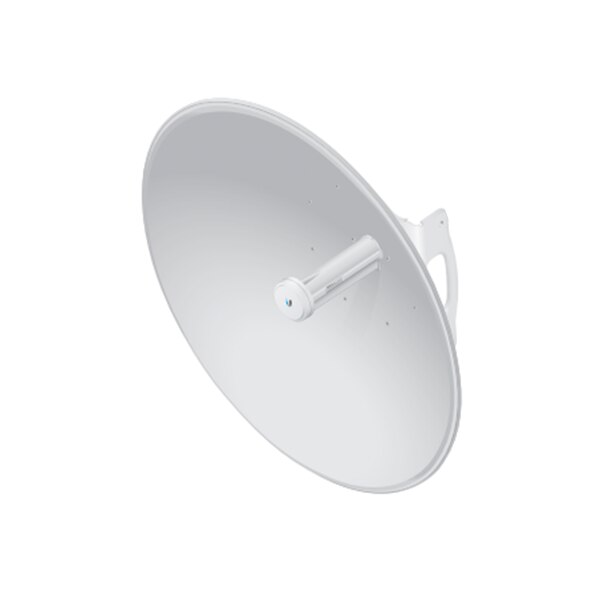

Ubiquiti PowerBeam 5GHz ac Bridge 620mm
PowerBeam ac PBE-5AC-620
High-Performance airMAX®ac Bridge
Incorporating a dish reflector design with proprietary airMAX®ac technology, the PowerBeam™ac is ideal for CPE deployments requiring maximum performance.
Integrated Radio Design
Ubiquiti’s InnerFeed™technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.
airMAX®ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.
Ubiquiti's airMAX®engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
Incredible Antenna “Beam” Performance
The form factor of the PowerBeam™ac features the highest gain for its size. The PoweBeam ac’s excellent beam directivity provides the best performance in high-noise environments.
Advanced Software Technology
Ubiquiti’s airMAX®technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
|Processor Specs||Atheros MIPS 74Kc, 560 MHz|
|Memory||64 MB DDR2,16 MB Flash|
|Networking Interface||(1) 10/100/1000 Ethernet Port|
|Wireless Approvals||FCC, IC, CE|

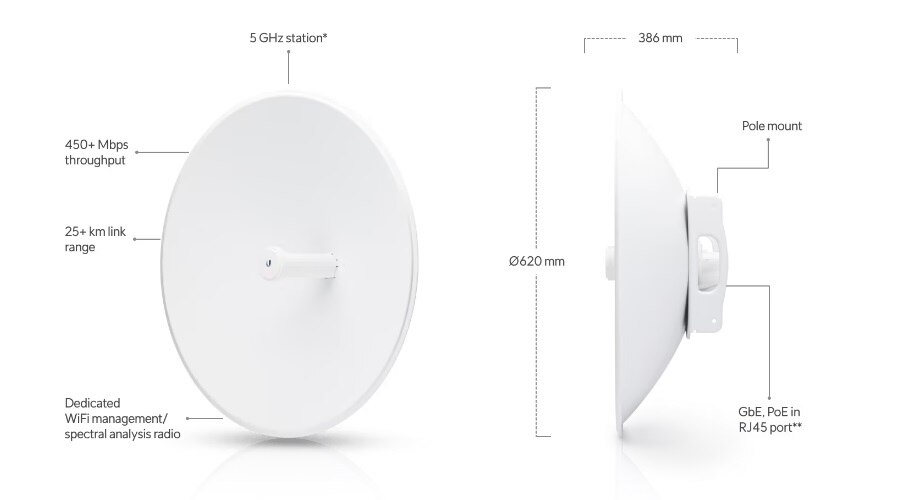

|Dimensions||620 x 620 x 386 mm (24.41 x 24.41 x 15.2")|
|Weight||6.4 kg (14.11 lbs)|
|Power Supply||24V, 0.5A Gigabit PoE|
|Power Method||Passive PoE (Pairs 4, 5+; 7, 8 Return)|
|Supported Votlage Range||20-26VDC|
|Max. Power Consumption||8.5W|
5150 - 5875 MHz
5725 - 5850 MHz
|Wind Loading||1510 N @ 200 km/h (340 lbf @ 125 mph)|
|Wind Survivability||200 km/h (125 mph)|
|LEDs||(1) Power, (1) LAN, (4) WLAN|
|Signal Strength LEDs||Software-Adjustable to Correspond to Custom RSSI Levels|
|Enclosure||Outdoor UV Stabilized Plastic|
|Mounting||Pole-Mount Kit Included|
|ESD/EMP Protection||Air: ± 24 kV, Contact: ± 24 kV|
|Operating Temperature||-40 to 70° C (-40 to 158° F)|
|Operating Humidity||5 to 95% Noncondensing|
|Salt Fog Test||IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5`|
|Vibration Ttest||IEC 68-2-6|
|Temperature Shock Test||IEC 68-2-14|
|UV Test||IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4|
|Wind-Driven Rain Test||ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5|
