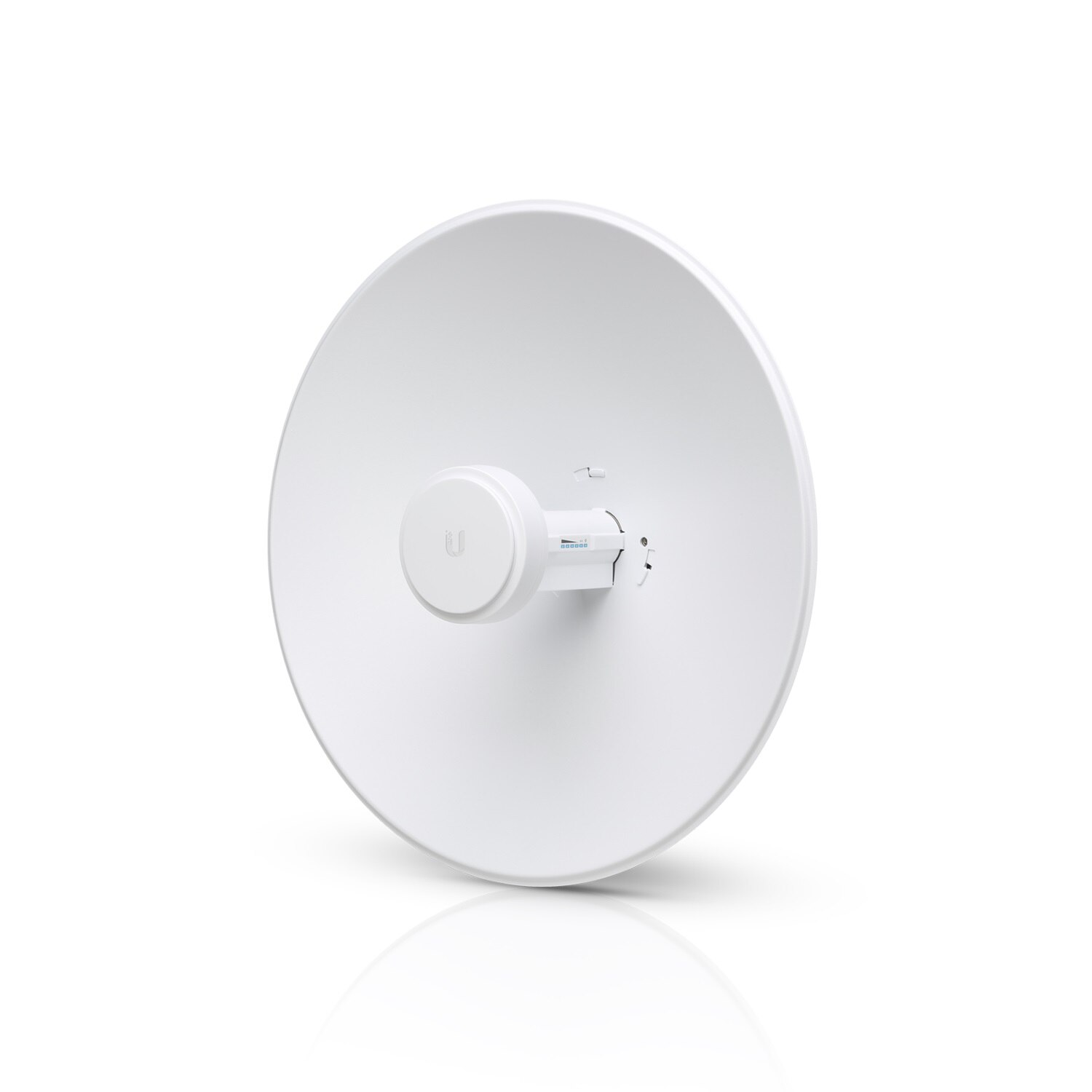

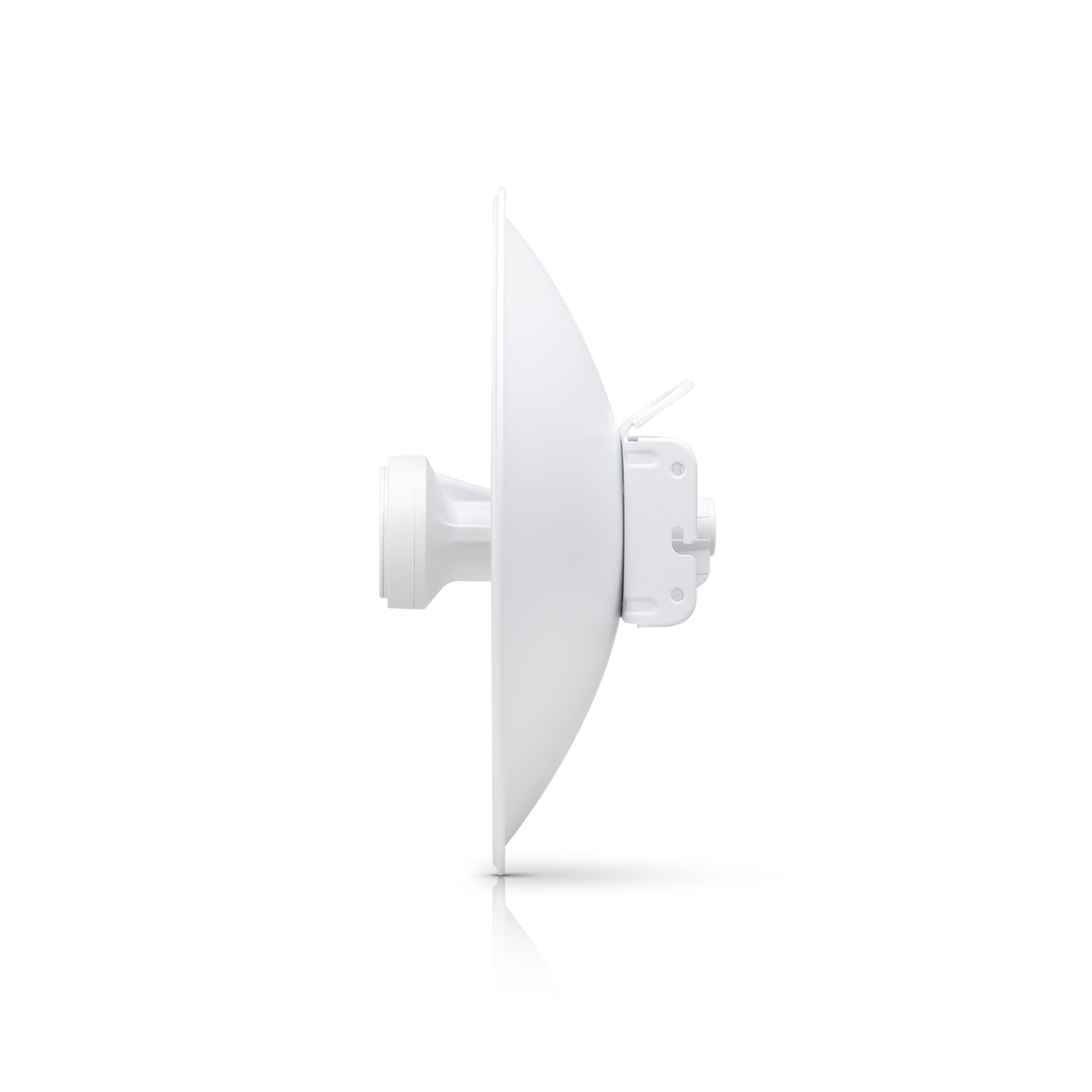

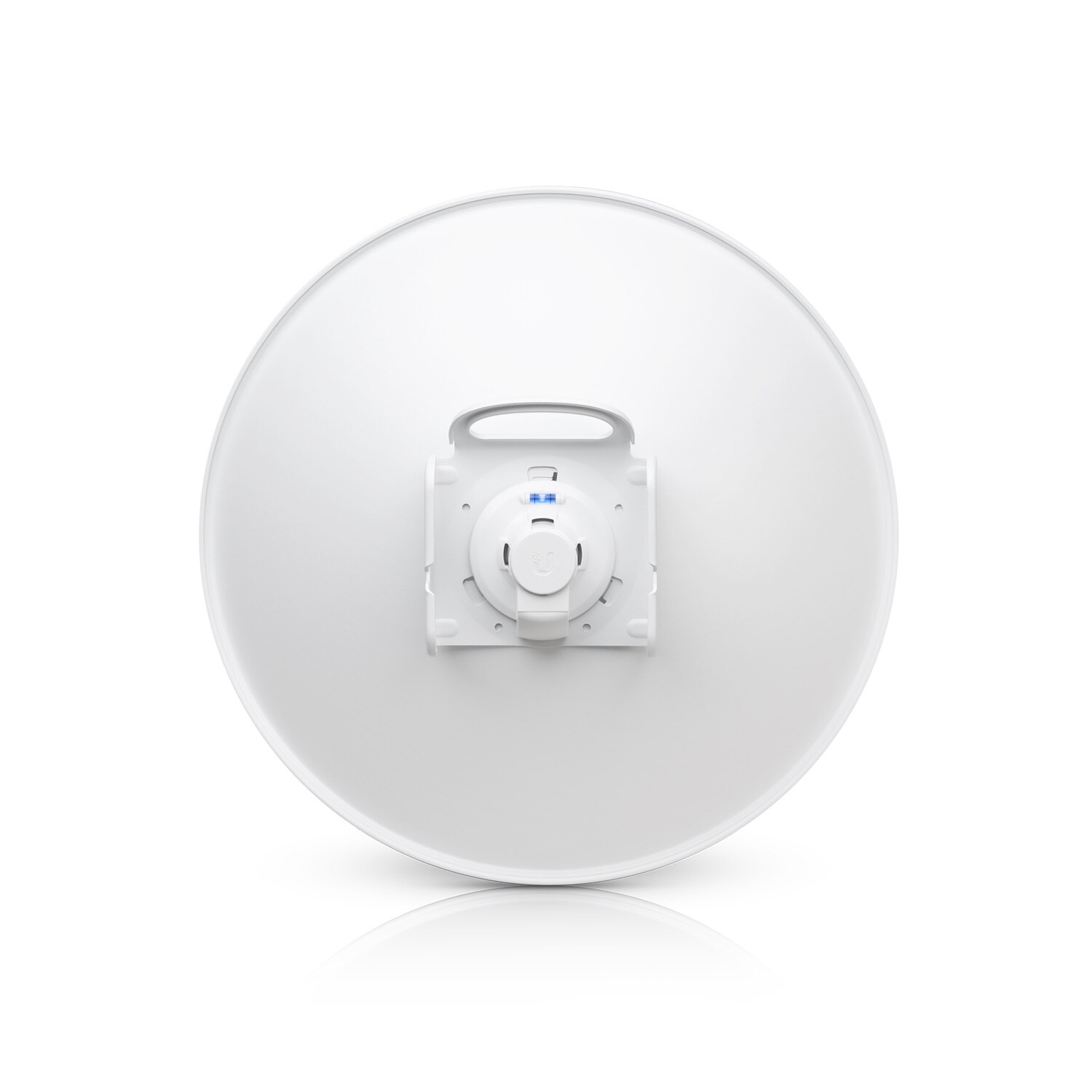

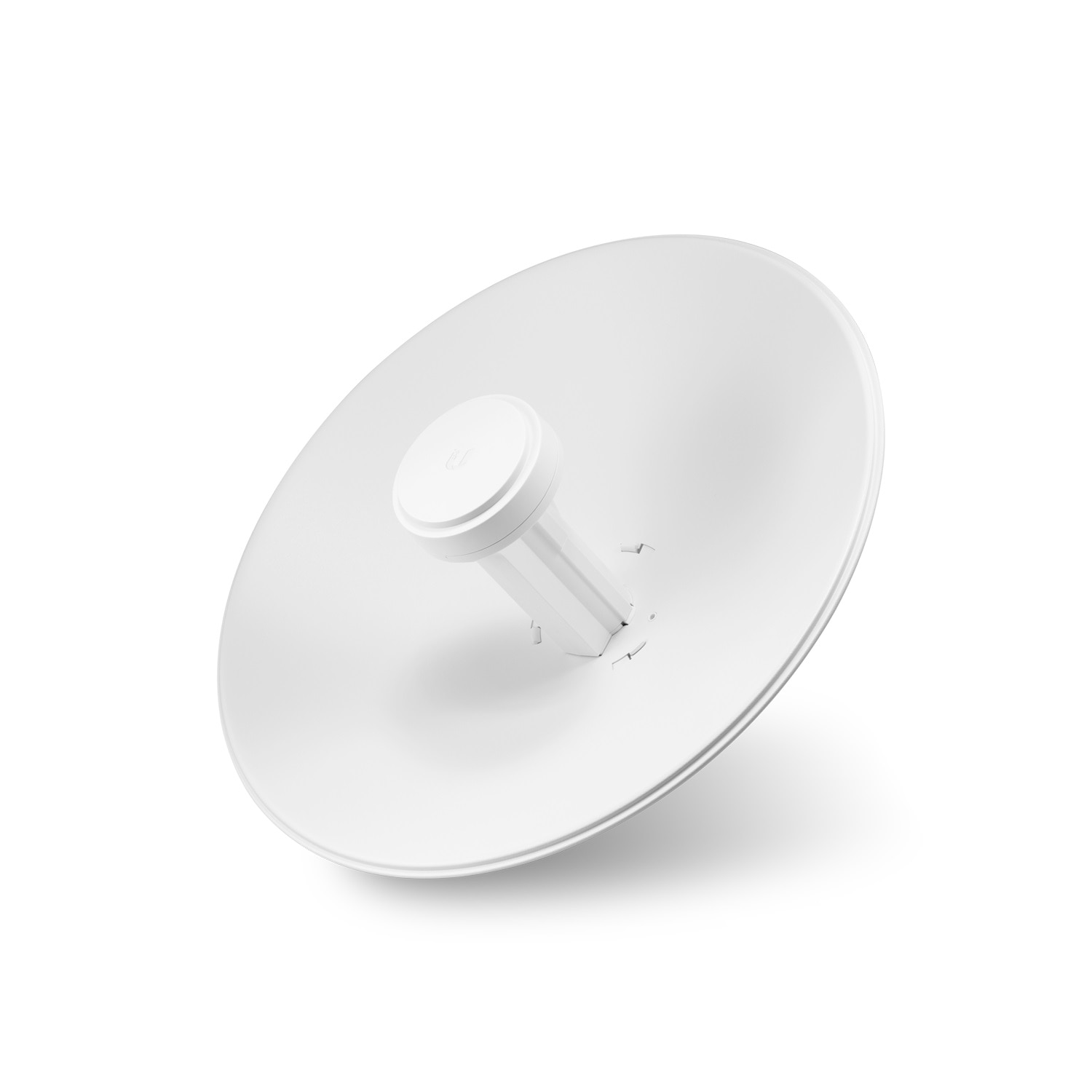

Ubiquiti PowerBeam M Series, 2.4 GHz, 18 dBi, 400mm Dish Reflector
- SKU: PBE-M2-400-US
Product Information
Ubiquiti Networks PBE-M2-400 PowerBeam M Series, 2.4 GHz, 18 dBi, 400mm Dish Reflector US Version
High-Performance airMAX® Bridge
Incorporating a dish reflector design with advanced technology, the PowerBeam™ is the latest generation of Ubiquiti Networks® airMAX® CPE for customer locations.
Integrated Radio Design

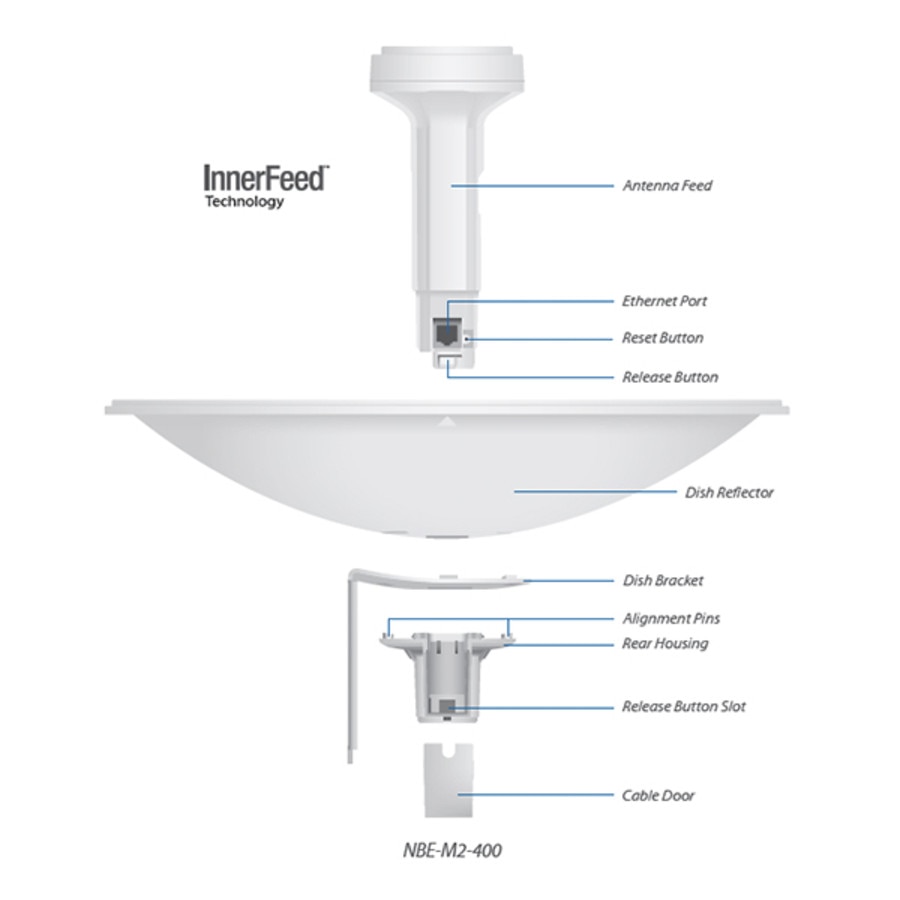

Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.
Plug and Play Installation
The PowerBeam™ requires no tools for assembly; only a single wrench is required for pole-mounting.
Incredible Antenna “Beam” Performance
The form factor of the PowerBeam™ features the highest gain for its size. The PowerBeam’s excellent beam directivity provides the best performance in high-noise environments.
Advanced Software Technology
Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Protective Radome
The PBE-RAD-400 is a protective radome that shields the radio from the elements; it is available as an optional accessory for the PowerBeam PBE-M2-400 and PBE-M5-400.
Specifications
Specifications NBE-M2-400-US
Dimensions | 420 x 420 x 289 mm (16.54 x 16.54 x 11.38") |
Weight | 1.795 kg (3.96 lb) |
Power Supply | 24V, 0.5A PoE |
Max. Power Consumption | 6W |
Operating Frequency | 2405-2475 MHz |
Gain | 18 dBi |
Networking Interface | (1) 10/100 Ethernet Port |
Processor Specs | Atheros MIPS 74Kc, 560 MHz |
Memory | 64 MB DDR2, 8 MB Flash |
LEDs | (1) Power, (1) LAN, (4) WLAN |
Signal Strength LEDs | Software-Adjustable to Correspond to Custom RSSI Levels |
Max. VSWR | 1.5:1 |
Channel Sizes | 5/8/10/20/30/40 MHz |
Polarization | Dual Linear |
Enclosure | Outdoor UV Stabilized Plastic |
Mounting | Pole-Mount (Kit Included) |
Wind Loading | 278.4 N @ 120 km/h (63 lbf @ 75 mph) |
Wind Survivability | 120 km/h (75 mph) |
ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
Operating Temperature | -40 to 70° C (-40 to 158° F) |
Operating Humidity | 5 to 95% Noncondensing |
Wireless Approvals | FCC, IC, CE |
RoHS Compliance | Yes |
Salt Fog Test | IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 |
Vibration Test | IEC 68-2-6 |
Temperature Shock Test | IEC 68-2-14 |
UV Test | IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 |
Wind-Driven Rain Test | ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5 |
