Ubiquiti PowerCable 12AWG Outdoor DC Power Cabling (1000 ft)
- SKU: PC-12
US$599.00
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information
Ubiquiti PC-12

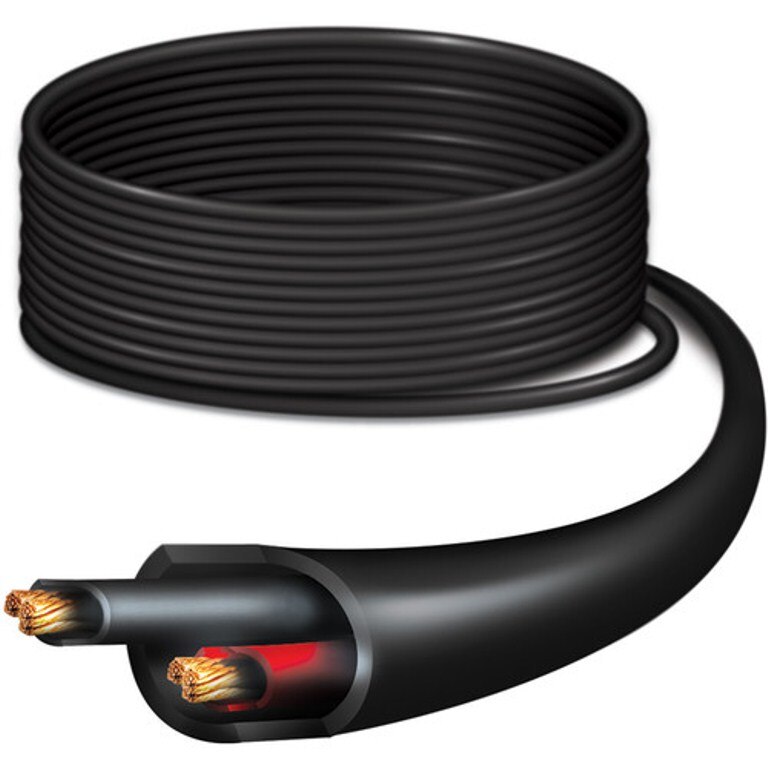

Ubiquiti PowerCable 12AWG Outdoor DC Power Cabling (1000 ft)
PC-12 is outdoor DC power cabling manufactured to engineering specifications to supply reliable power to your EdgePoint devices. Available in 1000ft reels.
Built to Last
PowerCable is an all-weather, UV-resistant cable designed for outdoor installations. PowerCable uses a fire-resistant, polyethylene jacket (FT-1) and operates in a temperature range from -30 to 90° C.
Reliable High Power
PowerCable features 12 AWG stranded tinned copper conductors, capacitance of 28 pF/ft @ 1 kHz, DCR of 1.77 Ω/1000 ft @ 20° C, voltage rating at 300V, and impedance of 56 Ω.
PowerCable Tower Deployment Example
Specifications
Specifications PC-12
| AWG | 12 AWG tinned stranded copper |
| Jacket | Fire-resistant polyethylene jacket (FT-1) |
| Temperature Range | -22 to 194°F / -30 to 90°C |
| Tensioning | 80 lb minimum pull tension |
| Capacitance | 28 pF/ft @ 1 kHz |
| Conductor DCR | 1.77 Ω/1000 ft @ 20°C |
| Voltage Rating | 300 V |
| Impedance | 56 Ω |
| Length | 1,000 ft / 304.8 m |
