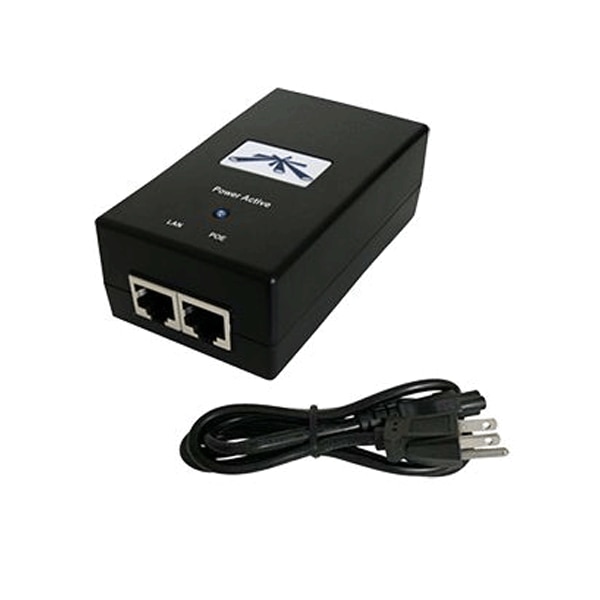

Ubiquiti airFiber POE (50v, 1.2A) with US cord
- SKU: POE-50-60W
US$29.00
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information
Ubiquiti AF24-POE airFiber POE (50v, 1.2A) with US cord
By using a grounded Ubiquiti Power over Ethernet (PoE) Adapter along with Ubiquiti TOUGHCable and TOUGHCable Connectors, you can effectively protect against ESD attacks.
Device Protection
PoE Adapters are highly reliable, and when used with Ubiquiti TOUGHCable™, they provide earth grounding and surge protection to help protect against electrostatic discharge (ESD) events.
Convenient Wall-Mounting
The 24V, 0.5A models, POE-24-12W and POE-24-12W-G, are wall-mountable using the optional wall-mount brackets.
Seamless airGateway™ Compatibility
The 15V, 0.8A and 24V, 0.5A models, POE-15-12W, POE-24-12W and POE-24-12W-G, work with the airGateway™ to bridge airMAX® connections to Wi-Fi at customer locations.
Specifications
Specifications POE-50-60W
| Model | POE-50-60W |
| Dimensions | 101 x 60 x 33 mm (3.98 x 2.36 x 1.30") |
| Weight | 192 g (6.77 oz) |
| Output Voltage | 50VDC @1.2A |
| LAN Activity Indicator | No |
| Gigabit LAN Port | Yes |
| Remote Reset Capability | No |
| Reset Button | No |
| Input Voltage | 100-240VAC @ 50-60 Hz |
| Input Current | 1.3A @ 120VAC, 0.75A @ 240VAC |
| Inrush Current | <100A Peak @120VAC, \<200A Peak @ 230VAC |
| Efficiency | 85+% |
| Output Ripple | 1% Max. |
| Switching Frequency | 65 kHz |
| Line Regulation | ± 1% |
| Load Regulation | ± 3% |
| 4-Pair Powering | Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-) |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Storage Temperature | -30 to 70°C (-22 to 158° F) |
| Operating Humidity | 35 to 95% Non-Condensing |
| AC Connector | IEC-320 C6 |
| Data IN / POE | RJ45 Shielded Socket |
| Surge Protection | Difference and Common Mode |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20µS) Power |
| Peak Pulse Current | 36A (10/1000µS) Data |
| Shunt Capacitance | <5 pf data |
| Response Time | <1 ns |
| Compliance | IEC 60950-1:2005+A1 UL60950-1 EN55022:2010, EN55024:2010 FCC Class B |
| AC Cable with Earth Ground | USA, EU, AR, BR, UL, CCC, Mexico |
