Ubiquiti USG-PRO-4 Enterprise Gateway Router with 2 CombinationSFP/RJ45 Ports
- SKU: USG-PRO-4
US$344.00
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information

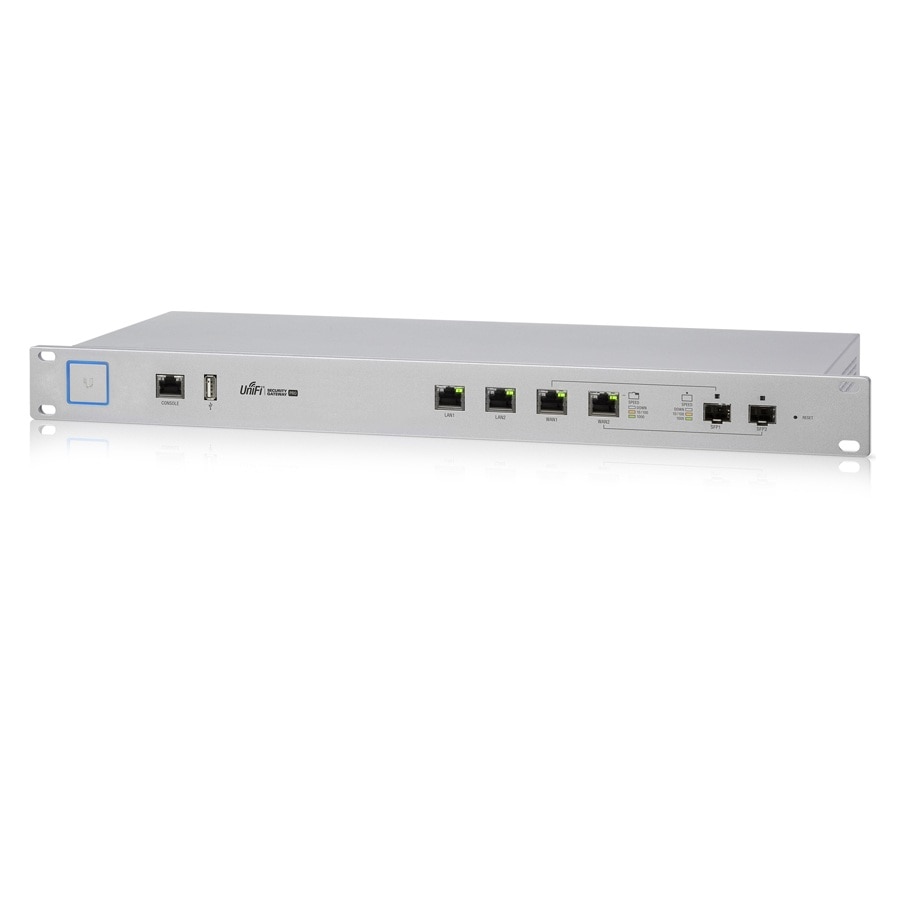

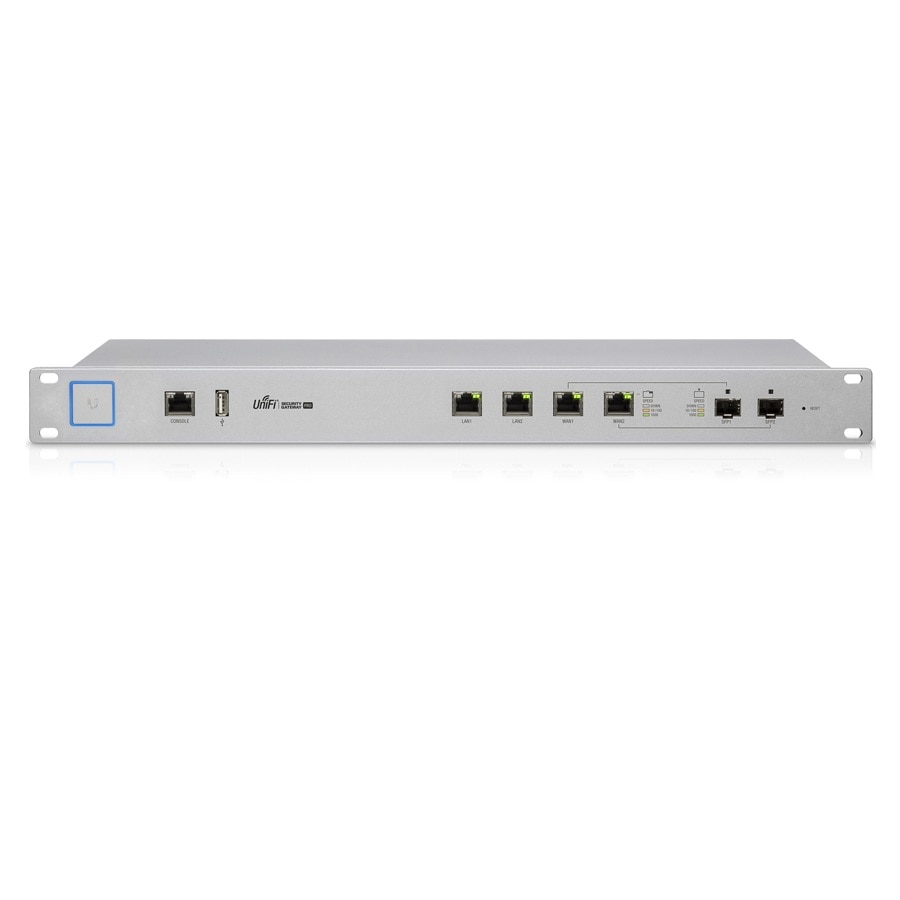

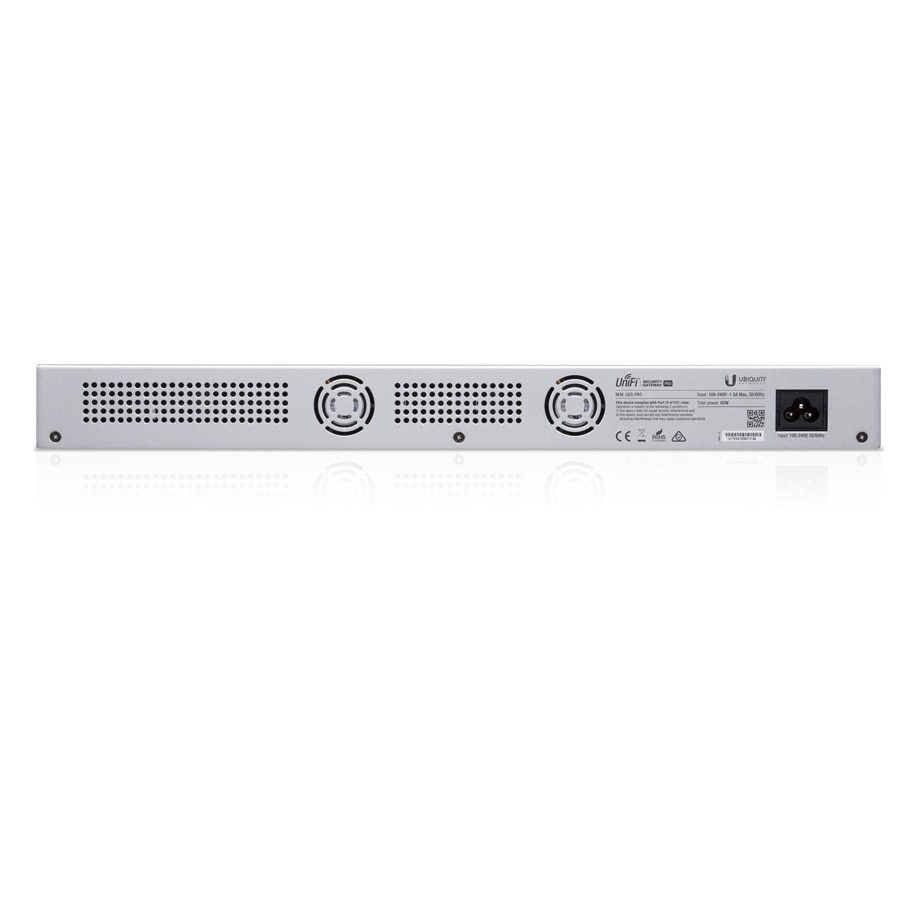

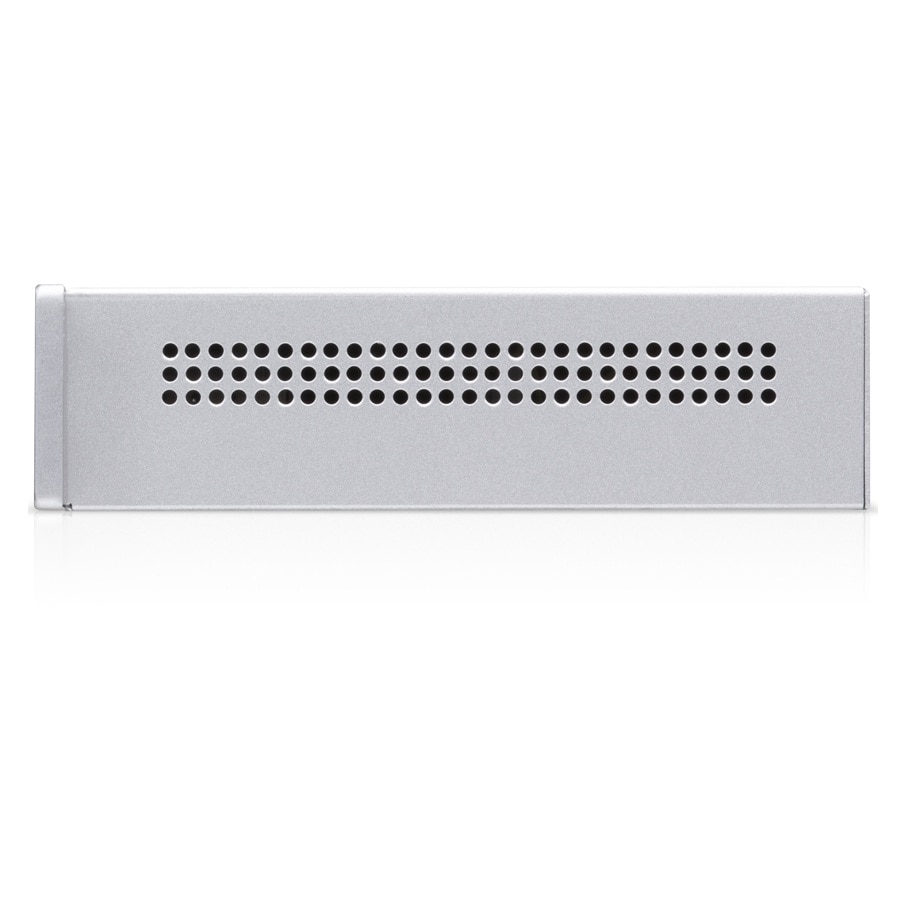

Ubiquiti UniFi Security Gateway Pro USG-PRO-4
Enterprise Gateway Router with 2 Combination SFP/RJ45 Ports
USG-PRO-4 Rack-mountable form factor with fiber connectivity options and a dual-core, 1 GHz processor for maximum hardware‑accelerated performance
The USG-PRO-4 offers optional SFP ports for fiber connectivity to support backhaul applications.
- (2) 10/100/1000 RJ45 Ports
- (2) 10/100/1000 RJ45/SFP Combination Ports
- (1) RJ45 Serial Console Port
- Rack-Mounting Capability
- Layer 3 Forwarding Performance
- Packet Size of 64 Bytes: 1,000,000 pps
- Packet Size of 514 Bytes or Larger
- 1 Gbps per Port Line Rate
Specifications
Specifications USG-PRO-4
| Dimensions | 484 x 44 x 164 mm (19.06 x 1.73 x 6.46") |
| Weight | 2.3 kg (5.07 lb) |
| Processor | Dual-Core 1 GHz, MIPS64 with Hardware Acceleration for Packet Processing |
| System Memory | 2 GB DDR3 RAM |
| On-Board Flash Storage | 4 GB |
| Max. Power Consumption | 40W |
| Power Method | 110 - 240VAC |
| Power Supply | Internal AC/DC Power Adapter, 60W (24V, 2.5A) |
| Certifications | CE, FCC, IC |
| Rackmount | Yes |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Operating Temperature | -10 to 45° C (14 to 113° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| Button | Reset |
| LEDs System Data Ports | Status Speed/Link/Activity |
| Layer 3 Forwarding Performance Packet Size: 64 Bytes Packet Size: 512 Bytes or Larger | 1,000,000 pps 1 Gbps per Port Line Rate |
| Networking Interfaces Console Port Data Ports | (1) RJ45 Serial Port (2) 10/100/1000 RJ45 Ports (2) 10/100/1000 RJ45/SFP Combination Ports |
