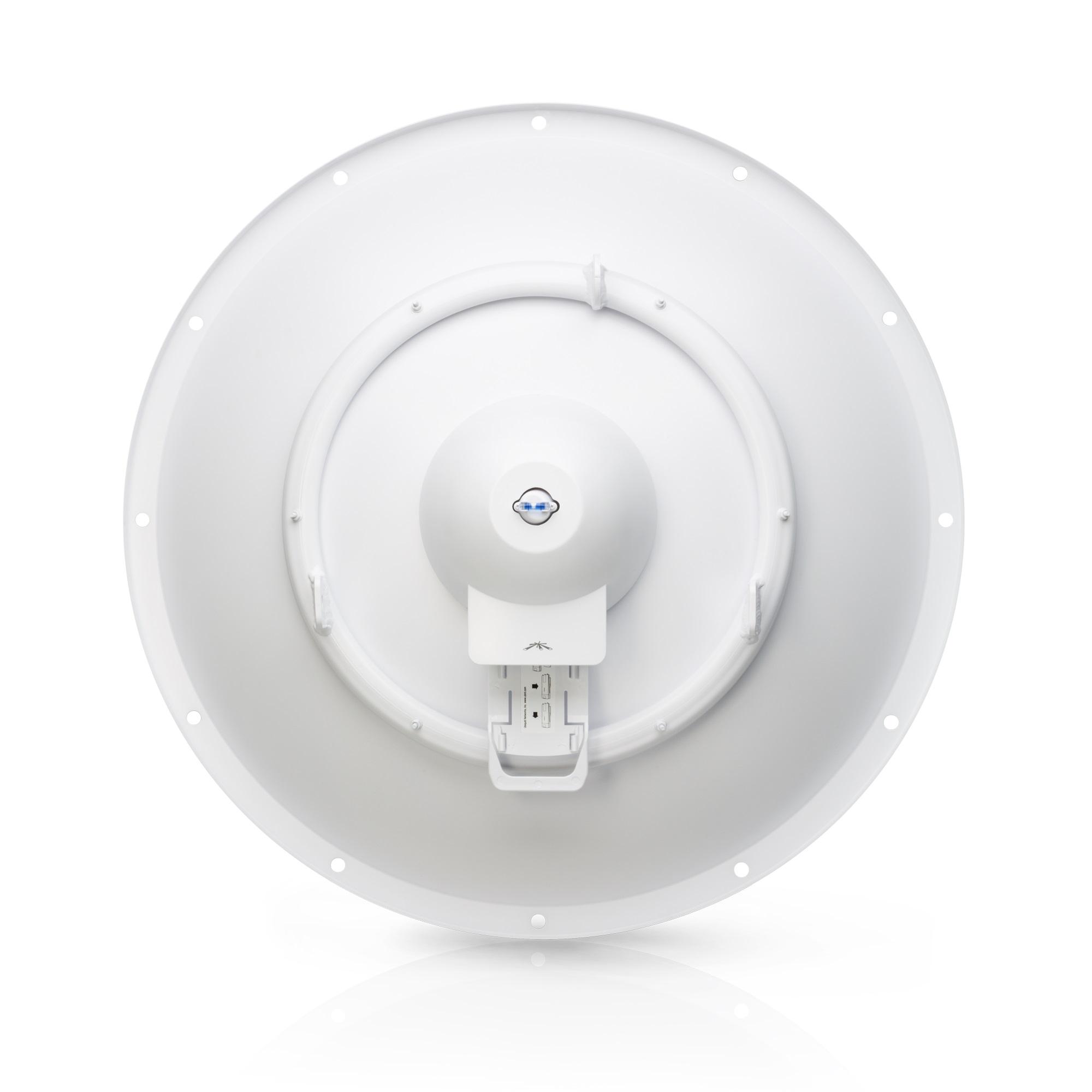

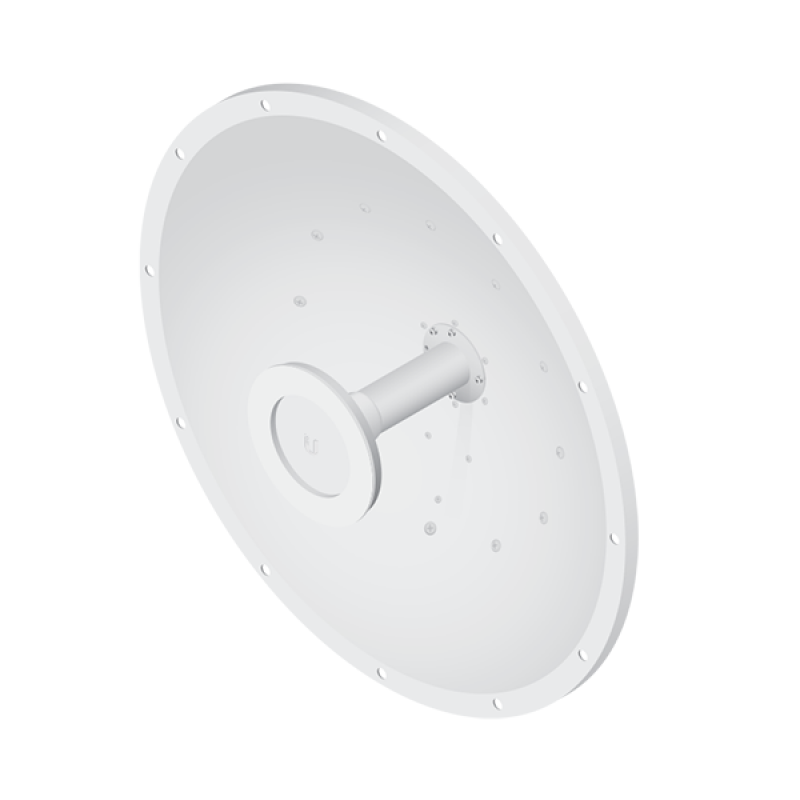

Ubiquiti 3GHz 26 dBi airFiber X Antenna
- SKU: AF-3G26-S45
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information
Ubiquiti Networks AF-3G26-S45
3GHz 26 dBi airFiber X Antenna
Compact Footprint for Deployment Flexibility
The compact form factor allows the airFiber X Antennas to be used in various applications, from carrier backhauls between towers to PtP bridging between buildings.
Powerful Performance

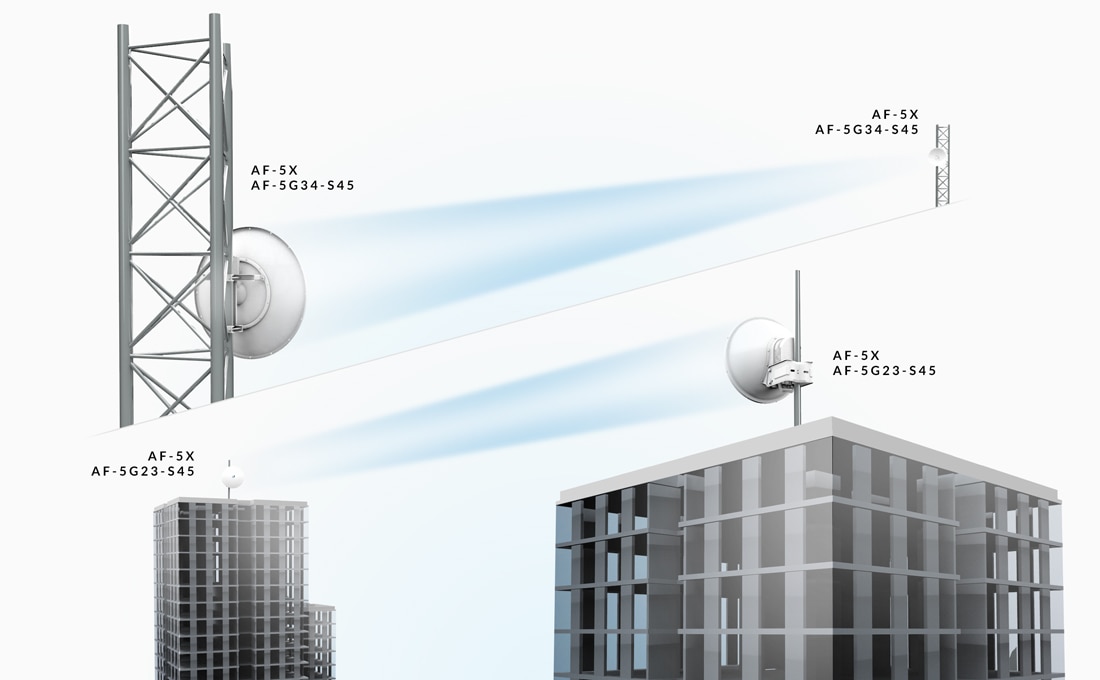

The airFiber X antenna delivers 2x2, dual-polarity performance. On the right is one example of how the airFiber X antenna with an airFiber X radio can be deployed as endpoints in a backhaul link to deliver bandwidth from a WISP network out to a neighborhood tower. From there, an airMAX® Sector antenna with a Rocket™ radio delivers bandwidth to the WISP’s customers.
Carrier-Class Construction
Incorporating a dish reflector design for excellent beam directivity, the airFiber X antennas feature robust mechanical design using industrial-strength hardware for outdoor application use.
Plug and Play Integration
airFiber X antennas and airFiber X radios have been designed to seamlessly work together. Every airFiber X antenna has a built-in airFiber X radio mount, so installation requires no special tools.

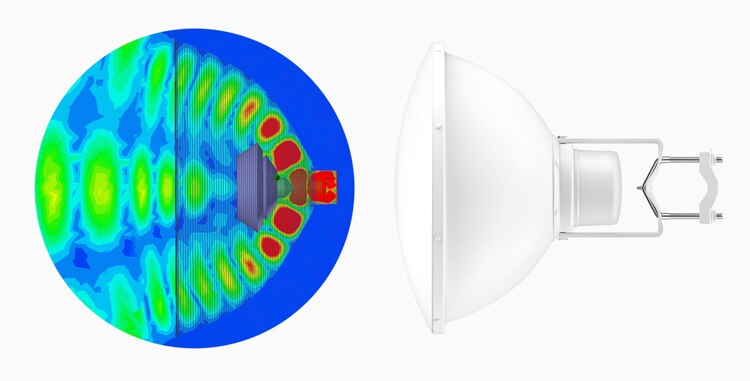

Advanced RF Isolation Design
The innovative industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high‑capacity, multipoint networks.

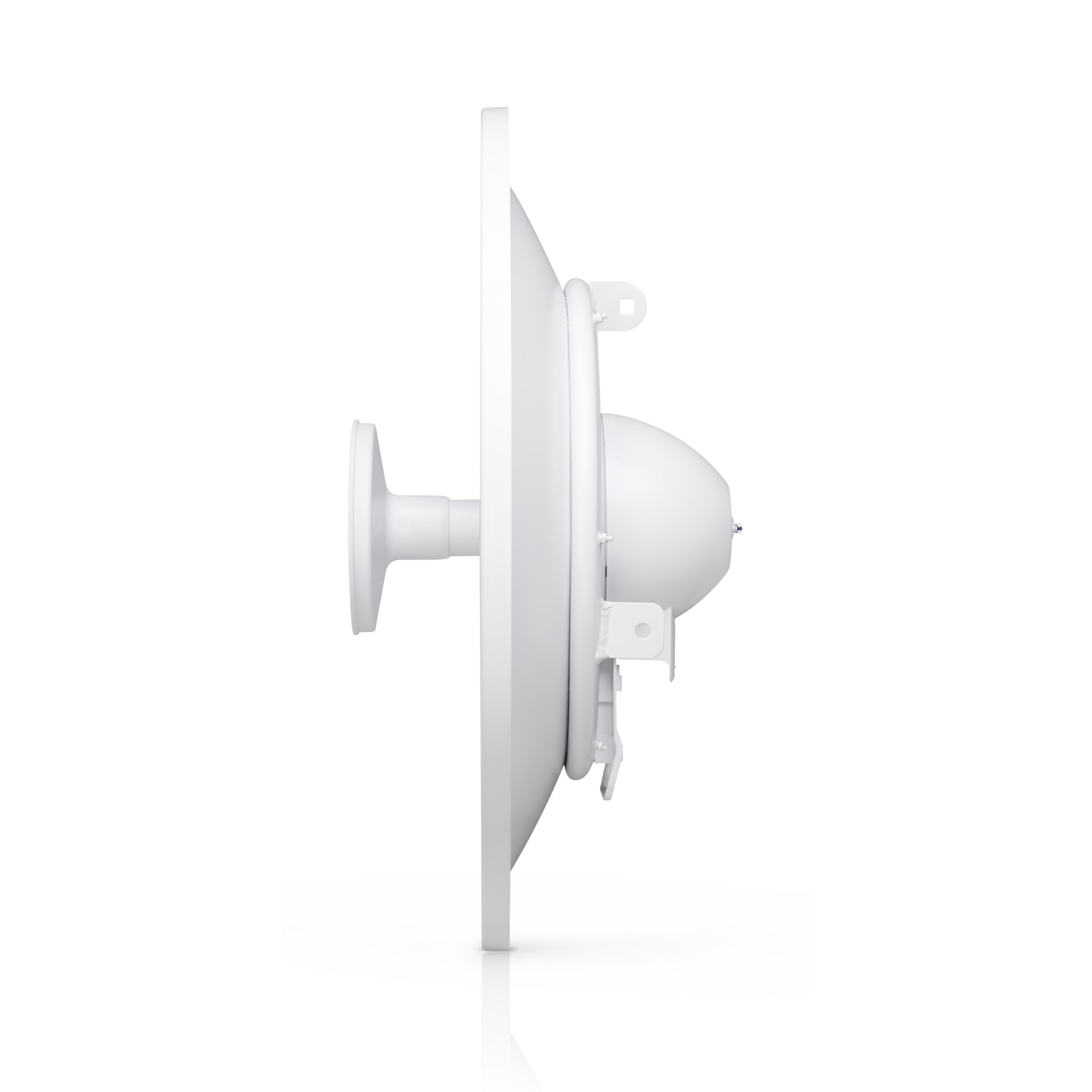

Innovative Mechanical Design
- Secure Pole-Mounting Maintains the position of the dish during harsh outdoor conditions.
- Low-Profile Form Factor Reduces wind-loading
Weatherproof Design
- Protective Shroud Protects the cables and connectors from the elements
- Integrated Radome of the AF-5G23-S45 Shields the radio from the environment
Specifications
Specifications AF-3G26-S45
Dimensions | 650 x 650 x 300 mm (25.6 x 25.6 x 11.8") |
Weight | 9.8 kg (21.61 lb) |
Frequency Range | 3.3 - 3.8 GHz |
Gain | 26 dBi |
HPOL Beamwidth | 7° (6 dB) |
VPOL Beamwidth | 7° (6 dB) |
Front-to-Back Ratio | -33 dB |
Max. VSWR | 1.4:1 |
Wind Loading | 787 N @ 200 km/h (177 lbf @125 mph) |
Wind Survivability | 200 km/h (125 mph) |
Polarization | Dual-Linear |
Cross-pol Isolation | 35 dB Min. |
ETSI Specification | EN 302 326 DN2 |
Mounting | Universal Pole Mount, airFiber Radio Mount, and Weatherproof RF Jumpers Included |
