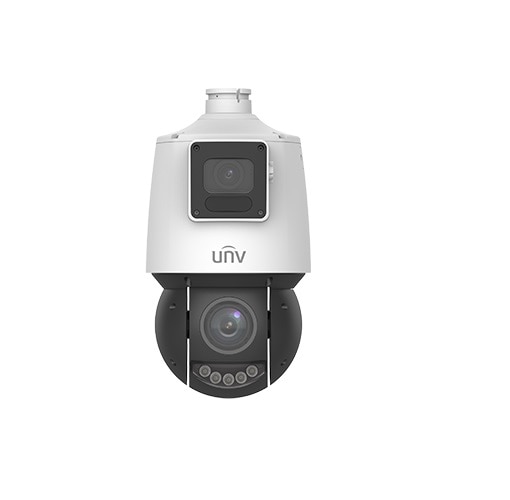

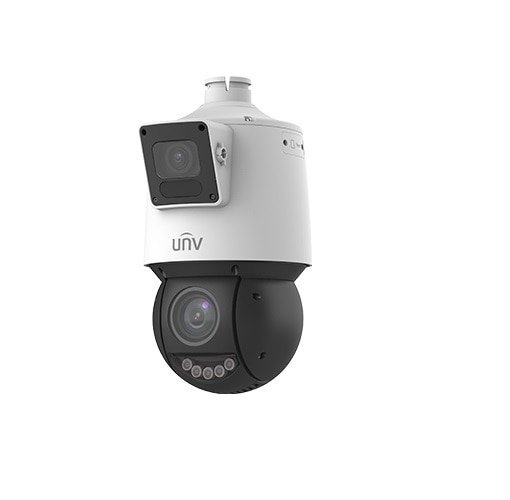

Uniview 4MP+4MP (25x zoom) Lighthunter Dual-lens Network PTZ Camera
- SKU: IPC94144SR-X25-F40C
- Manufacturer: Uniview
- Data Sheet: Download
Product Information
Uniview IPC94144SR-X25-F40C
4MP+4MP (25x zoom) Lighthunter Dual-lens Network PTZ Camera
The IPC94144SR-X25-F40C from Uniview is a Dual Lens, Lighthunter IP PTZ Camera. This new Lighthunter Mini PTZ from Uniview has a number of unique features you can count on to protect your property or facility. First of all, the two lens system works in sync with a Fixed 4.0mm Lens and a PTZ (Pan, Tilt and Zoom) Lens. That means you can see your overall image on the main lens while capturing details, or tracking motion on the second lens. Even better, you can set the PTZ portion to Auto-Track, triggered by the main lens. Smart Intrusion Prevention supports Line Crossing and can be set to send alerts if someone enters or leaves an area. You can also set parameters for People Counting and Entering/Leaving and area. In addition, the camera employs Univiews ‘Lighthunter’ Technology, so your images stay in color even in extremely low light levels.
Features:
- Fixed camera and PTZ camera integration, dual channels with one IP, look at overall situation and consider details at the same time
- High quality image with 4MP,1/2.7’’ CMOS sensor
- Ultra 265, H.265, H.264, MJPEG
- 25X optical zoom of PTZ channel allows for closer viewing of subjects
- Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
- People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
- PTZ channel can be linked to fixed channel’s smart intrusion prevention to track the objects triggering the rule
- Support sound and light warning, makes warning and alarming more noticeable
- Lighthunter technology ensures ultra-high image quality in low illumination environment
- DC12V or PoE+(IEEE 802.3at) power supply
- Alarm 2 in and 1 out, Audio 1 in and 1 out
Specifications
Specifications IPC94144SR-X25-F40C
Camera | Panorama | Detail |
Sensor | 1/2.7", 4MP, CMOS | 1/2.7", 4MP, CMOS |
Min. Illumination | Color:0.003 lux (F1.6, AGC ON) 0 lux with IR | Color:0.003 lux (F1.5, AGC ON) 0 lux with IR |
Day/Night | IR-cut filter with auto switch (ICR) | |
Shutter | Auto/Manual, 1 ~ 1/100000s | |
WDR | 120dB | |
S/N | >56dB | |
Lens | ||
Lens type | 4mm@F1.6 | 4.8~120mm@F1.5, AF automatic focusing and motorized zoom lens |
Optical Zoom | N/A | 25X |
Iris | Fixed aperture; F1.6 | Auto; F1.5(W)~F3.8(T) |
Angle of View (H) | 91.3° | 55.46° ~ 3.09° |
Angle of View (V) | 51.5° | 32.94° ~ 1.73° |
Angle of View (O) | 112.3° | 68.22° ~ 3.65° |
DORI | |||||||
DORI Distance | Lens (mm) 4 (Panorama) 4.8 (Detail 120 (Detail) | Detect (m) 90.0 (295.3 ft) 123.8 (406.0 ft) 2475.0 (8120.1 ft) | Observe (m) 36.0 (118.1 ft) 49.5 (162.4 ft) 990.0 (3248.0 ft) | Recognize (m) 18.0 (59.1 ft) 24.8 (81.2 ft) 495.0 (1624.0 ft) | Identify (m) 9.0 (29.5 ft) 12.4 (40.6 ft) 247.5 (812.0 ft) | ||
Illuminator | |||||||
IR Range | Up to 30m (98.4 ft) | Up to 100m (328.1 ft) | |||||
Wavelength | 850nm (IR) | ||||||
Light On/Off Control | Auto/Manual | ||||||
Video | |||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
Frame Rate | Main Stream: 4MP (2688*1520),Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps; | Main Stream: 4MP (2688*1520),Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; Third Stream: D1 (720*576), Max 30fps; | |||||
Video Bit Rate | 128 Kbps ~ 16 Mbps | ||||||
U-code | Support | ||||||
ROI | Up to 8 areas | ||||||
Video stream | Triple streams | ||||||
OSD | Up to 8 OSDs | ||||||
Privacy Mask | Up to 4 areas per scene | 24 areas, up to 4 areas per scene | |||||
Image | |||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
Digital noise reduction | 2D/3D DNR | ||||||
Smart IR | Support | ||||||
Flip | Normal/Flip Vertical/Flip Horizontal/180° | ||||||
HLC | Support | ||||||
BLC | Support | ||||||
Defog | Digital defog | ||||||
Intelligent | |||||||
Smart Intrusion Prevention | Support false alarm filtering: Cross line detection, Intrusion detection, Enter area detection, Leave area detection | ||||||
People Counting | Support people flow counting and crowd density monitoring | ||||||
Linkage Function | Support. Triggered by fixed lens via smart intrusion prevention function to track target | N/A | |||||
Events | |||||||
Basic Detection | Motion detection, Audio detection, Tampering Alarm | ||||||
Auto Tracking | N/A | Support | |||||
General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||||
Audio | |||||||
Audio Compression | G.711U, G.711A | ||||||
Audio Bitrate | 64 Kbps | ||||||
Two-way Audio | Support | ||||||
Suppression | Support | ||||||
Sampling Rate | 8 kHz | ||||||
Storage | |||||||
Edge Storage | Micro SD, up to 256 GB | ||||||
Network Storage | ANR, NAS(NFS) | ||||||
Network | |||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS | ||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | ||||||
User/Host | Up to 32 users. 3 user levels: administrator, operator and common user | ||||||
Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||||
Client | EZStation EZLive EZView | ||||||
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||||
Pan & Tilt | |||||||
Pan Range | N/A | 360° | |||||
Pan Speed | N/A | 0.1°/s ~ 80°/s | |||||
Preset speed: N/A | Preset speed: 80°/s | ||||||
Tilt Range | 18° ± 5° | -15° ~ 90° | |||||
Tilt Speed | N/A | 0.1°/s ~ 80°/s | |||||
Preset speed: N/A | Preset speed: 80°/s | ||||||
Number of Presets | 1024 | ||||||
Preset Patrol | 16 patrols, up to 64 presets for each patrol | ||||||
Route Patrol | 16 patrols, up to 32 actions for each patrol | ||||||
Recorded Patrol | 16 patrols, up to 128 actions for each patrol | ||||||
Patrol Stay Time | 15s~1800s | ||||||
Preset Image Freeze | N/A | ||||||
Home Position | Support | ||||||
Interface | |||||||
Audio I/O | 1/1 | ||||||
Alarm I/O | 2/1 | ||||||
Serial Port | 1 RS485 | ||||||
Built-in Mic | N/A | ||||||
Built-in Speaker | Support | ||||||
Wi-Fi | N/A | ||||||
Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||||
Video Output | N/A | ||||||
Certification | |||||||
EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | ||||||
Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | ||||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||||
Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) | ||||||
General | |||||||
Power | DC12V (±25%), PoE+(IEEE 802.3at) | ||||||
Power consumption: MAX 24W | |||||||
Power Interface | Ø 5.5mm coaxial power plug | ||||||
Dimensions (Ø x H) | Φ163 x 304mm (Φ6.4” x 12.0”) | ||||||
Weight | 2.27kg (5.00lb) | ||||||
Working Environment | -40℃ ~ +65℃(-40°F ~ +149°F),Humidity: ≤95% RH (non-condensing) | ||||||
Storage Environment | -40℃ ~ +70℃(-40°F ~ +158°F),Humidity: ≤95% RH (non-condensing) | ||||||
Surge protection | 6KV | ||||||
Reset button | Support |
