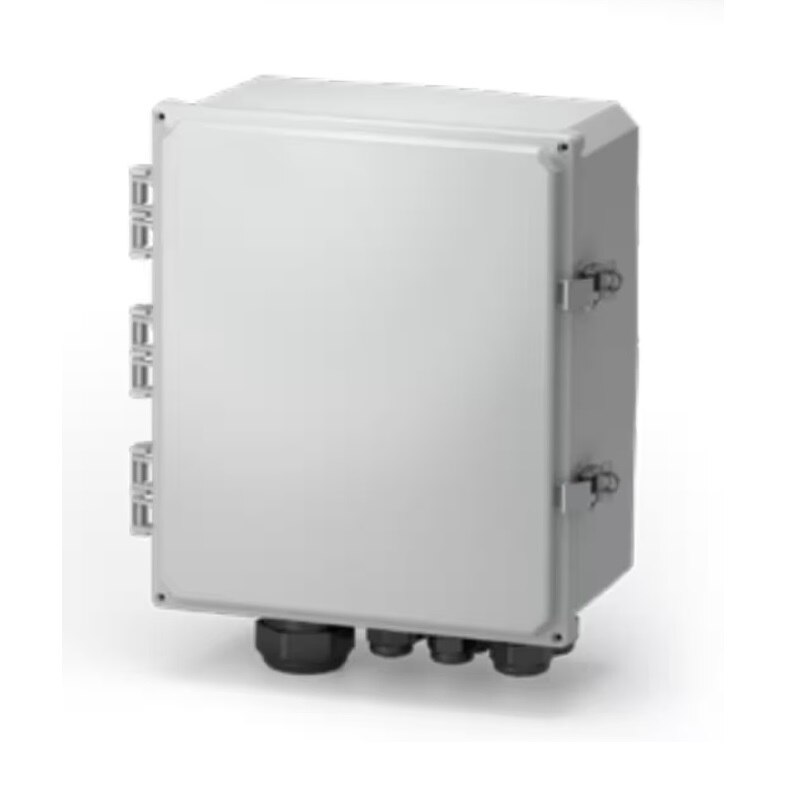

viaPhoton Outdoor Hybrid Enclosure, 24 Fibers, 6 Power Circuits, No Tray, Gland Pattern 4
- SKU: OHE-24-6PN-G4
$947.34 $966.67
- Manufacturer: viaPhoton
- Data Sheet: Download
Product Information
viaPhoton OHE-24-6PN-G4
Outdoor Hybrid Enclosure, 24 Fibers, 6 Power Circuits, No Tray, Gland Pattern 4
viaPhoton is constantly innovating to anticipate and meet all of your connectivity needs. The patented Outdoor Hybrid Enclosure (OHE) with overvoltage protection is no exception. The engineered flip-tray mechanism offers dedicated fiber access, optical path testing becomes easier, and maintenance becomes faster. The spring-loaded clip ensures smooth fiber travel and saves time when routing cable. The universal brackets allow the enclosure to be mounted to any horizontal or vertical structure.
Features:
- NEMA 4X rating for harsh environment protection

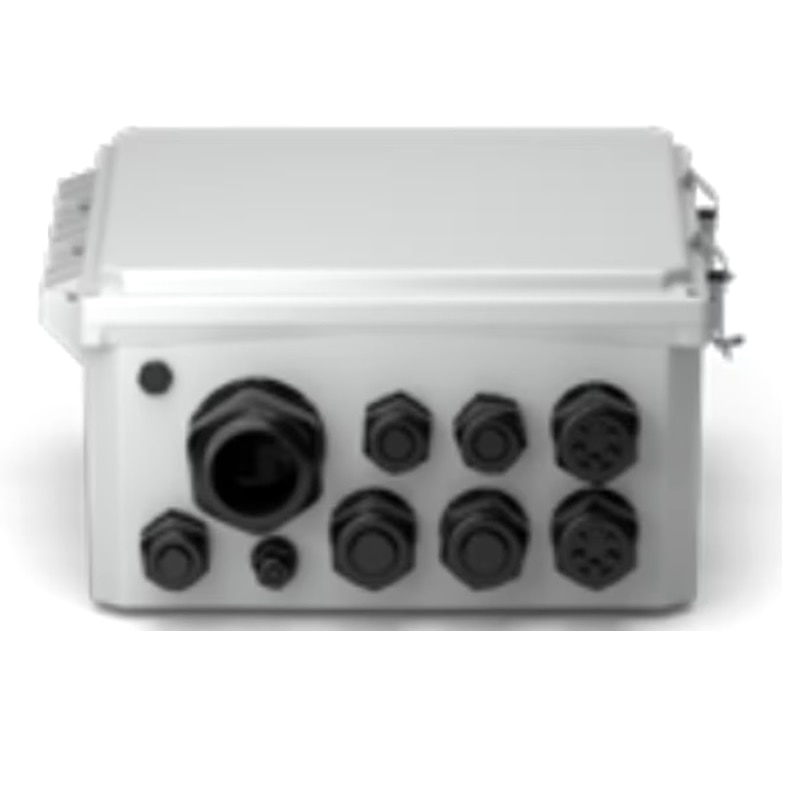

- Gland sizes for range of cable diameters (5 mm - 44 mm)
- 24 Fiber (6 LC QUAD SM adapters)
- 12 (14-AWG to 4-AWG) Power Terminals
- Ground bus bar
- Stainless Steel Wall Mount
Specifications
Specifications OHE-24-6PN-G4
| Dimension | 15.5 in H x 13.6 in W x 7.72 in D 17 in H with glandsinch |
| Weight | 12 lbs |
| Power Terminals | 12 Terminals (6 Circuits) |
| Fiber Adapter | 6 LC Quad Adapter |
| Cable Gland Seal | Custom configuration for cable diamters (5 mm - 44 mm) |
| Enclosure Material | Polymer, Ruggedized, UV Rated, Gray |
| STANDARD FEATURES | |
| Mounting | Wall Mount |
| Enclosure Door | Hinged |
| Security | Stainless steel latch with padlock clasp |
| Outdoor Temperature Range | -40°C to +80°C (-40°F to +176°F) |
| Environmental, Sealing | NEMA 4X, IP 66 |
| Instrumented Dart Impact | 73°F, 565 in-lb. |
| Falling Ball Impact | 73°F 900 in/lb. Test Spec. UL-746 |
| Flame Rating | UL, 5VA. Test Spec. UL-94 |
| Outdoor UV Exposure | F1. Test Spec UL |
