9Dot 2 Gigabit Ethernet Ports Surge Protector Injector with Cambium Synchronization, Max Voltage 60 Volts, Max Current 3A per Port, Universal GPS Antenna with Mounting Kit Included
- SKU: GS-LT-GPSA
- Manufacturer: 9Dot
- Data Sheet: Download
Product Information

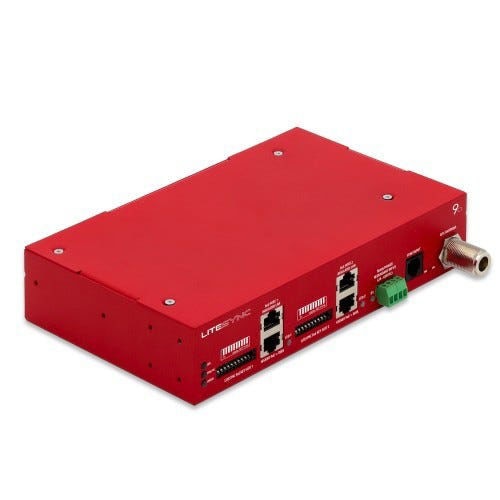

9Dot GS-LT-GPSA
2 Gigabit Ethernet Ports Surge Protector Injector with Cambium Synchronization, Max Voltage 60 Volts, Max Current 3A per Port. For the configuration of each port a GigaKey hardware key is needed. Universal GPS Antenna with Bracket Mounting Kit Included.
High Power Gigabit PoE Injector
2 Gigabit Power over Ethernet ports, up to 3A (150W @ 50V) load on each port.
Cambium Sync
LiteSync injects the Cambium Sync pulse and it's compatible with Cambium Core connected device such as 450m and 450i.
Integrated GPS and Sync-IN port
Sync pulse can be generated by the integrated GPS or aquired by an external sync source (GigaSync, CMM5, UGPS).
Multi PoE port mapping 9.KEY
Compatible with every kind of PoE device. Pinout is defined by hardware key.
Short Circuit and Surge Protection
Devices connected are protected against short circuits, electrostatic surge and electric shocks. The combination of different types of dischargers maximizes efficiency and reduces action time.
Galvanic isolation
Galvanic isolation protects circuits and people against surge between input side and output side. This results in the best protection for your devices and for you.
Half Unit Rack Mount
LiteSync is 1U high, it can be installed in a rack using the half unit flange or in pair with another Lite Sync.
Specifications
Specifications GS-LT-GPSA
| Electrical | |
| Operating Voltage | 24 - 60 Volts DC |
| Max Current | 3 A per port |
| Power Connector | 1.5 mm2 wires terminal blocks |
| Ethernet Connectors | 2 x Shelded RJ45 Jacks (LAN / PoE + Data) |
| GND Connector | 4 mm lug |
| PoE Mode | 9.KEY selectable (A+B reverse polarity, A+B, B, B reverse polarity) |
| Transmission Speeds | 10BaseT; 100BaseT; 1000BaseT |
| Load Indicator | Visual indication of load (green: <50%, yellow: 50%-75%, red: >50%) |
| Active Protection | Short Circuit Protection, Overvoltage control, Overload control |
| Syncronization Method | Cambium Sync |
| SPD | |
| Spark Over Voltage | 90 Volts |
| Peak Surge Current | 15kA |
| Modes of Protection | All Lines (1-8) Protected (L-L) and (L-G) |
| SPD Technology | 2 stages: TVS, GDT |
| Environmental | |
| Operating Temperature | -40°C to +80°C |
| Humidity | 0 - 95% non condensing |
| Mechanical | |
| Dimensions (LxWxD) | 190 x 140 x 45 mm ( 7.48" x 5.51" x 1.77" inch) |
| Weight | 75g (0.16 lbs) |
| Enclosure Material | Varnished Iron |
| Compliance | |
| Safety | EN 60950-1:2006/A11:2009/A1:2010/A12:2011/A2:2013 |
| EMC | EN 55032, EN 55024 |
| Rohs Compliant | Yes |
