9Dot NCore Battery Charger Module
- SKU: NCORE-BATTERY
$1,156.00
- Manufacturer: 9Dot
- Data Sheet: Download
Product Information

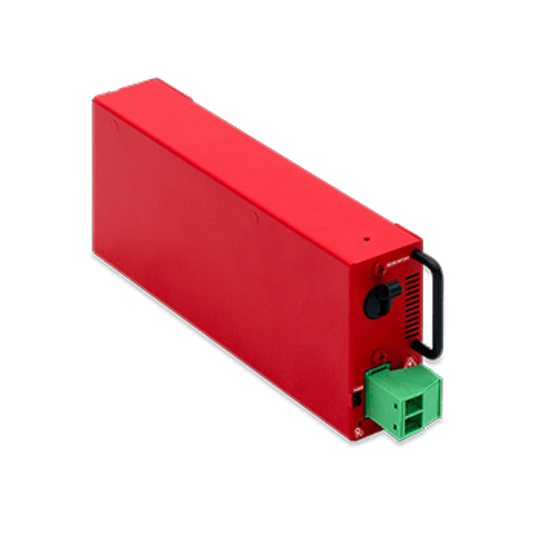

9Dot NCORE-BATTERY
NCore Battery Charger Module
The charger module is compatible with 48V lead or lithium strings. The charging current can be selected via software. In the event of a power failure or insufficient input, the system intervenes to ensure the operation of the connected devices by reducing the charging speed.
The system performs programmable loading and unloading cycles during which it verifies the effective efficiency of the batteries and calculates the real autonomy in relation to the loads applied.
Specifications
Specifications NCORE-BATTERY
| Electrical | |
| Operating Voltage | 48 - 60 V DC |
| Charge Current | 3 / 5 / 10 A (software selectable) |
| Power Connector | 3 mm2 wires terminal blocks |
| Indicators | Battery Status / On Charge / Charge Current |
| Efficiency | 92% Typ |
| Environmental | |
| Operating Temperature | -10°C to +70°C |
| Humidity | 0 - 95% non condensing |
| Mechanical | |
| Dimensions (LxWxD) | 227 x 86 x 40 mm (8.93" x 3.38" x 1.57" inch) |
| Weight | 0.4 Kg (0.88 lb) |
| Enclosure Material | Varnished Iron |
