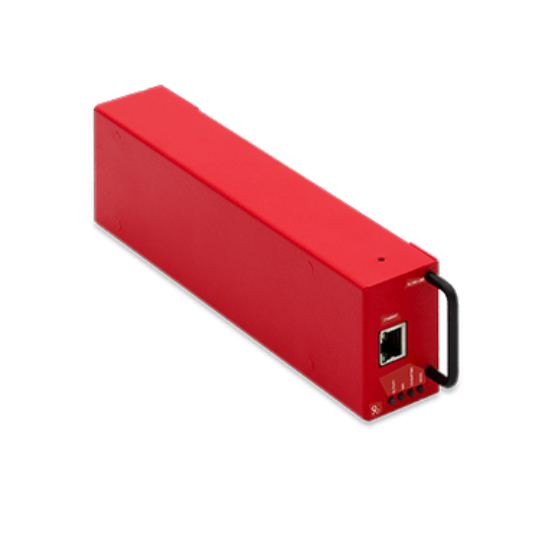

9Dot NCORE-CMD
NCore Command Module
The CMD cartridge is the controller module that mainly manages communication between the NCore and the network, furthermore in particular:
collects data from the sensors and brings it to the various interfaces, generates Wi-Fi signal for connection, to provide straightforward device set up.
Indipendent CPU
The NCoreOS operating system performs all the interfacing functions with the user through the dashboard accessible via the web interface. It is also possible to interrogate and configure the system using SNMP and API protocols.
On The Fly Update
During software updates, the system maintains the set functionality status without interrupting the voltage supplied to the connected devices. This module is also interchangeable in hot swaps.
Specifications
Specifications NCORE-CMD
| Electrical | |
| Operating Voltage | 5 V DC |
| Ethernet Connector | Shelded RJ45 Jack |
| Indicators | Main Status / On Alert / On Warning |
| Transmission Speeds | 10BaseT; 100BaseT; 1000BaseT |
| Environmental | |
| Operating Temperature | -10°C to +70°C |
| Humidity | 0 - 95% non condensing |
| Mechanical | |
| Dimensions (LxWxD) | 227 x 56 x 40 mm (8.93" x 2.20" x 1.57" inch) |
| Weight | 0.3 Kg (0.66 lbs) |
| Enclosure Material | Varnished Iron |
