9Dot NCore DCDC Input Module 800W (for NCore and NCore-Lite)

(0)No Reviews yet
  • SKU: NCORE-DCDC
$1,469.00

Out of Stock

 Open chat or call us for stock status

Product Information

9Dot NCORE-DCDC

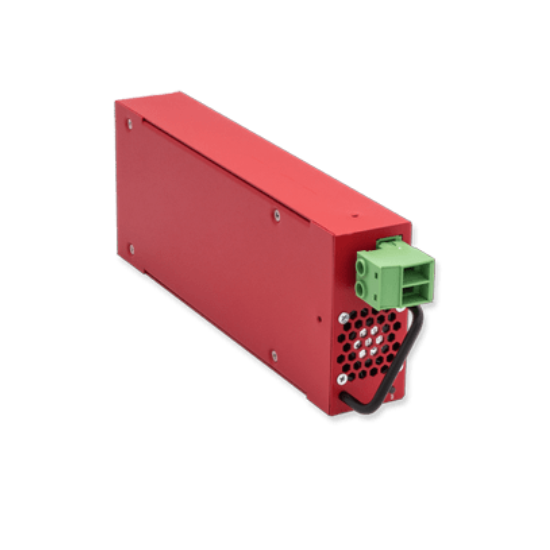

NCore DCDC Input Module 800W (for NCore and NCore-Lite)

The DCDC Input module is an 800W high efficiency isolated converter with 54V output voltage. With an extended input voltage range between 36V and 75V, it can easily be powered by batteries, DC microgrids or solar panels

It can be combined with load sharing ACDC Input modules or used as the only power source. In case of overload or insufficient input, it goes into protection to ensure battery takeover.

Specifications

Specifications NCORE-DCDC

Electrical
Operating Voltage36 - 75 V DC
Max power800 W
Power Connector16 mm2 wires terminal blocks
IndicatorsDC IN good / DC OUT good
Active ProtectionShort Circuit Protection, Overvoltage control, Overload control
I/O isolation2250 V
Output54 V DC
Efficiency95% Typ
Environmental
Operating Temperature-10°C to +55°C
Humidity0 - 95% non condensing
Mechanical
Dimensions (LxWxD)227 x 86 x 40 mm (8.93" x 3.38" x 1.57" inch)
Weight1.1 Kg (2.42 lbs)
MaterialVarnished Iron
Compliance & Warranty
RoHS compliantYes
CertificationsCE - FCC
