9dot PoE Cartridge for GS-B-V2 and GS-B-V3, 4x Ethernet Ports, 150W typ per port

(0)No Reviews yet
  • SKU: GS-G-POE-CS
$1,236.00
+ $69.22 Tariff

7 In Stock

7 in stock

Product Information

9dot GS-G-POE-CS

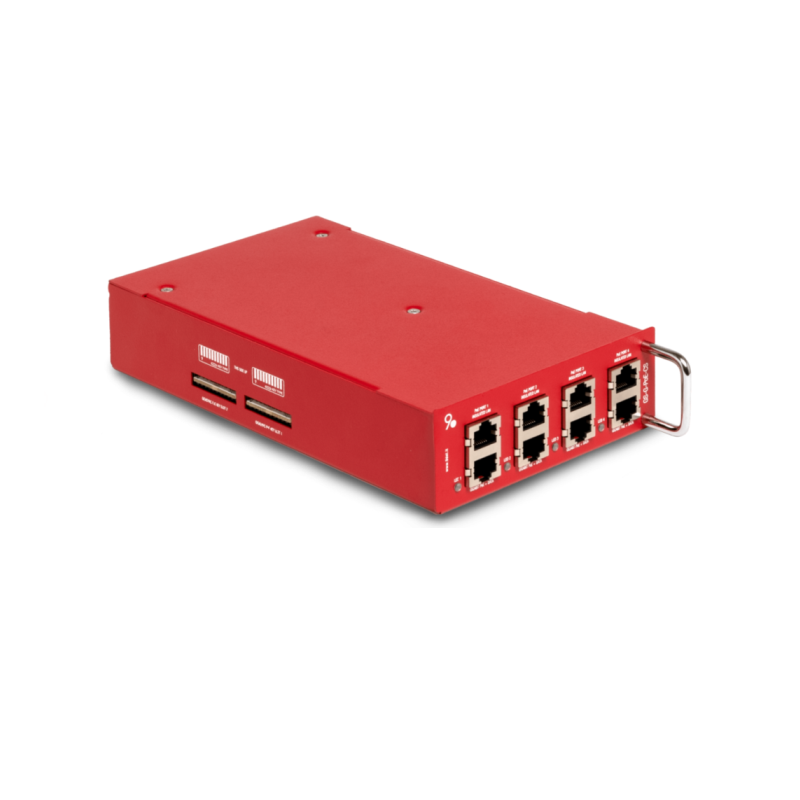

PoE Cartridge for GS-B-(V2 and V3). 4x Ethernet Ports, 150W typ per port. Cumulative for cartridge 600W only with GS-B-V3, with GS-B-V2 only 300W. For the configuration of each port a GigaKey hardware key is needed. (CambiumSync, Canopy Sync Compatible)

This cartridge is compatible with the Cambium Network synchronization standard Canopy and Cambium Sync.

Each port is therefore configurable and protected against short circuits with automatic recovery and is suitable with every kind of devices, even high power ones, up to 3A typical load.

Cambium and Canopy Sync Board

The cartridge provides power getting the synchro required by the Cambium 450m, it can be used also for the 450i, accepting either +48V or -48V power sources.

Polarity Agnostic Injection

Power Pinouts are configurable via 9dot key supporting almost any power injection scheme which is Gigabit-Compatible. Accepting either positive or negative power sources.

Manages every kind of PoE

Every single port can be configured to handle a different type of injection map, with or without synchronization pulse. The configuration is simple and does not require any information technology skill: just plug the specific electronic Gigakey and the port is configured.

Modular

Each cartridge has 4 ports that can be PoE injectors or Power Terminals. The Cartridges can be chosen based on the setup requirements and are hot-swappable.

Easy integration

The Controller Module can be integrated in every management system using SNMP.

CPU

  • Fast software and firmware update internal storage of every parameter
  • Dynamic Web Interface warning e critical event logging
  • Internet connection through integrated Wi-Fi

FEATURES

  • 2 input terminal blocks for each cartridge
  • input voltage presence led indicator for each input terminal block
  • Cambium uGPS power out on Sync In port
  • USB console port

DESIGN

  • SW/FW updates without service interruption
  • Hot Swap
  • zero input to output voltage drop and self consumption reduction
  • input voltage detection and accurate measurement

INTERFACE

  • The web interface shows voltage, temperature and load instant value and graphs
  • Through the command line interface you can read status and send commands to the GigaSync
  • Flexible management system integration

Specifications

Specifications GS-G-POE-CS

Electrical
Operating Voltage21,4-57 VDC
Typical powerup to 3A per port. 12A per cartridge with NEW GigaSync
Power ConnectorNot applicable
Ethernet connectors8x shielded RJ45 (4x data in, 4x PoE + data)
GND connectorsNot present
PoE modePoE output mapping selectable via GigaKey
Transmission Speeds10BaseT; 100BaseT; 1000BaseT
LED IndicatorPower status, port status, GigaKey status, sync type
Active ProtectionShort circuit protection, against over voltage, against overload
Synchronization MethodCanopy Sync, Cambium Sync
SPD
Spark Over Voltage90V
Peak Surge Current15 kA
Modes of ProtectionAll Lines (1-2) Protected (L-L) and (L-G)
SPD Technology2 stages: TVS, GDT
Environmental
Operating Temperature-20°C to +45°C
Humidity5% - 90% non-condensing
Mechanical
Dimensions (LxWxD)126 x 235 x 45 mm (4.96" x 9.25" x 1.77" inch)
Weight1,5 kg (3.30 lbs)
MaterialVarnished Iron
Compliance & Warranty
CertificationsCE-FCC
Conformità RoHSYes
