9dot GS-G-TER

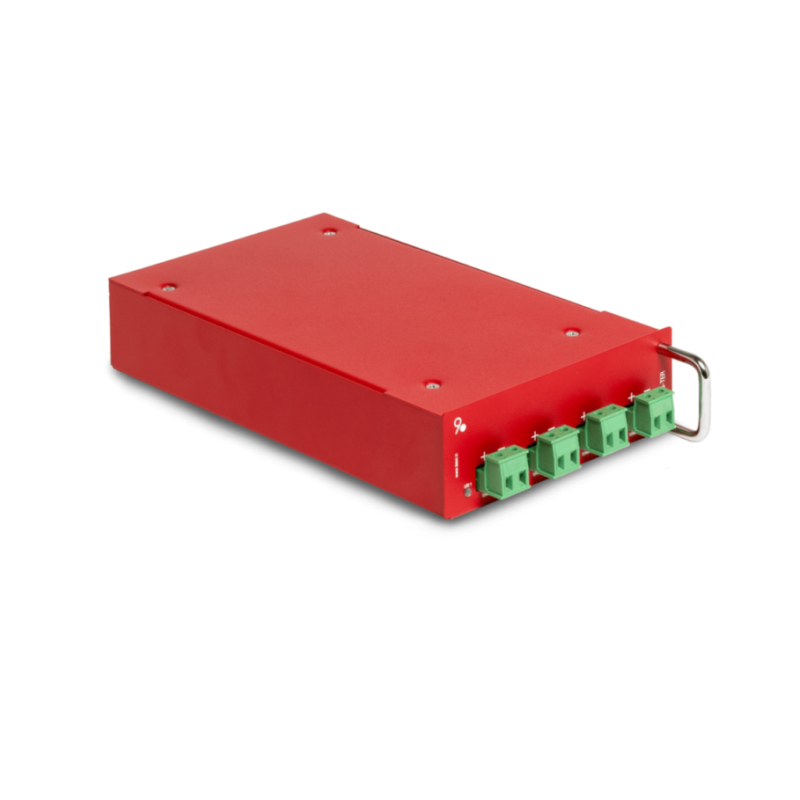

Terminals Cartridge for GS-B-(V2 and V3). 4 Terminal Ports, 150W typ per port

This cartridge has 4 connectors used to power and protect devices with optical fiber data connection. Each port can handle up to 4A load, terminal block is suitable for cables up to 4mm in diameter. Moreover, every port is protected against short circuits, overvoltage and polarity inversion with automatic delayed recovery.

Bipolar Connectors

4 connectors to power and protect devices with optical fiber data connection.

Protection

Each port is protected against short circuits with automatic recovery and fits every kind of devices, even high-power ones, up to 3A maximum load.

High Power

Each port is designed to accommodate a load up to 4A, the terminal support up to 4 mm diameter cables.

Consumption Monitoring

All parameters are under control allowing to monitor the status of connected devices.

Galvanic isolation

Galvanic isolation protects electronic circuits and technical staff handling the device against all power surges. This results in the best protection for your devices and for you.

Modular

Each cartridge has 4 ports that can be PoE injectors or Power Terminals. The Cartridges can be chosen based on the setup requirements and are hot-swappable.

Features:

  • 15 kA Peak Surge Current
  • 60 V DC max I/O voltage
  • 2 Stages tvs-gdt

Specifications

Specifications GS-G-TER

Electrical
Operating Voltage21,4-57 VDC
Typical powerUp to 3A per port. 6A per cartridge (12A peak)
Power Connector2x3.3 mm2
Ethernet connectorsNot applicable
GND connectorsNot applicable
PoE modeNot applicable
Transmission SpeedsNot applicable
LED IndicatorPower status, port status
Active ProtectionShort circuit protection, over voltage control, overload control
Synchronization MethodNot applicable
SPD
Spark Over Voltage90V
Peak Surge Current15 kA
Modes of ProtectionAll Lines (1-2) Protected (L-L) and (L-G)
SPD Technology2 stages: TVS, GDT
Environmental
Operating Temperature-20°C to +45°C
Humidity5% - 90% non-condensing
Mechanical
Dimensions (LxWxD)126 x 235 x 45 mm
Weight1,5 kg (3.30 lbs)
MaterialVarnished Iron
Compliance & Warranty
CertificationsCE-FCC
RoHS compliantYes
