AFL Cable Grounding (pack of 5), Clamp-On Ground Cable Only
- SKU: FC001091
$70.04
- Manufacturer: AFL
- AFL Cable Grounding Clamp 5 Pack Datasheet: Download
Product Information

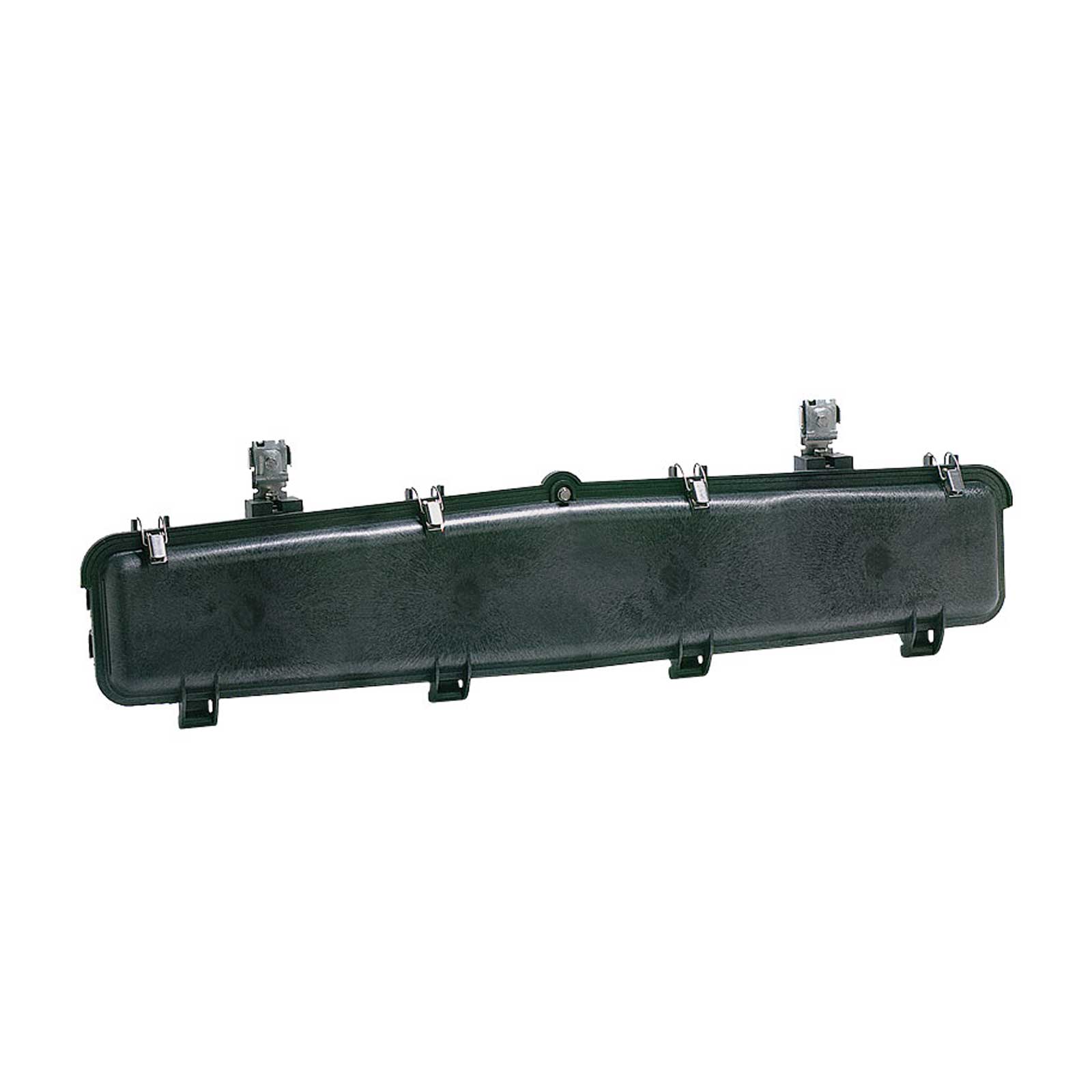

The LightGuard (LG) 420 FTTx Aerial Weathertight Fiber Optic Splice Closure is designed for taut sheath (no slack) splicing (up to 32 single) in an in-line configuration. Utilized in aerial applications, the LG-420-FTTx is ideal for FTTx access networks by providing access for up to 12 drop cables and 16 connections, requiring only a common can wrench for installation
Product Applications- Aerial Mounted Splicing
- Four individual, self-sizing grommeted cable ports: - 2 express ports - 2 multi-drop ports
- 12 drop cables and 16 connections
- Special multi-drop grommet and cable retention
- Special lock-out interior enclosure
- Patented tongue-in-groove cover seal system
- Installation and re-entry only require a common can wrench
- Cable retention clamps provide pullout
- UV resistant engineered thermoplastic
- Model No.: CGK-5
- AFL Cable Grounding (pack of 5), Clamp-On Ground Cable Only
Specifications
| Splice Capacity (Max.) - Single, Mass, Mechanical | 32, n/a, 12 |
| Number of Splice Trays (Max.) - Single, Mass, Mechanical | 1, n/a, 1 |
| Cable Entrance Configuration | In-line (taut sheath) |
| Cable Sizes (Min. O.D. - Max. O.D.) Included Grommets Single in. (mm) | (4) Cable Ports 2 @ 0.38" - 0.82" (7.6 - 20.8) |
| 6-port Multi-Drop Grommet in. (mm) | 2 (6 port) @ 0.20" - 0.37" (5.1 - 9.4) |
| Additional Grommets | |
| Dual Grommet in. (mm) | Sm: 0.27" - 0.53" (6.9 - 13.5) Lg: 0.38" - 0.70" (9.5 - 17.8) |
| Dimensions - (L x D) in. (mm) | 36.0" x 8.0" x 4.0" (914.0 x 203.0 x 102.0) |
| Weight - lbs. (kg) | 8.5 (3.81) |
