AFL LightLink Splitter Trays, 1x32
- SKU: FC000537
$733.33
- Manufacturer: AFL
- AFL LightLink Splitter Trays 1x32 Datasheet: Download
Product Information

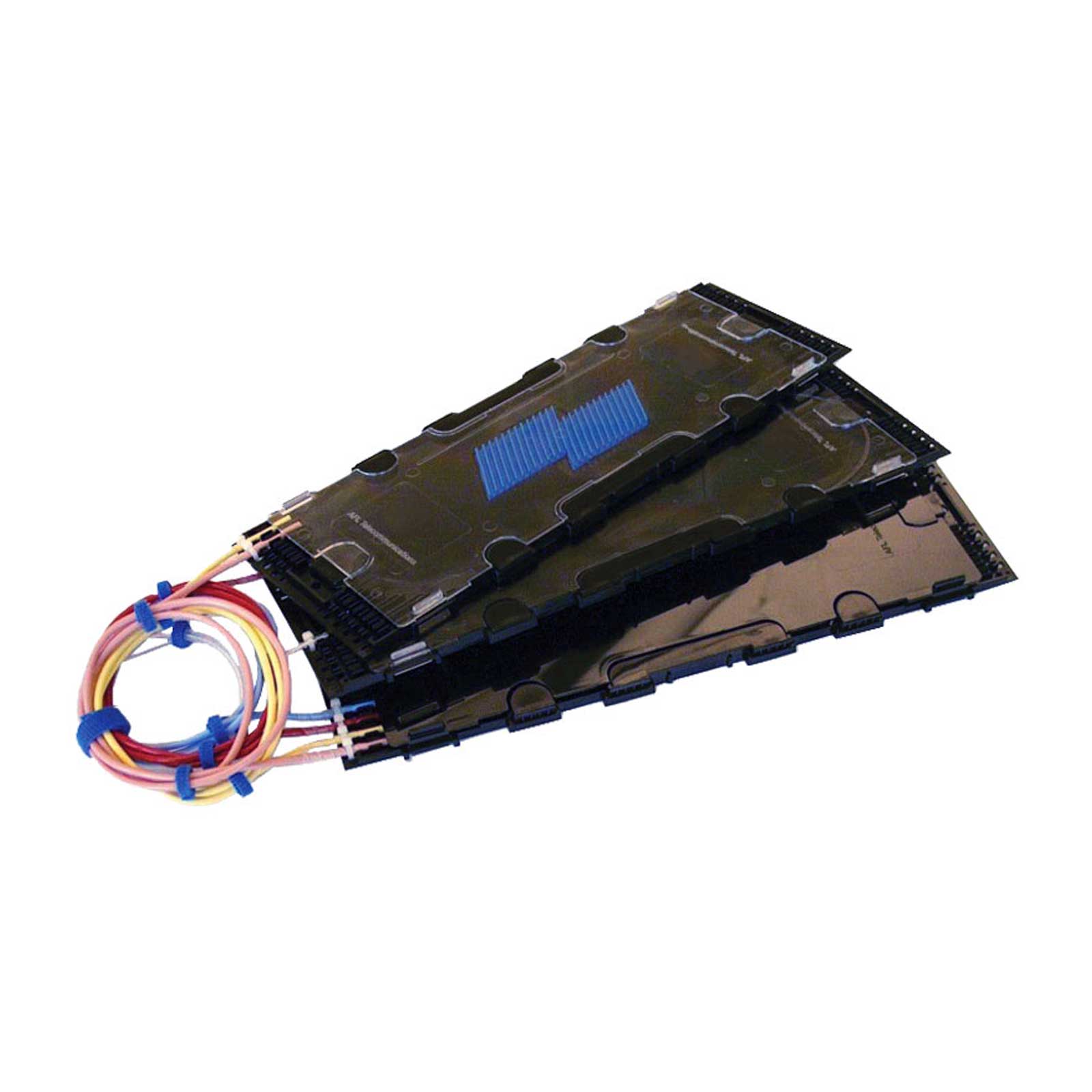

The LightLink Splitter Trays are a packaged system that include factory-preinstalled PLC splitters and splicing trays which easily fit within AFL's LG Series Closures, LL Series Wall Mount Cabinets and pedestals. These AFL splitter trays feature 1x4, 1x8, 1x16 or 1x32 planar technology with optical characteristics that include low insertion loss, high uniformity, and excellent environmental stability. The products are have longevity and durability in an Outside Plant application.
Product Features- Tamper-proof packaging
- Fits in all AFL enclosures
- No additional trays required
- Color-coded transportation tubing
- Telcordia GR-1209 and 1221-CORE compliant
- Tray PKG 1x32
- AFL LightLink Splitter Trays, 1x32
Specifications
| Wavelength Range | 1260 - 1650 nm |
| Max. Insertion Loss | 17.4 |
| Max. Uniformity | 1.7 |
| PDL (dB) Max. | 0.3 |
| Return Loss | 50.0 |
| Operating Temperature (degrees C) | -40 to 85 |
