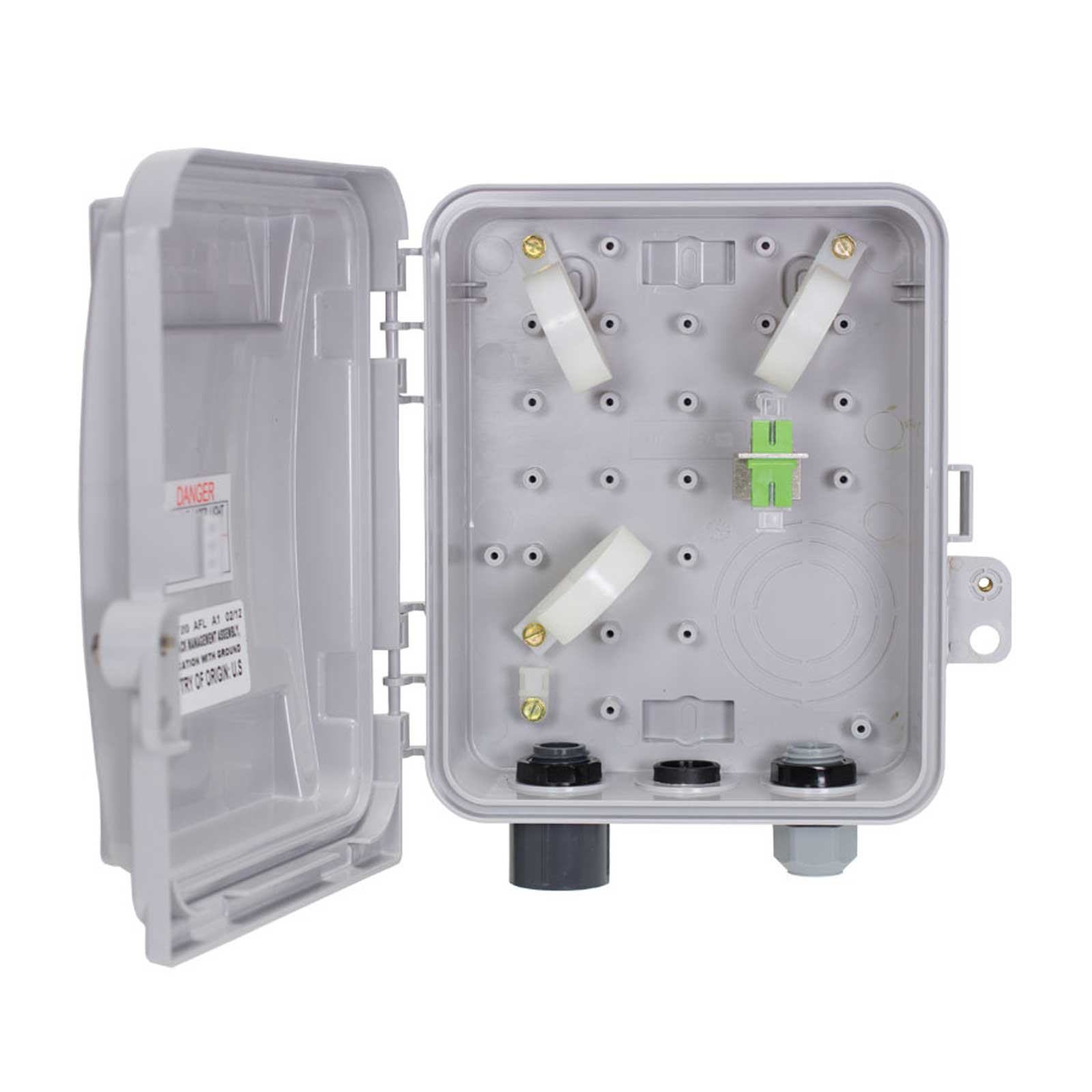

AFL OptiNID 300 Series Optical Demarcation Slack Storage Closure (OPN-327SS)
- SKU: DM000720
$26.00
- Manufacturer: AFL
- AFL OptiNID 300 Series Optical Demarcation Storage Datasheet: Download
Product Information
The OptiNID (OPN) 300 series are optical demarcation closures designed for use in either indoor or outdoor environments. Smaller to suit FTTH demarcation applications and versatile to suit CAT5 or coax connections, the OPN-327SS and the OPN-350SS are equipped to handle up to two adapters each. Configured with routing rings positioned to accommodate safe slack storage, the OPN-300 series closures can be either wall or pole-mounted for ease of use and accessibility.
Product Features- Weather-resistant thermoplastic alloy
- Self-latching, hinged cover design allows easy access without loose parts
- Routing rings positioned for safe slack storage
- Capacity for up to two adapters
- Ground stud provided in the OPN-350SS
- AFL OptiNID 300 Series Optical Demarcation Slack Storage Closure (OPN-327SS)
Specifications
| Dielectric Strength | Minimum 2500 Vrms for 1 minute |
| Impact Test | -40 degrees F (-40 degrees C), 5 ft*lbs on all external surfaces |
| Drop Test | -40 degrees F (-40 degrees C), 5 ft onto concrete surface four times |
| Rain | 24 hours at 10 psi |
| UV Resistance (Days Exposed) | 60 per ASTM-G26-84 |
| Salt Fog (Days Exposed) | 60 per ASTM-BLL7-90 |
| Flammability | UL94-5V |
| Chemical Resistance 30 Days at 100 degrees F and 95% RH | Resists chipping and/or cracking when subject to house paint, wasp spray, sulfuric acid, kerosene and sodium hydroxide |
| Material | UL listed flame retardant thermoplastic alloy |
| Dimensions (H x W x D) in. (cm) | 6.3 x 7.8 x 2.0 (15.7 x 19.7 x 5.0) |
| Cable Entrance in. (cm) diameter - Input | 1 x 3/4" NPT (1.130"), 2 x 1/2" NPT (0.875") |
| Covers | Standard, molded-in snap finger and "F" termination |
| Operating Temperature Range – F (C) | -40 to 140 (-40 to 60) |
