Product Information
ALGcom 37030030003

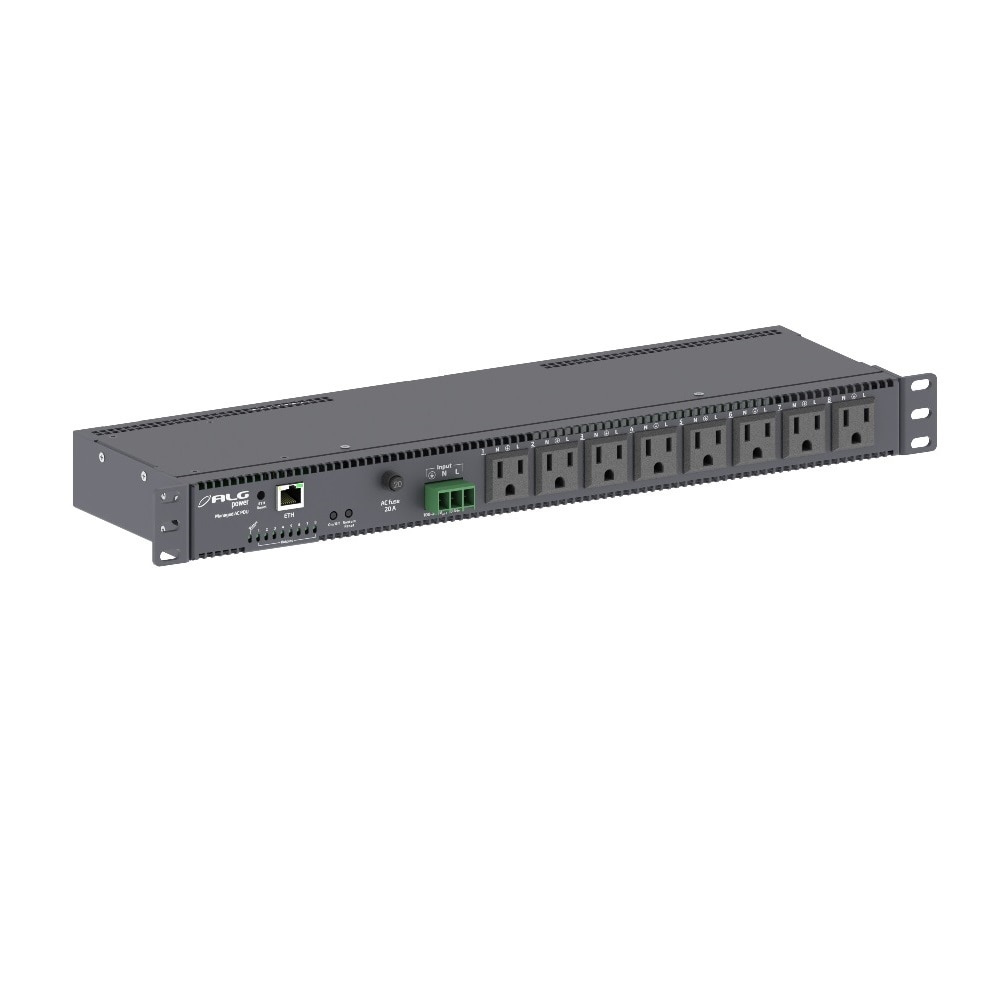

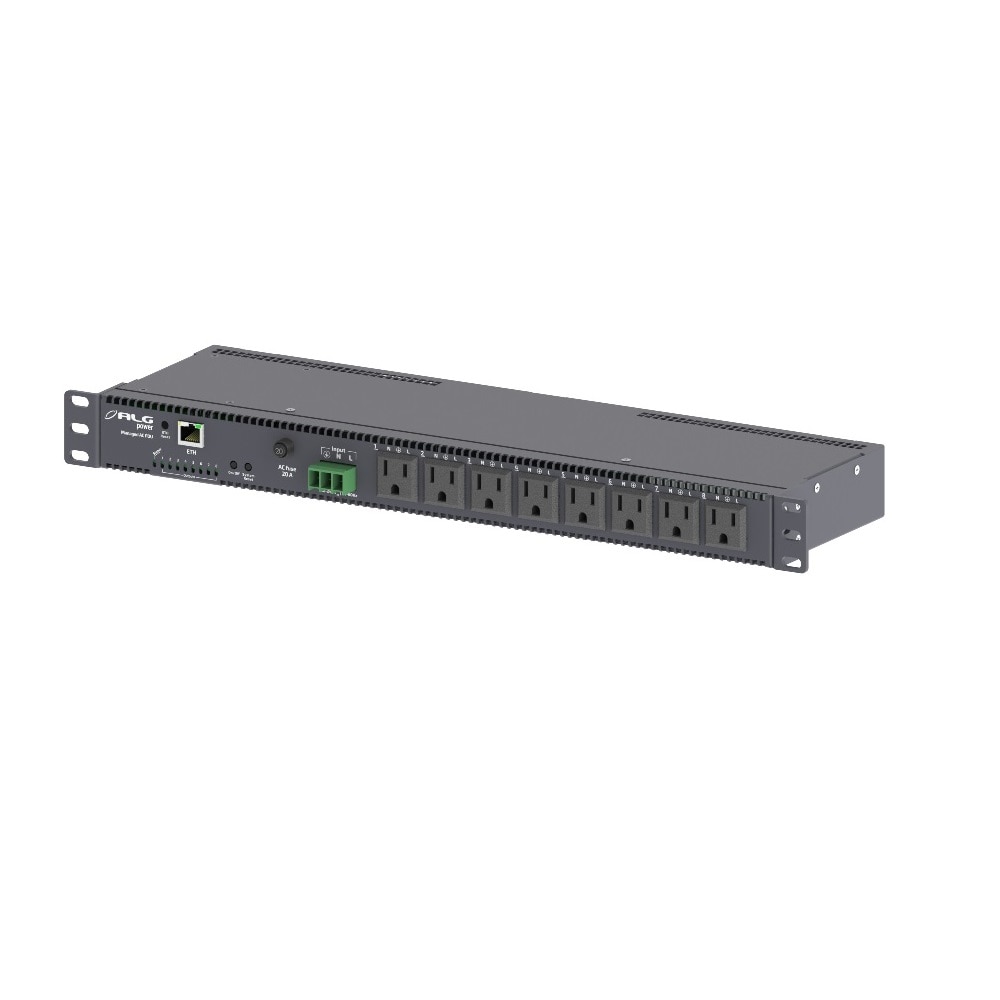

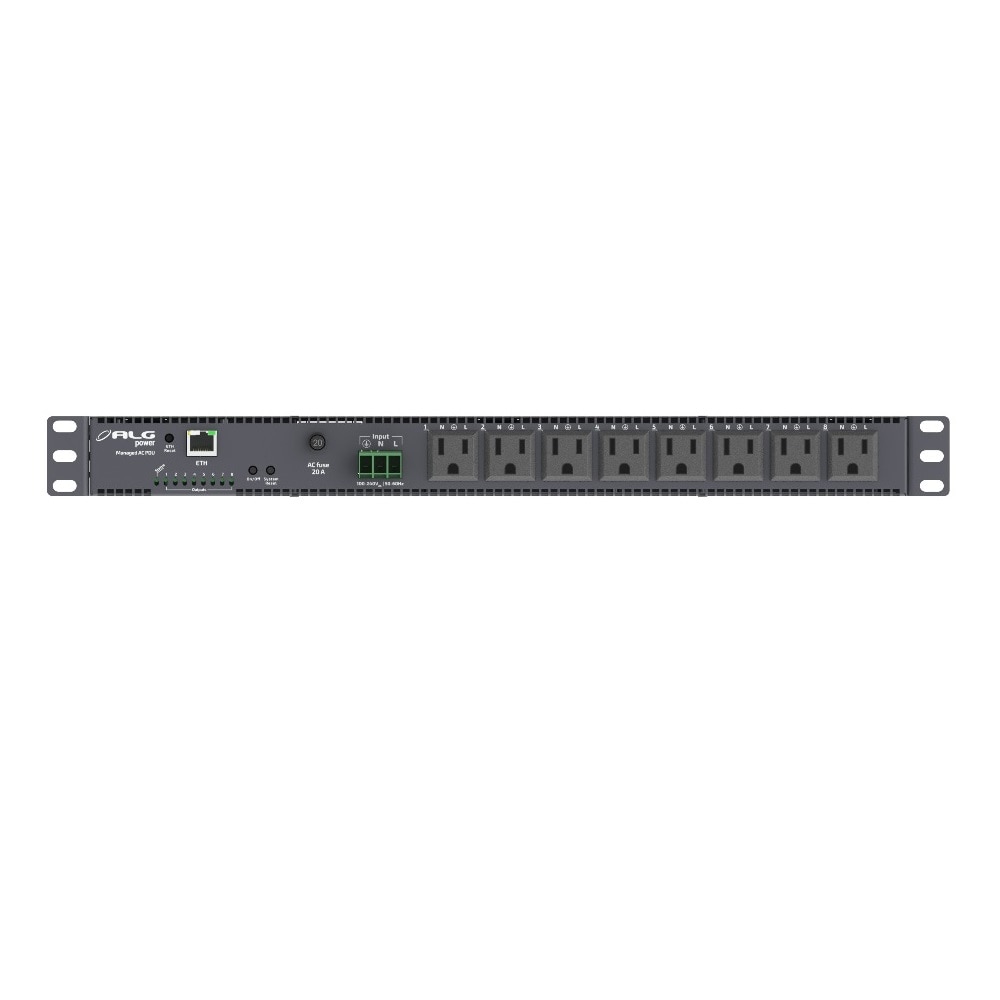

Managed AC PDU
The Managed AC PDU serves as an alternating current power distributor, offering 8 outputs, each with a capacity of up to 10 A and a total device limit of 20 A. It operates within a range of 85 to 270 VAC when connected to the electrical grid.
PDUs feature robust outputs with protection against short circuits and overloads. Additionally, the Managed PDUs include alarms and indicator LEDs for each output, creating a continuous monitoring system. This ensures proactive measures are taken before potential issues become critical, keeping your infrastructure protected and in continuous operation.
Remote management and monitoring play a crucial role in these products. The models include a secure and user-friendly interface through a web browser, providing remote power monitoring, displaying information on voltage, current, and power for each output, alarms, and control of operations through an Ethernet connection, along with SNMP support for integration into your network management system.
Each output can be remotely turned on and off, allowing real- time adjustments to power distribution as needed. Scheduling activations by time and day of the week is also possible. The customization of output settings is an additional benefit; for instance, it is possible to program undervoltage shutdown, gradually turning off less critical outputs and directing power only where necessary.
Features:
- Input Voltage of 85- 270 VAC.
- Total Capacity of 20 A that can be divided into 8outputs.
- Each Output Supports up to 10 A.
- Ethernet for Remote Monitoring via SNMP-V2 and Control through Web Page.
- Compatible with Monitoring Systems such as Zabbix, Grafana,LibreNMS, The Dude, among others.
- Voltage, Current, and Power Measurement Systemper Output.
- Remote Activation of Outputs.
- Alert Monitoring via Web Page (Overcurrent, Overvoltage, and Undervoltage).
- Up to 10 Schedule Activations per Time and Day of theWeek;Watchdog for Automatically Restarting up to 10Devices.
- Undervoltage Shutdown Programming, GraduallyTurningoffLess Critical Outputs.
- Indicator LEDs for Individual Operation per Output.
- Local Manual Control for Turning Outputs On/Off.
- Robust Terminal Input Connectors on the Front Panel.
Applications:
- CriticalPower Loads.
- TelecommunicationNetworks.
- DataCenters.
- RenewableEnergy Systems.
- Alarm Systems.
Specifications
Specifications 37030030003
| INPUT | |
| Input Voltage (Range) | 85 – 270 VAC |
| Frequency | 50/60 Hz |
| Input Current | Up to 20 A |
| Connection | Terminal block for wires up to 4 mm2 , compatible with tubular terminal. |
| Input Protections | 20 A input circuit breaker for short-circuit and overload protection. |
| OUTPUT | |
| Output Voltage (Range) | 85 – 270 VAC |
| Current per Output | Up to 10 A |
| Total Outputs | 8 |
| Connection | Standard 10A NBR14136 Outlet Standard NEMA 5-15R Outlet |
| Output Protections | 20 A Input Circuit Breaker. |
| Disconnects the PDU for Overcurrent, Overvoltage, and Undervoltage (User-defined ontheWebPage). | |
| MANAGEMENT INTERFACE | |
| Ethernet | 10/100 Mbps |
| Suported Protocols | TCP/IP – SNMP V2 |
| Firmware Updates | Remote update capability for the management interface. |
| Alarms | Alarms for overcurrent, overvoltage, and undervoltage on input power, overcurrent per output, and output fault. (Values can be user-defined through the Web Page) |
| Monitoring | Measurement of voltage, current, and power individually for each output, as well as the activation status. |
| Ability to customize the name of each output, facilitating the identification of connected devices | |
| Commands | Ability to send remote commands to turn on/off and restart outputs, individually and in groups. |
| Scheduling | Possibility to configure up to 10 schedule activations for outputs, to be defined by time and day of the week. |
| Watchdog | Possibility to configure up to 10 watchdogs to monitor equipment availability. If the configured watchdog criteria are met, the respective output will be restarted, and the counter incremented. |
| Automatic Load Shutdown | Each output is user-defined, with the option of manual or automatic restart. |
| Manual Output On/Off | Commands can be executed through a button located on the front panel. Pressing it allows turning on/off all outputs. |
| Manual Factory Reset | Commands can be executed through a button located on the front panel. Pressing it allows restoring network settings and operational configurations to factory values. |
| General Specifications | Managed AC PDU |
| Input to Ground Isolation | 1000 VAC |
| Output to Ground Isolation | 1000 VAC |
| Operating Temperature | -10 °C to 60 °C |
| Operating Humidity | 20 to 90% (non-condensing) |
| Alarm (Green LED) | Activated and Energized Outputs |
| Alarm (Blinking Green LED) | Failure in the Corresponding Output |
| MTBF | >120.000 hours |
| Installation Mode | 1U Height for 19" Rack Mounts |
| Dimensions (H x W x D) / Weight | 43 x 440 x 150 mm / 2,2 kg 1.69 X 17.32 X 5.90 inch / 4.85 lbs. |
